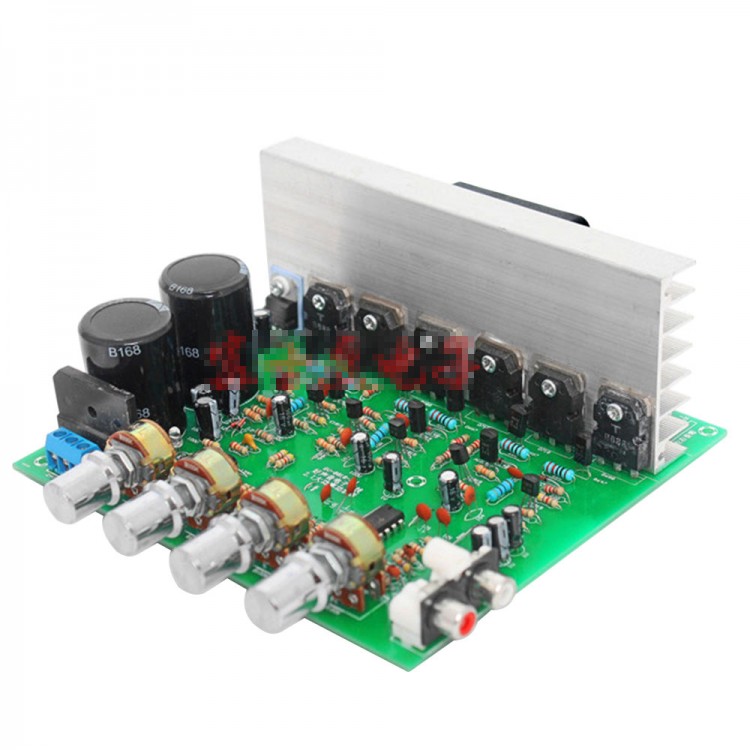

Audio 2.1 Power Amplifier Board 3 Channels 80W+80W+150W Subwoofer AMP for DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$24.13
  • Price in reward points: 241 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.65 $23.16 $22.44 $21.48 Contact US
Quantity:

Audio 2.1 Power Amplifier Board 3 Channels 80W+80W+150W Subwoofer AMP for DIY

Specification:

- Left and right channels: 80Wx2, recommended  5-8 inch, 4-8Ohm, 50-150W audio speaker.
- Bass output: 150W, recommended  6-10 inch, 4-8Ohm 60-300W  subwoofer.
- Working power supply: AC dual 15-28V transformer, recommended dual 24V,more than 150W transformer.
- PCB material: FR-4 glass fiber board, thickness: 1.6mm.
- Overall size: 143 x 130 x 58mm .
- Potentiometer center distance: 0-24-24-24mm, shaft diameter: 6MM.
- Net weight: 340g.

Features:
- 2* 50V 6800UF filter capacitors
- OP AMP TL084
- Dual channel NE5532
- Power tube: B688/D718
- Distortion: <0.01 80W 8Ohm
- Voltage AC double 12-28V

Package List:
- 1 x Power Amplifier Board
