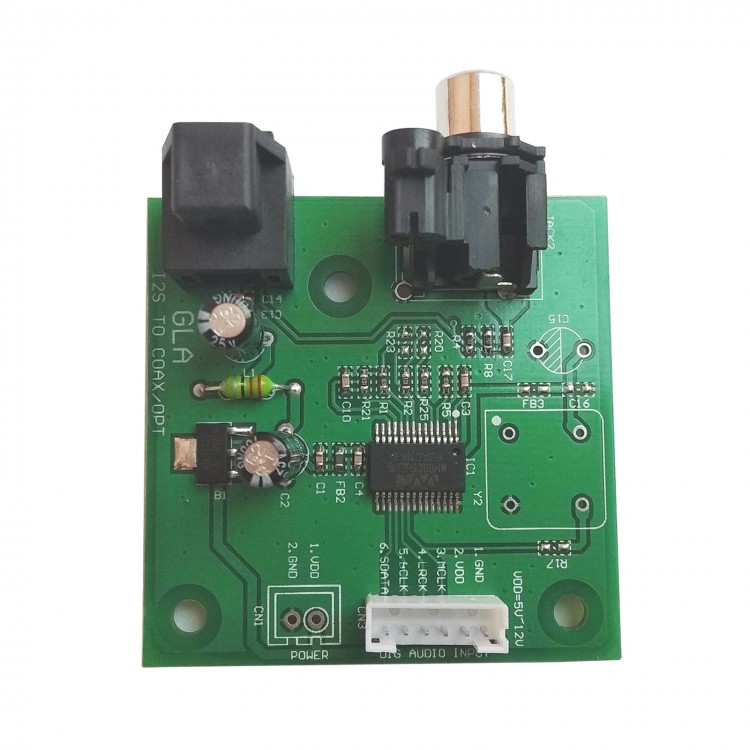

Audio Board I2S Input To SPDIF Coaxial Output Optical Output Board Support Sampling 44.1K-192K
Description:
It fits and adds coaxial or optical output for your machine without coaxial output. It is powered by 5-12V. I2S input data format is adopted by default.
Package Included:
- 1 x Board

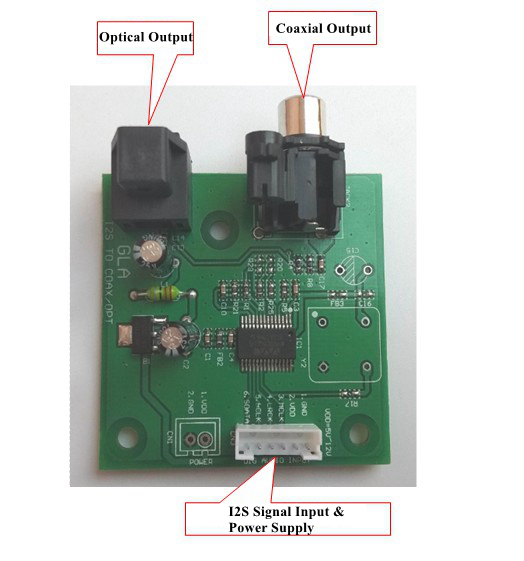

Interface Introduction:
The pins in the CN3 socket need to be connected to machine, and the functions are as follows. Other sockets do not need to be connected to the machine.
Pin 1----->GND ground
Pin 2----->VDD, for 5V to 12V DC power supply
Pin 3----->MCLK main clock input
Pin 4----->LRCK left and right clock input
Pin 5----->BCLK bit clock input
Pin 6---->SDATA data input
