| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $359.94 | $352.60 | $341.58 | $326.89 | Contact US |

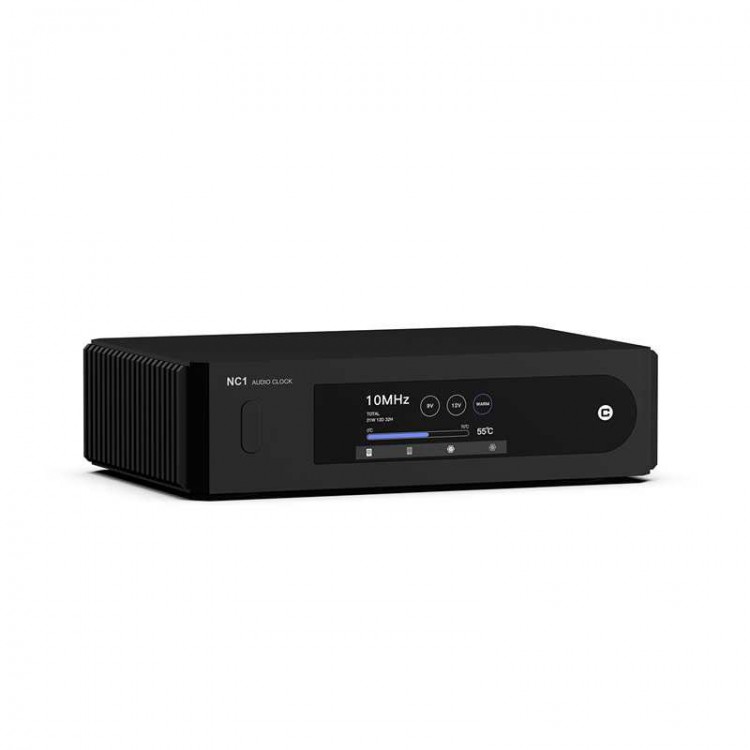

AUNE NC1 HiFi Audio Clock 10MHz OCXO Linear Power Supply All-in-one Lossless Music Femtosecond Decoding
Description:
- The NC1 audio clock uses OCXO technology to control the core temperature fluctuation within ±0.01℃, providing a stable timing reference for other audio devices, helping to accurately restore each sampling signal, greatly reducing digital glitches and phase errors, and reproducing hidden micro dynamics in the master band.
- Traditional audio system crystals are easily affected by the environment, resulting in unstable output signals and ultimately causing phase shifts in the output audio, sometimes fast and sometimes slow, with no beat at all. OCXO can provide a stable benchmark from the source, ensuring that the restored audio is consistent with the recording.
- The all aviation aluminum body is equipped with three-dimensional multiple isolation technology, from the recording studio to the livehouse, no matter how the environment changes, the clock signal is always pure and flawless like crystal.
- There is a low-noise transformer specifically designed for audio, which refreshes the background's perception of quietness; And there is an independent power supply design and precise filtering, allowing the Hi-End system to flow with simulated warmth like vinyl.
- It is recommended to use with N5 multimedia music player.
- The tuning is natural and rich in musicality, using reference grade equipment for on-site calibration, reproducing each frame according to the actual instrument performance and understanding based on the musical connotation.
Specification:
- Clock output frequency: 10MHz x 2
- Clock output power: 10MHz > 7dBm (50ohms)
- Clock output waveform: 2 x sinewave
- Clock frequency precision (factory): <±0.02ppm
- Clock preheating time: 5mins at basic preheating
- DC port output voltage: 9V 2.5A/12V 2A
- Environment temperature: 0℃ ~ 50℃ (15℃ ~ 35℃ is recommended)
- Product size: 208 x 160 x 63mm
- Net weight: 3.5kg
Package Included:
- 1 x Host
- 1 x AC Power Cable
- 2 x DC Power Cable
- 1 x BNC Cable
