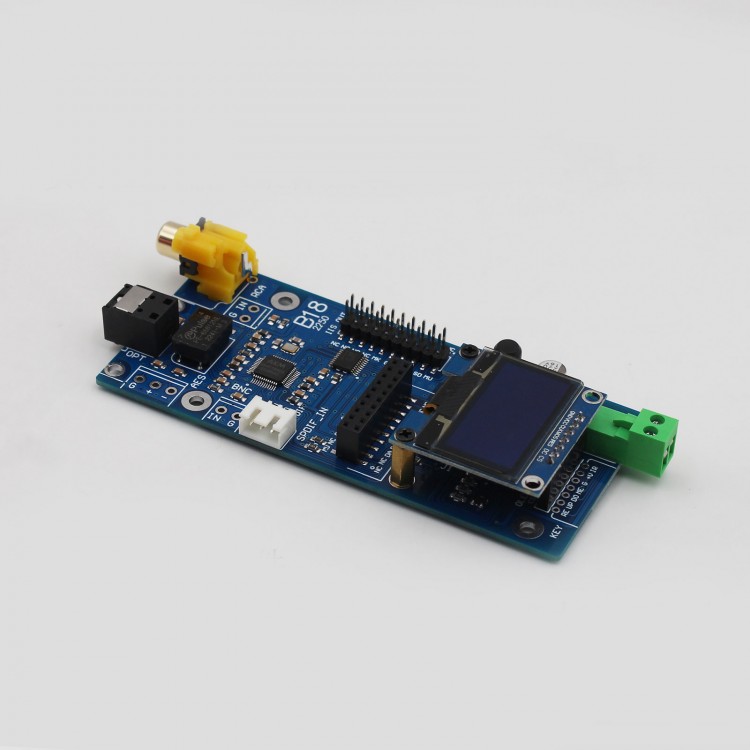

B18 Standard Version AK4118 Audio Receiver Board Coaxial Optical to IIS Support for XMOS/Amanero OLED Display

B18 Standard Version AK4118 Audio Receiver Board Coaxial Optical to IIS Support for XMOS/Amanero OLED Display

Description:
- This product adopts the core design of the audio dedicated mediation chip for AK4118, which supports 24bit 192K data reception. For AK4118 is a coaxial signal receiver, which has the title of "low Jitter" in the industry. Through the comprehensive optimization of MCU soft control, its performance is far higher than that of WM8805 DIR9001 CS8416 and other solutions. The main function of this board is to convert the digital audio SPDIF signal (BNC/RCA/optical fiber/AES/EBU) to IIS output.

Features:
- It supports 6-channel digital audio signal input, and can set 2-6-channel input combination.
- Using OLED to display the working status.
- Double-row 20-pin output interface is compatible with the output interface for Amanero USB
- Output interface has DSD_ OE and MUTE signals, which can cooperate with DAC board to realize PCM/DSD switching and mute control.
- All settings are saved automatically.
- Size: 110 x 49.5mm

Input:
- BNC / RCA / Optical Fiber / SPDIF / AES / EBU: PCM 44.1K-192K; 24Bit
- USB (for Amanero USB module): PCM 44.1K-384K; 32Bit; DSD64, DSD128, DSD256, DSD512
- Note: USB module is not included.

Output:
- PCM: 44.1K-384K
- DSD: DSD64, DSD128, DSD256, DSD512

Power Supply:
- Voltage: DC 5V, ±5%
- Recommended current: ≥100mA

Package Included:
- 1 x B18 Board

Note:
- The USB module is not included.

Instruction Video: https://pan.baidu.com/s/1FhojAER-OVHKxEpkNpfYrg?pwd=6666
