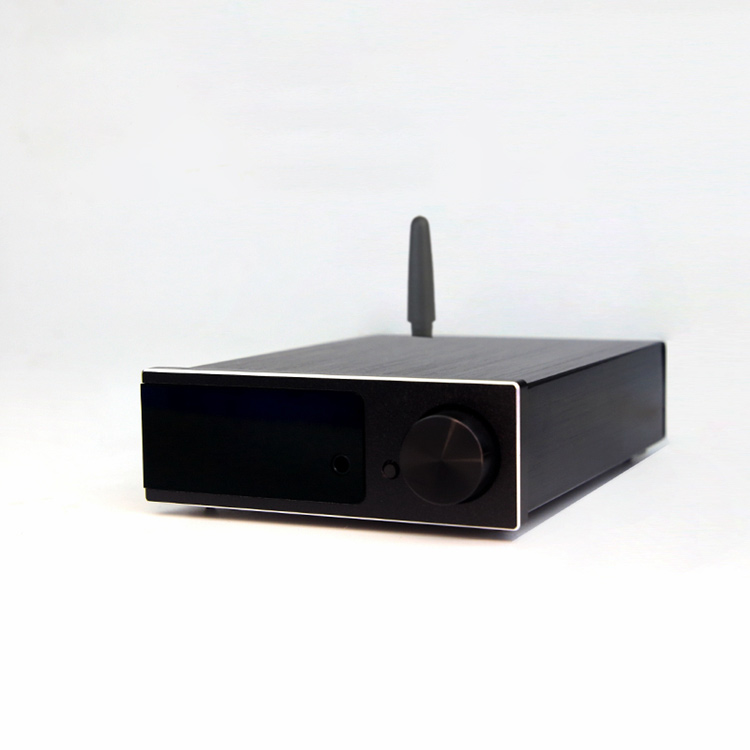

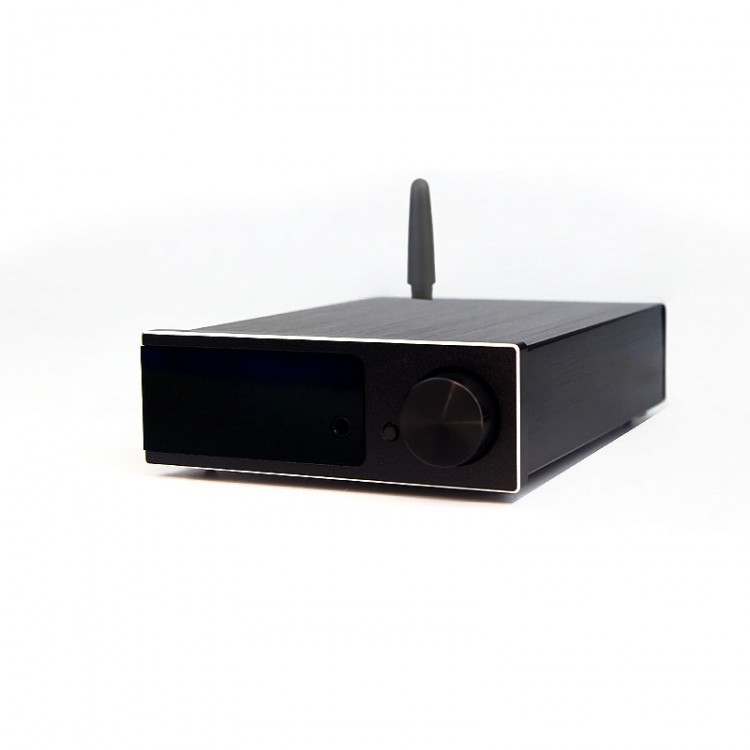

B51A Lossless U Disk Player BT5.0 ES9038Q2M DAC Headphone Amp (without Screen) for Phone APP
Quality Components:
- ES9038Q2M: American decoding chip
- After ES9038Q2M decoding, analog signal is output through RCA
- 100M gold-plated crystal oscillator: Supports a variety of packages
- Optical and coaxial output: Simultaneous output of digital signals
- Bluetooth 5.0 module: support phone APP control
- Original capacitors for Nichicon: Low dielectric loss angular filter capacitor array
- European film capacitors: I/V conversion
- Active LPF: Low-pass filtering of analog signals
- Pluggable dual op amps: for amplifying analog signals
- HF relay: solves the burst sound generated when switching songs
- Linear power supply LDO: 1117-3.3 low noise and high rejection ratio
- Intelligent software control chip: solve the impact generated when turning on/off

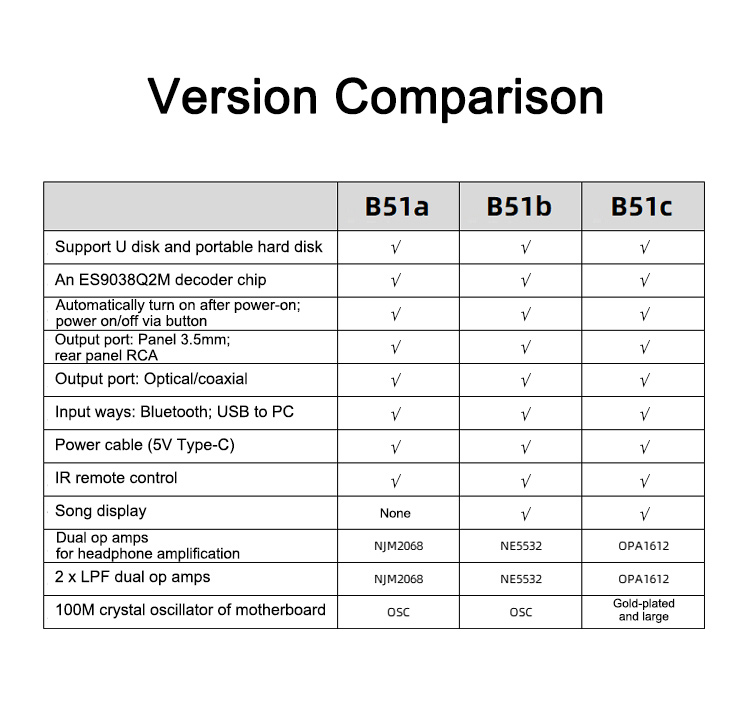

Specifications:
- Without display
- Decoding chip: one ES9038Q2M

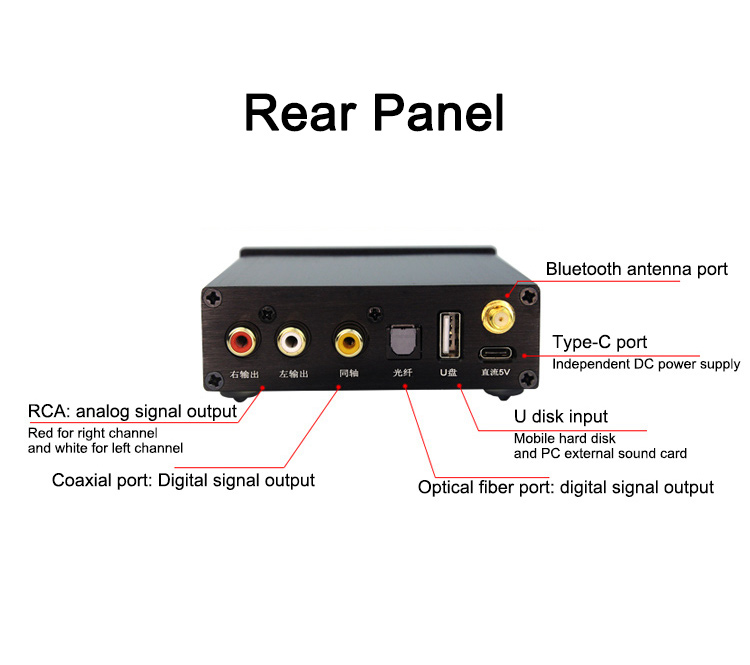

- Digital input: U disk, Bluetooth and computer
- Digital output: optical and coaxial
- Analog output: RCA and 3.5mm headphone jack
- Configuration: OSC crystal oscillator and NJM2068 op amp
Package Included:
- 1 x B51A Main unit
- 1 x Bluetooth antenna
- 1 x Power cable
Note:
- Due to the cyclical changes in electronic components, we will replace the components with the ones of the same quality.
- The pictures are for reference only. When the components of the product change, no further notice will be given. Please refer to the actual goods. Thank you for your understanding!
