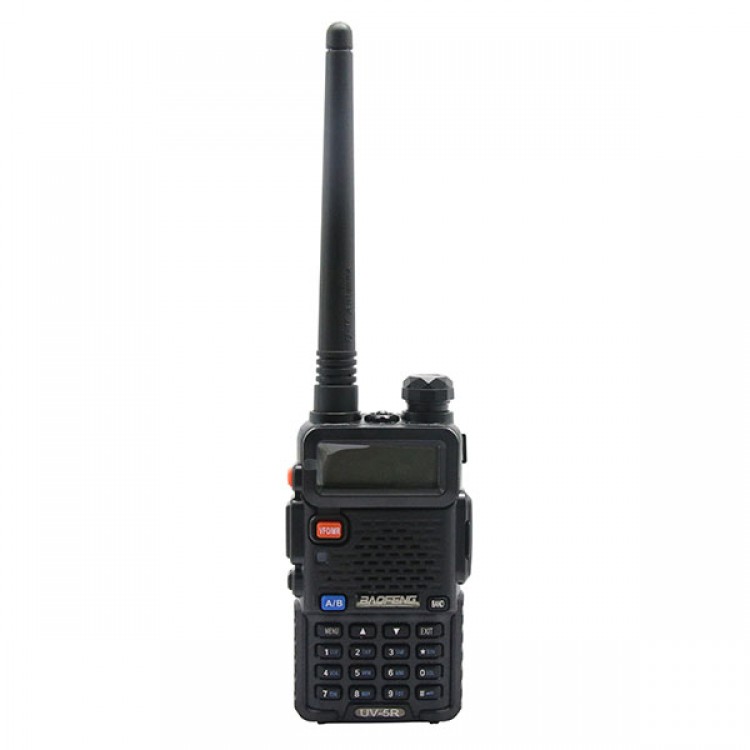

BaoFeng UV-5R 136-174/400-520MHz VHF UHF Radio DTMF Walkie Talkie UV5R Handheld Transceiver
| BAOFENG UV-5R The transcevier is a micro-miniature multiband | |
| FM transceiver with extensive receive frequency coverage, | |
| providing local-area two-way amateur communications along with unmatched monitoring capability | |
| Main functions | |
| Dual band, dual display | A/B band independent operation |
| 128 groups channels storage | Shortcut menu operation mode |
| VFO & Memory channels scan | Emergency Alarm |
| Tri-color background light selectable | 0~9 grades VOX selectable |
| PTT & ANI ID | FM radio and 25 stations storage |
| 1750Hz Brust Tone | Time-out Timer |
| Channel Monitor | Battery Saver |
| Keypad Lock | Channel Step: 2.5/5/6.25/10/12.5/25KHz |
| Low Battery Alert | ROGER SET |
| Emergency Alert | 25KHz/12.5KHz Switchable |
| FM Radio (65.0MHz-108.0MHz) | Large LCD Display |
| LED Flashlight | Hight /Low RF Power Switchable |
| Voice companding | 50 CTCSS/ 104DCS coder & tone searching |
| dual standby | PC programmable |
| Wide/Narrow Band(25kHz/12.5kHz) | Transmitter time-out timer(TOT) |
| High/Low TX power selectable | Busy channel lock-out(BCLO) |
| Specifications | |
| General | |
| Frequency Range | 65-108MHz(FM Receive only) |
| 136-174MHZ and 400-520HZ (TX/RX) | |
| Channel No. | 128 |
| Frequency Stability | ±2.5ppm |
| Antenna | High gain DualBand antenna |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 7.4V |
| Mode of operation | Simple or semi-duplex |
| Dimension(W x H x D) | 100 x 52 x 32 mm |
| Weight | 250g(including battery, antenna) |
| Antenna : | SMA -Female |
| Earpiece / mic type : | Kenwood Plug type |
| Transmitter | |
| Output power | 4W / 1W (Max 5W) |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum deviation | 5kHz(Wide) / 2.5kHz(Narrow) |
| Spurious Radiation | 7μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | ≤1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | ≤10% |
Package contents:
- 1 x UV-5R radio (VHF 136-174 UHF 400-520Mhz)
- 1 x 7.4V 1800mah Battery Pack
- 1 x Dual Band Antenna
- 1 x Belt Clip
- 1 x English Manual
- 1 x Desktop Charger ( 100V ~ 240V ) with correct plug for your country
- 1 x free earpiece
