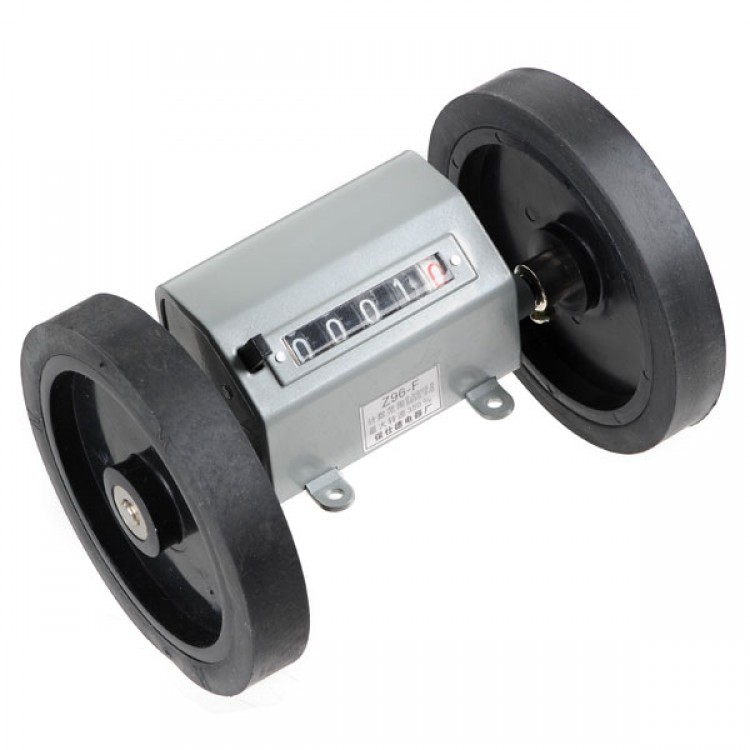

Baoshide Z96-F Length-Measure Counter Meter
Description:
- Z96-F, Length-measure counter, a five-digit counter, measures the length of the article via accumulating The machinery contact between the running wheel and the object. It refers to measure The length of the article in textile machinery, printing, plastic film and Synthetic leather industry.
- The counter has five digits, when the recorded length (the length of the article) Is 1 meter, the wheel of the counter turns 3 rounds, and the number on the counter Would be 1, and accordingly, once the number in one digit accumulates to 10, And the second digit would be 1.
- It has reset design, which adopts rolling device, turn one round, and all the numbers Will be 0, and the counting start again.
- Z96-F-type rolling counter is used to measure the length and various mechanical drive recorder, generally used in textile, printing and dyeing, plastic film, artificial leather and other heavy volume the length of the record.
Features:
- The counter for the number five, when record length is 1m (or 1 codes) roll rotation three times, counter digital display 1, and so, every decimal, but can not reverse the count.
- The counters are reset to zero body, re-zero the use of rotary, revolution numbers are all "0", then do the second stage of the count.
Technical Specifications
- Counting range 0 -99 999
- Turn ratio: 1:3
- Maximum count rate: 200 beats / min
