Product Description

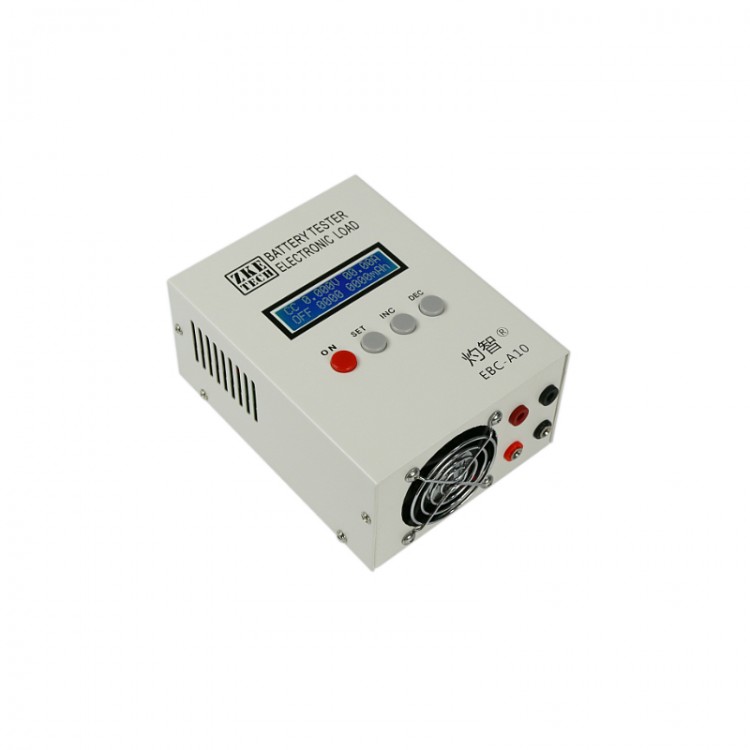

- EBC-A10H is an electronic load with charge & discharge function, suitable for various types of battery charge and discharge capacitance test, power bank and power discharge test, charger power performance testing, support for connecting the computer, through the online software with more extensions.
Package list:
- 1 x tester
- 1 x connection cable
- 2 pairs test clip
- 1 x 19V 4A power supply
Product Parameter
Power supply: DC19-20V, above 4A
Voltage setting: Discharge: 0.00-30.00V, the minimum step 0.01V
Charge: the highest voltage is the power voltage-2V, the minimum step 0.01V
Current setting: Discharge: 0.05-10.00 Minimum step 0.01A (power limit automatically when limiting)
Charge: 0.05-5.00A Minimum step 0.01A (maximum current is affected by supply current)
Discharge mode: DSC-CC: Discharge current is constant, used to test battery capacity or supply current
DSC-CP discharge power is constant, used to simulate constant power equipment or test power
Charging mode: standard charge: support nickel-metal hydride, nickel-chromium, lithium, iron lithium, lead acid
CHG-CV: custom constant current constant voltage charging, only for batteries
Automatic charging & discharging: support automatic charging - discharge - charging mode, used to test battery capacity
Voltage test: 0.000-4.500V (low pressure) accuracy to 0.003V, error ±0.5%
4.50V-30.00V(high presure) accuracy to 0.01V, error ± 0.5%
Current test: 0.05-10.00A, accuracy to 0.005A, error ± 0.5%
Capacity test: 10Ah, the resolution of 0.001Ah
10AH-100Ah, the resolution of 0.01Ah
above 100Ah, the resolution 0.1Ah
Connection: four-wire detection, voltage and current channel separate wiring, to ensure measurement accuracy
LCD display: voltage, current, capacity, time, power, energy test data
Computer Online: dedicated USB to TTL serial port (Mini USB port, not an ordinary USB cable) computer control, curve plotting, calibration benchmarking, firmware upgrade, cycle charge/discharge etc.
Tips: A+ V+ connected to the battery positive, A_V_connected to the battery negative
