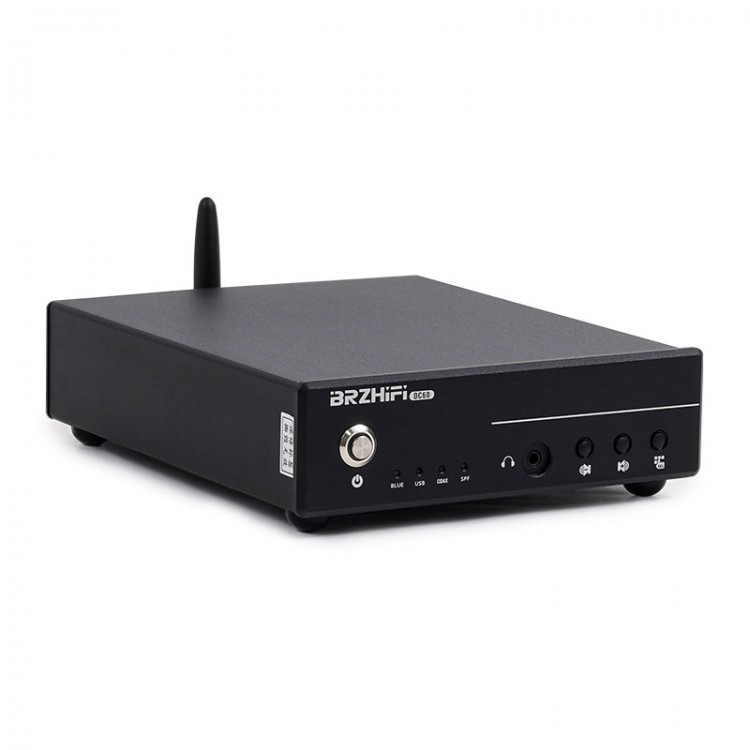

Black BRZHIFI DC60 DAC Audio Decoder 4-Core PCM1794 Parallel Connection HiFi Headphone Amplifier Bluetooth5.1

Black BRZHIFI DC60 DAC Audio Decoder 4-Core PCM1794 Parallel Connection HiFi Headphone Amplifier Bluetooth5.1

Features:
- PCM1794A has a warmer and thicker vinyl style than the ES9038 and AK449X series. With a dynamic range of up to 129db and THD+N distortion as low as 0.0004% (PCM1794).
- Coaxial, fiber optic, and USB all support 192K 24BIT transmission. Bluetooth adopts for Qualcomm’s high-precision Bluetooth5.1 chip for QCC5125, which supports true lossless transmission for LDAC and for APTX-HD.
- Note: the volume button and composite up/down button of DC60 PCM1794 only work in Bluetooth mode. Coaxial, fiber optic and USB do not equipped with volume control, which can be adjusted separately from a computer or amplifier.
- For Amanero digital interface, adopting ARM + CPLD architecture, USB-2.0 high-speed transmission of 480MB/S, asynchronous USB to IIS PCM, professional audio architecture, has relatively reasonable and efficient audio quality.
- The Bluetooth solution chip of this product adopts the most excellent QCC5125, which supports for APTX, for APTX-HD, and for LDAC, and supports 24BIT 96K.
- Four PCM1794 decoding chips with up to 8 channels of output, effectively improving the resolution and thickness of sound.
- The LPF low-pass filtering circuit is composed of 6 JRC5534 single operational amplifiers, making the sound durable and natural.
- Adopting sealed high-power pure copper ring transformer, with low magnetic leakage and high efficiency. The stable circuit has a multi-level power supply circuit and multi-level waveform reduction and voltage stabilization.
- AK4117 fiber coaxial receiving chip has strong compatibility and applicability, and stable fiber/coaxial signal transmission.
- TV connection with amplifier/speaker: The TV is connected to the decoder through a fiber optic or coaxial interface, and then connect the decoder to the amplifier or active speaker.
- It can be connected to a computer, mobile phone Bluetooth, with automatic memory function. After successful initial installation, it can be automatically connected next time.

Specification:
- Model: DC60
- Input: Bluetooth5.1/USB/Optical Fiber/Coaxial/Type-C
- Output: RCA/3.5mm headphone
- Bluetooth format: for SBC, for AAC, for APTX, for APTX-LL, for APTX-HD, for LDAC
- Bluetooth chip: for QCC5125
- SNR: 128dB
- Distortion: 0.0001%
- Sampling rate: optical fiber/coaxial/for Amanero USB 24bit/192KHz Bluetooth/Type-C USB 24bit/96KHz
- Power: AC220V (110V optional)
- Decoding chip: for PCM1794 x 4
- Operational amplifier chip: for JRC5534 x 6
- Product size: 45 x 157 x 188mm
- Product weight: 1.1kg

Package Included:
- 1 x Host
- 1 x USB Cable
- 1 x Signal Cable
- 1 x User Manual
- 1 x Warranty Card
