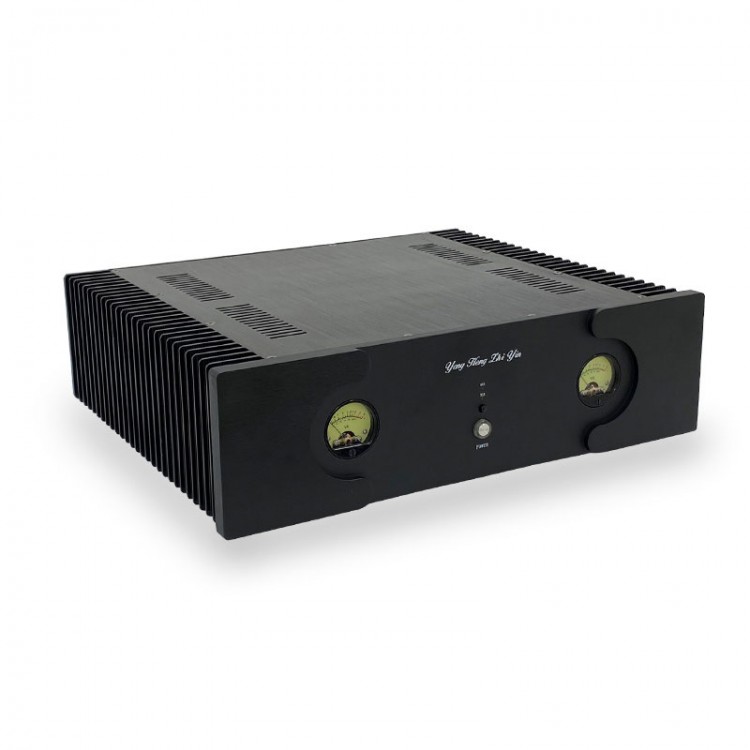

Black X2PRO American Version Class A High Power HiFi Audio Power Amplifier 80Wx2 Pure Rear Amplifier

Black X2PRO American Version Class A High Power HiFi Audio Power Amplifier 80Wx2 Pure Rear Amplifier

Features:
- All aluminum alloy CNC carved body, high-end and luxury.
- Large Class A power amplifier dedicated heat sink, with good and stable heat dissipation.
- Imported classical pointer dual meter, dynamically observable output power.
- Pure copper gold-plated input/output socket, high fidelity lossless transmission.
- Imported high-power dual ring transformer, noise free, clearer sound output.
- Imported HiFi grade 160000uF filtering capacitor, powerful bass.
- Adopting 16pcs original imported sealed tubes for ONSEMI.

Material Details:
- Adopting 16pcs original sealed tubes for ONSEMI, the gold sealed tubes have transparent sound, warm and sweet taste, good heat dissipation, and stable performance. The power tubes of the whole machine are strictly screened, precisely matched, and the error is controlled within 0.01%.
- The rectification and filtering circuit is a very important part of the power amplifier, which has a great impact on the sound. The X2PRO adopts a 160000uF imported HiFi audio capacitor, combined with a fast rectifier tube, to provide clean, stable and sufficient power for the amplification circuit. The high frequency is delicate, transparent and clean, and the low frequency is deep and powerful.
- The ring transformer provides power supply for the entire amplifier circuit, and its performance directly affects the sound quality effect. It can be seen that power is very important. The X2PRO uses two imported specially made ring transformers, which have high power and no noise, rich sound details, and deep bass.
- The input interface supports two input methods: balanced input and RCA input. The balanced circuit is processed with an imported HiFi chip and matched with a gold-plated input socket to ensure lossless transmission, zero low noise, and high fidelity sound playback.
- X2PRO has designed a comprehensive protection circuit, soft start protection, delayed start protection, overheating protection, overload protection, output short circuit protection, etc. It uses imported chips to protect the speaker unit and also better protect the amplifier.

Specification:
- Model: X2PRO
- Class A output power: 80W + 80W (8ohms); 160W + 160W (4ohms)
- Class AB output power: 300W + 300W (8ohms); 500W + 500W (4ohms)
- THD+N: 0.005% (8ohms load)
- Damping coefficient: 800 (8ohms load, 50Hz)
- Frequency response range: 5Hz - 88kHz
- Input impedance: 40Kohms for balanced input; 20Kohms for RCA input
- Output impedance: 2 - 16ohms
- Gain power: 52dB
- SNR: 148dB
- Power supply requirement: AC 220V/110V (optional)
- Static power consumption: 130W
- Product size: 430 x 130 x 365mm
- Net weight: 20kg

Package Included:
- 1 x Power Amplifier
