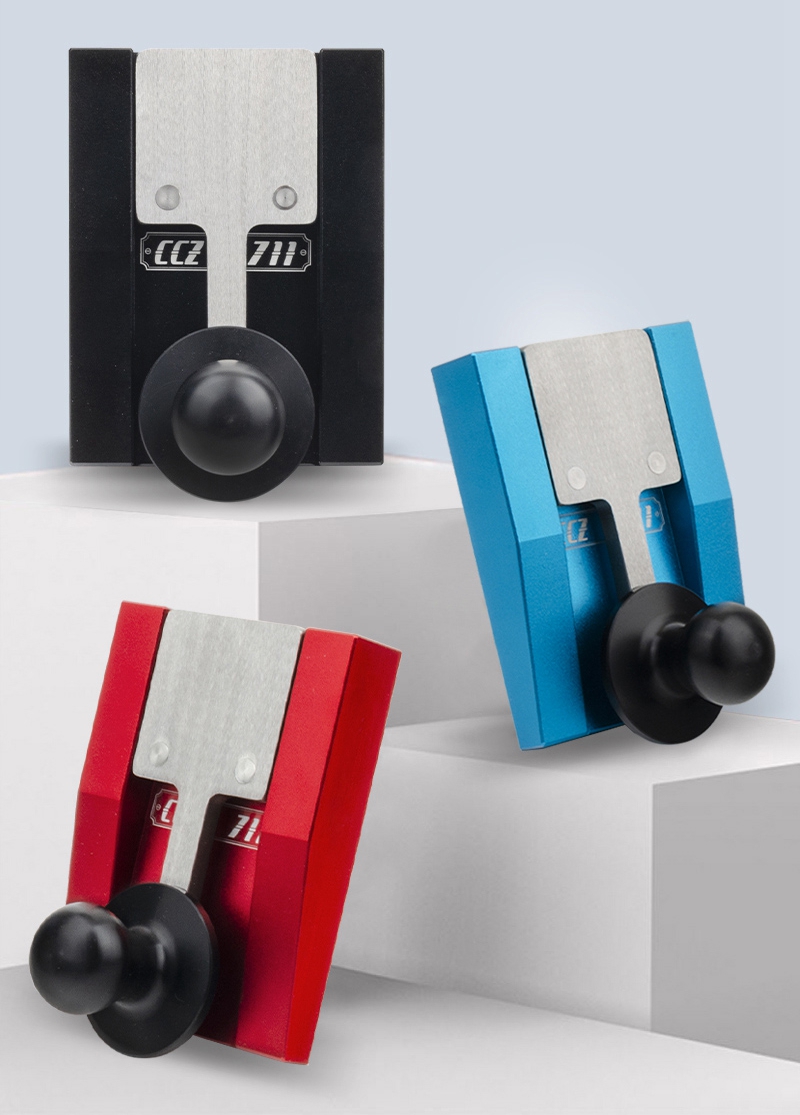

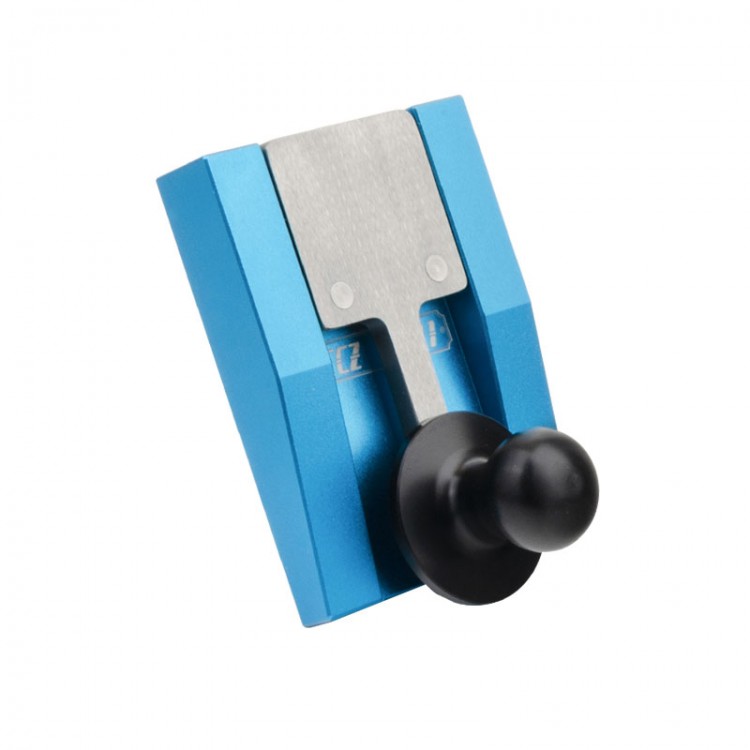

Blue Mini Portable Magnetic Manual CW Electric Key Shortwave Radio Aluminum Alloy CW Morse Key

Blue Mini Portable Magnetic Manual CW Electric Key Shortwave Radio Aluminum Alloy CW Morse Key

Features:
- The electric key adopts integral silver containing specialized contacts to ensure efficient and stable signal transmission. In response to the issue of secondary impact sound generated during contact reset, a damping ball has been specially installed at the reset fulcrum. At the moment when the lever strike triggers the reset action, the damping ball can effectively reduce the noise generated by the rebound secondary impact.
- The electric key adopts a magnetic lever design, with a unique dual magnetic circuit structure of fulcrum and torque. This design makes the electric key feel more sensitive and precise during operation. At the same time, it adopts an adhesive detachable design, which makes it easy to separate the main beam from the bottom plate by hand, greatly facilitating daily maintenance and repair. After cleaning and maintenance, easily put it back, and under the natural traction of magnetic force, the lever will accurately return to its original position.
- The main beam is designed with a closed magnetic circuit made of 440 stainless steel, which forms a magnetic yoke, allowing the closed magnetic lines to be evenly distributed and effectively focus the magnetic force. In this way, you can feel an extremely crisp sensation during the rebound moment. And during the tapping separation, the magnetic force decays rapidly, making later calibration simple and convenient.
- The bottom plate of the electric key is made of 6061 aluminum alloy material, which has undergone anodizing treatment. It not only has good wear resistance, but also gives the electric key a unique appearance texture.
- The design of the electric key fully considers the complex and ever-changing environmental factors in the wild, and is not afraid of the invasion of dust, mud, and moisture. Adopting top-notch adaptive pivot points, combined with clever top-notch joints, it is firmly attached to the base with the help of magnetic force. The base is carefully arranged with equidistant tapered holes, which cooperate with the conductive tips on the lever to form the core element of a stable joint.
- Double button mode: In order to meet the operating habits and aesthetic needs of different users, two configurations are specially provided: transparent acrylic flat keys and traditional cap buttons. Users can freely choose the installation method according to their personal preferences.
- Adopting 3.5mm audio interface, plug and play, convenient to use.

Specification:

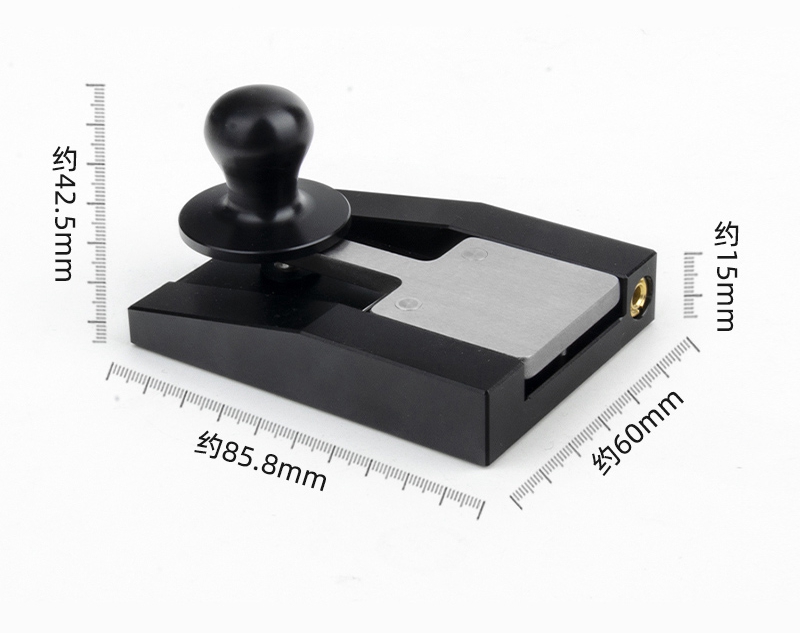

- Product size: 85.8 x 42.5 x 60mm
- Net weight: about 182g
- Output interface: 3.5mm
- Body material: aluminum alloy

Package Included:
- 1 x CW Key
- 1 x 3.5mm Adapter
