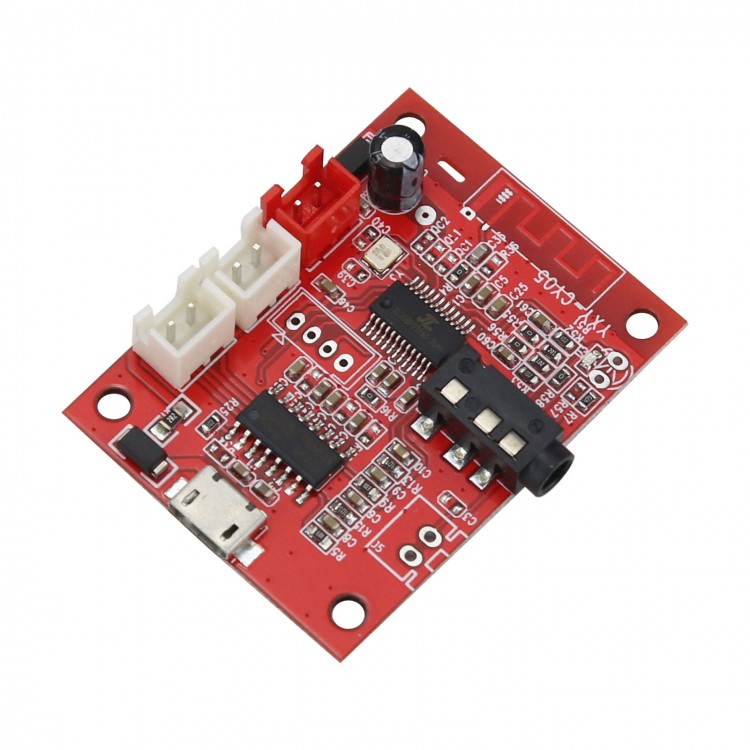

Bluetooth 4.2 Receiving Board Audio Input AUX w/ 5W*2 Power Amp 3.7V-5.3V Battery Charging Port
Description:
This board supports wireless Bluetooth audio receiving and cab be used as an audio modification board, which upgrades your product to a Bluetooth audio receiving device. It is equipped with 5W*2 power amplifier and the voltage is 3.7V-5.3V.
Specification:
Size: length 45mm* width 35mm
Weight: 0.007kg
Features:
1. Use 4.2 version specification, compatible with Bluetooth 3.0 and below.
2. Support L2CAP/A2DP (AVCTP/AVDTP/AVCRP), used to receive stereo audio signals, achieving the previous and next song operation of audio transmitter through the protocol, support pairing/automatic link function, MP3, WMA, APE, FLAC, WAV, with reserved USB port.
3. 16 bit DAC ensures high quality audio output with high signal-to-noise ratio.
4. Bluetooth receiving distance is 10m-15m; the specific distance depends on the environment.
5. With Micro USB, it can charge 3.7V-5V lithium battery.
Bluetooth Operation Instructions:
Turn on the Bluetooth setting of the mobile phone; enter the Bluetooth search state of the mobile phone, and the phone displays the name of the Bluetooth device (YXY-CY05).
Package List:
1 x Bluetooth Receiving Board
