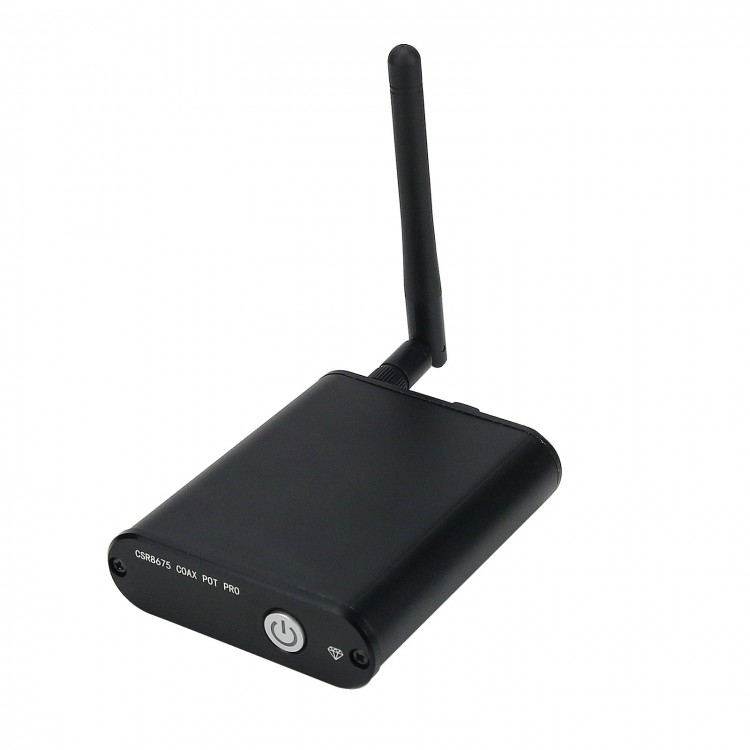

Bluetooth 5.0 CSR8675 Finished Coaxial Optical Outputs For APTX HD + Antenna (Standard Version)
Standard Version VS High-End Version:
- Standard Version: Equipped with PE65612 digital transformer, it is cost-effective and widely used.
- High-End Version: Built with DA101C digital transformer, it features less loss and high index.
Features:
- CSR8675 Bluetooth Chip: Supports for SBC/ AAC/ APTX/ APTX-LL/ APTX-HD, optical + coaxial digital audio outputs. There is no analog output. Imported CSR8675 Bluetooth controller chip keeps audio signals from being distorted in transmission.
- Bluetooth 5.0: Supports for APTX and LDAC. An external antenna ensures better performance.
- Power Supply: It can be powered via USB cable. It is easy to operate.
- LED Indicator: LED flashes slowly when Bluetooth is not connected. It flashes quickly when it is matching. It is lighted when the Bluetooth is connected.
- Automatic Matching Mode: It automatically matches when it is powered on. The matching mode lasts for 3minutes. If it takes over 3 minutes, please turn the device on again to enter into matching mode or by press PLAY button for 3 seconds.
- Support For APT-X LL: It solves latency problem and ensures stable performance of the module.
- Support For APTX HD Decoding: The audio technology ensures HD audio for wireless Bluetooth devices. During audio transmission process, it protects audio data and provide experience outperforming CD-level sound quality.
Button Introduction:
- In Bluetooth mode, short press to play or pause. Press for 3 seconds to enter into matching mode. Press for 6 seconds to clear Bluetooth list.
Parameters:
- Bluetooth Name: Bluetooth A104
- Power Supply: Via USB 5V with Current 200mA
- Bluetooth Working Distance: 10M
Rear Panel:
- Coaxial Output Interface
- Optical Output Interface
- USB Power Interface
- 2.4G Antenna Interface
Package Included:
- 1 x Bluetooth 5.0 CSR8675 Module Standard Version
- 1 x Antenna
Note:
- It is finished and ready to use.
- Optional Colors: Black, Silver. Please choose the color you want when purchasing. Thank you!
