Boscam FPV System 32ch 5.8G TS800 800MW AV Transmitter TX58-800 Audio Video Sender
KEY:
- 8 PIN :
- Blue: GND
- Black: GND
- Green: Vacant
- Yellow: Video In
- White: Audio In
- Brown: Power Out (+7V~+25V)
- Red: Power In (+7V~+25V)
- Purple: Poewr In (+7V~+25V)
Description:
- Brand Name: Boscam
- Item Name: 5.8G 32ch TS800 800MW AV Transmitter
- Item NO.: TX58-800
- Working frequency: ISM 5.6GHz-5.95GHz 32 CH
- Video input: 75Ω/1Vpp
- Audio input: 10KΩ/1Vpp
- TV System: PAL/NTSC/SECAM (AUTO)
- Size: 50x35x9mm
- RF Power output: 800MW
- Channel: 32
| groupCH | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| A group | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B group | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| C group | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| D group | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Group: Short press button to select a different frequency groups, namely A,B, C, D.
Channel: Short press button to select a different channel , 1 -- 8 .
Features:
- 800MW RF Power output
- High brightness LED display
- Not affect by 2.4GHz R/C Radios
- Small size, light weight, easy to carry
Package Included:

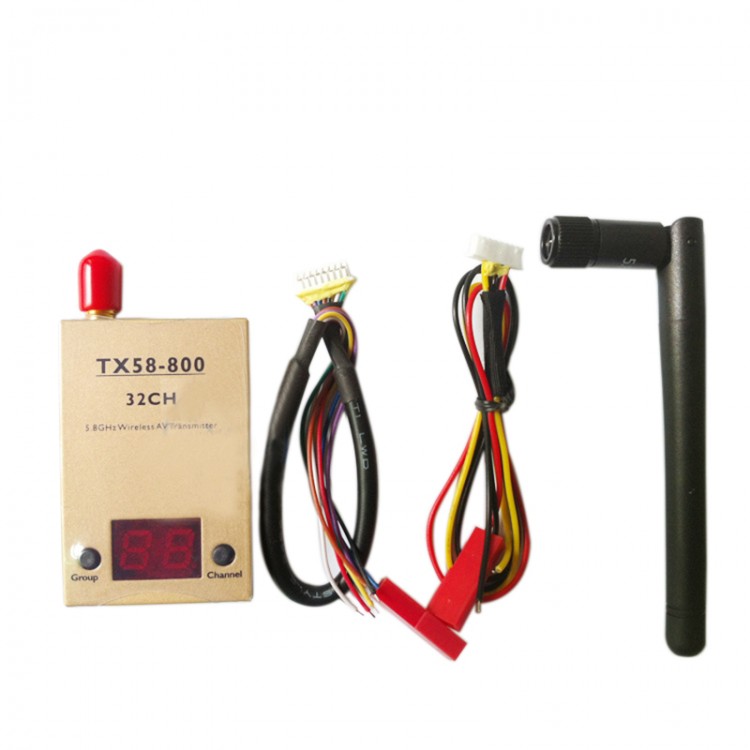

- 1 x Boscam TS800 800MW Transmitter
- 1 x Antenna
- 1 x power
