BRZHIFI BT20 Bluetooth 5.0 Receiver DAC Audio Receiver CSR8675+ES9038 For LDAC Stereo Sound Silver

BRZHIFI BT20 Bluetooth 5.0 Receiver DAC Audio Receiver CSR8675+ES9038 For LDAC Stereo Sound Silver

Features:
- Professional audio receiving and decoding solution.
- ES9038Q2M+CSR8675.
- High-quality decoding, support for DAC+APTX-HD & LDAC.
- All aluminum alloy shell.
- Compact size, weighs only 216g, easy to carry.
- Independent switch, volume can be adjusted.
- Status indicator accurately controls the working status of the machine. It is green when power-on. Green light flashes when it is searching Bluetooth. Green light is always on for successful Bluetooth connection. Yellow light is always on when there is HD sound quality. White light is always on when there is lossless sound quality.
- Multi-level power supply filter circuit: Greatly reduces the interference of the power supply port input power supply ripple to clock signal, thereby ensuring high-quality sound quality.
- Pluggable operational amplifier unit design: With op amp for JRC-5532DD, warm vocals and low distortion performance are welcomed by users.
- Dual voltage power supply: equipped with a positive and negative 13V dual voltage boost circuit to highlight the output performance of the op amp.
- HD lossless Bluetooth: CSR8675 supports up to 24bit/96Khz transmission sampling rate in mode for LDAC, constantly refreshing and maintaining the leading Bluetooth technology level.
- Using ES9038q2m audio decoding. Take the lead in using the professional decoding chip on the Bluetooth receiver, discarding the complicated functions of the decoder, and achieving the professional HIFI level of Bluetooth decoding.
- With CSR8675 chip, it supports for SBC, AAC, APTX, APTX-HD, and LDAC protocols, up to 24bit/48khz under protocol for APTX-HD, up to 24bit/96khz under that for LDAC, data output capability comparable to that of CD. Support connection for Android cellphones, Apple mobile phones, iPad, and various tablet computer.
- Solve problems such as short connection distance, unstable signal, poor Bluetooth sound quality, insufficient HiFi effect, poor compatibility, and incomplete protocol for 99% of users.
- Mainstream Type-C 5V power supply interface makes it fit your mobile phone charger.

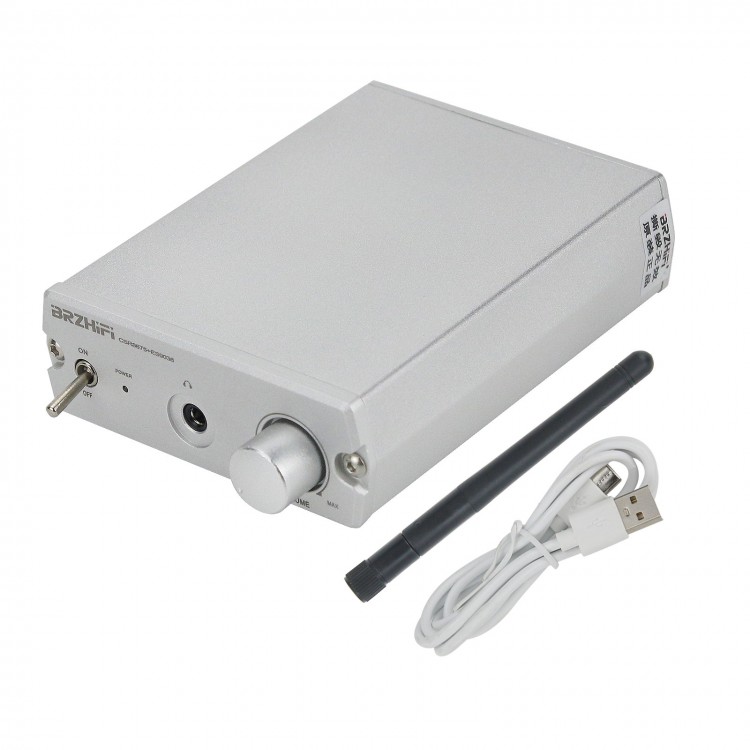

Front Panel Introduction:
- ON/OFF: Switch
- POWER: State indicator
- With AUX3.5 output jack
- VOLUME: AUX3.5 volume adjustment knob

Rear Panel Introduction:
- BLUETOOTH: Bluetooth antenna port
- COAX: Coaxial digital output port
- L, R: Dual RCA analog signal output ports
- TYPEC: PC-USB/Cellphone OTG/USB-5V; Digital decoding + power supply port

Specifications:
- Model: BT20
- Decoding chip: ES9038q2m
- Bluetooth support: For CSR8675-SBC/AAC/APTX/APTX-LL/APTX-HD/LDAC
- COAX coaxial: 24Bit-96Khz
- Op Amp: For low noise JRC-5532DD
- Support impedance: 10 ohms to 300 ohms (directly drive large headphones with high resistance)
- USB power supply: Type-C, DC 5V
- Dimensions: 85 x 107 x 33 mm
- Weight: 216g

Package Included:
- 1 x Bluetooth Antenna
- 1 x Bluetooth Audio Receiver
- 1 x Type-C USB Data Cable

Note: It is assembled and ready to use.
