BRZHIFI DP8 Bluetooth5.3 Digital Power Amplifier Stereo 50Wx2 TPA3116 Class D Amplifier Built-in Switch Power Supply

BRZHIFI DP8 Bluetooth5.3 Digital Power Amplifier Stereo 50Wx2 TPA3116 Class D Amplifier Built-in Switch Power Supply

Professional Grade Audio Solution:
- TPA3116 is an efficient D-class chip for Texas Instruments (TI), which uses digital modulation technology and full bridge output structure to provide high fidelity power output of 2x50W RMS.
- This product is deeply developed based on this chip, integrating efficient switching power supply and Bluetooth cutting-edge version 5.3 module, paired with professional grade high, medium, and low frequency adjustment circuits and aluminum alloy shielded chassis, to create an audio solution that integrates high performance, low distortion, and convenient experience.

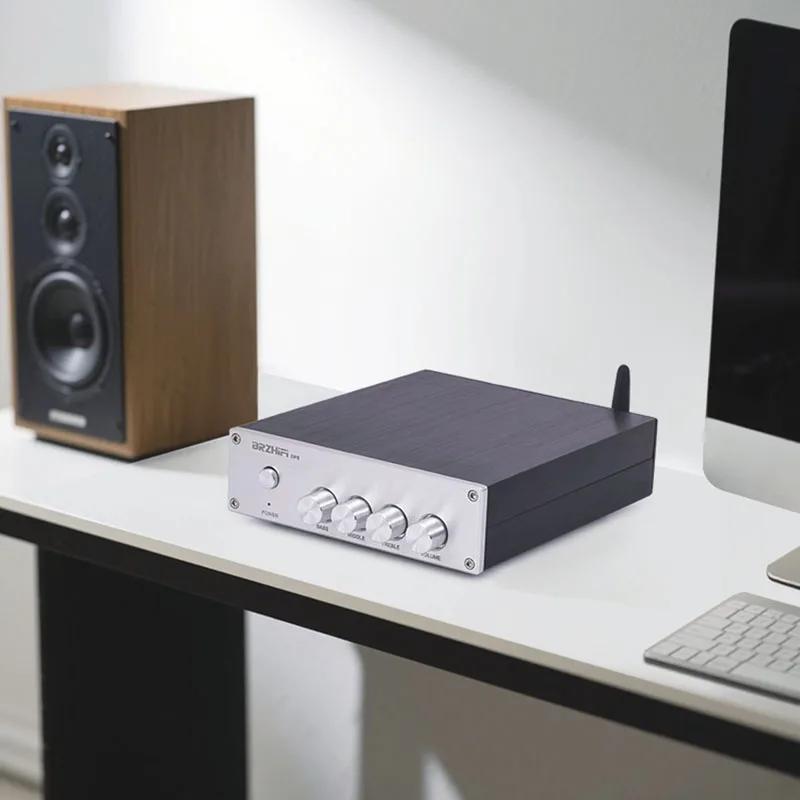

Desktop HiFi System:
- Integrated power supply design, eliminating wiring troubles, compact size, low distortion, zero background noise 50W RMS output power to drive 3-6 inch bookshelf speakers, easily meeting the listening needs of ≤ 20m^2 space.

Upgrade Lossless 5.3 Bluetooth:
- Bluetooth 5.3 not only ensures sound quality, but also has faster transmission speed, lower latency, longer distance, and stronger stability, ensuring uninterrupted listening to music. Get rid of the constraints of wired communication and enjoy the convenience brought by wireless technology.

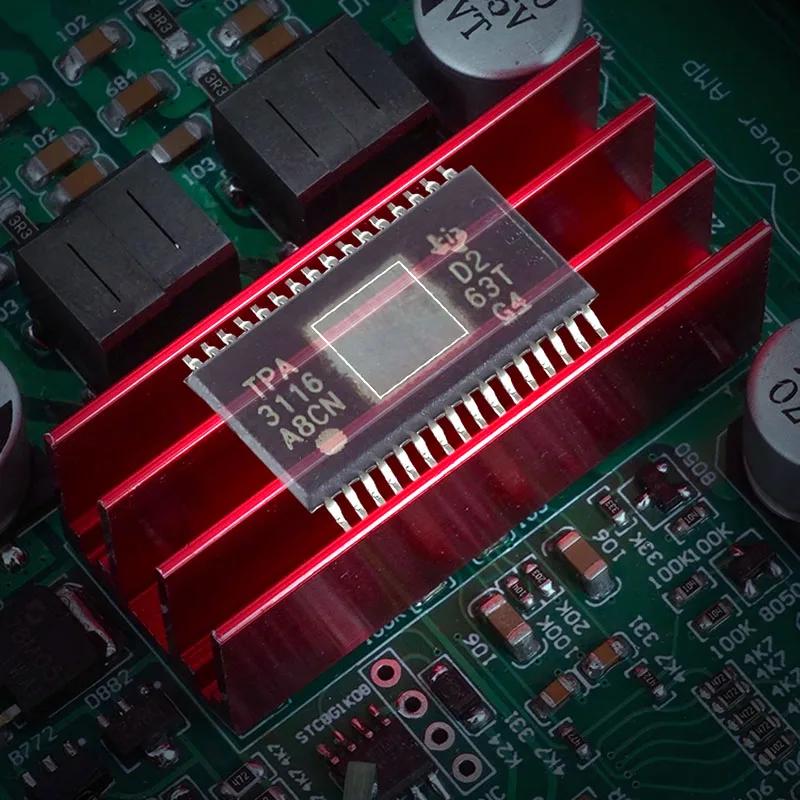

TPA3116D2 Power Amplifier Chip:
- TPA3116D2 is a D-class amplifier chip launched by TI, with a high-power output distortion of less than 0.1%. It has the characteristics of low distortion, low noise, and large dynamic range. The transparency and resolution of the sound quality, as well as the shock power of the low frequency, are all excellent. Its biggest feature is low power consumption, low heat generation, compact size, and no space occupation. It is currently becoming the mainstream of modern household amplifiers, and is also widely used in car amplifiers.

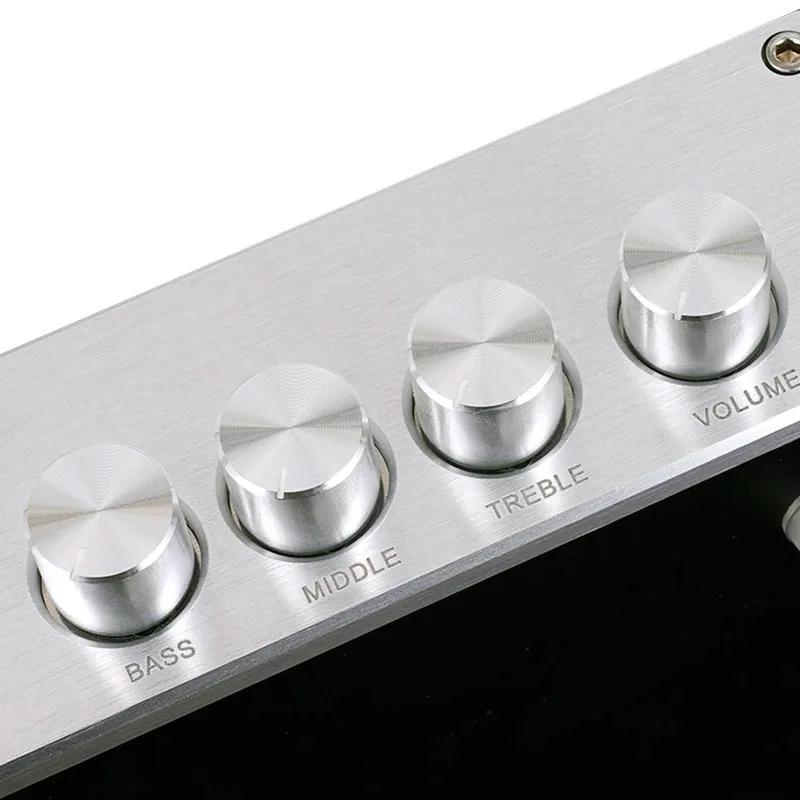

Treble/Mid/Bass Adjustment:
- Supports three-stage high, medium, and low frequency adjustment, with independent volume control for powerful output power. Paired with an independent control knob, it brings you a more stunning low-frequency effect and restores the authenticity of the scene.

150W Full Power Supply:
- We have independently developed a dedicated high-power power supply with a unique three-level filtering protection output and feedback correction design. According to the power and sound volume of the user's speaker, the variable infinite adjustment ensures fast response at high power output and reduces temperature consumption, which is energy-saving and environmentally friendly.

Core Architecture Analysis:
- Solid materials and professional grade music restoration chips, operational amplifiers, capacitors, power supplies, heat sinks, and other accessories are carefully selected to provide you with a satisfactory 2.0 channel digital amplifier.

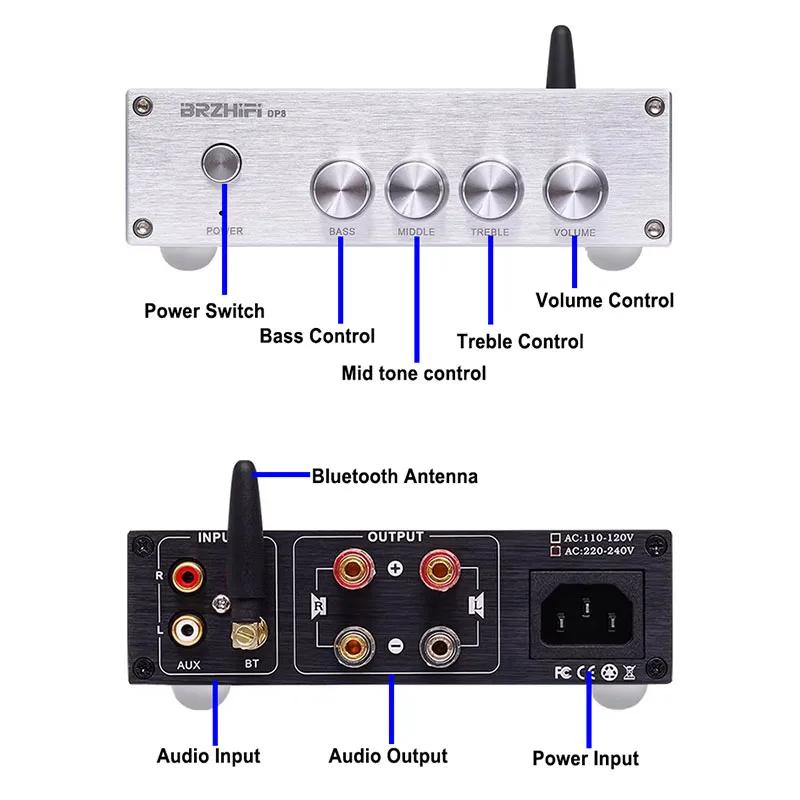

Device Connection Indicator Diagram:
- Independent function identification is clear and easy to use, suitable for connecting multiple devices.

Specification:
- Model: DP8
- Input interface: RCA/Bluetooth5.3
- Output interface: stereo power amplifier output
- Output power: 50W+50W at 4ohms; 30W+30W at 8ohms
- SNR: 98dB
- Output impedance: 4 - 8ohms
- Power amplifier chip: TPA3116
- Power supply voltage: AC220V (110V is optional,please contact us before payment)
- Power supply power: 150W 23V
- Frequency response: 2Hz - 60kHz
- Input sensitivity: 0.2Vrms
- Bluetooth transmission distance: 0 - 15m
- Bluetooth protocol: SBC
- Product size: 145 x 167 x 42mm
- Net weight: 0.85kg

Package Included:
- 1 x Power Amplifier
