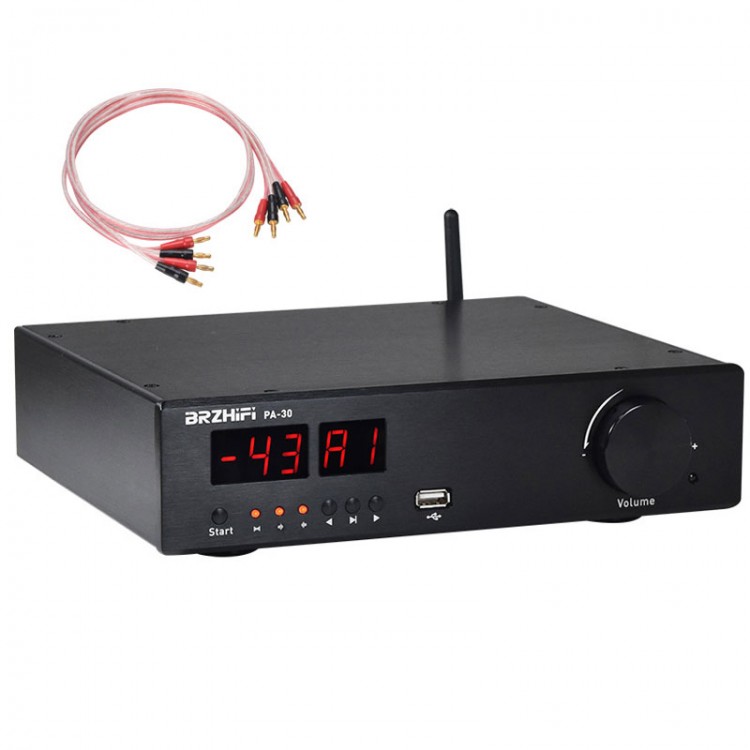

BRZHIFI PA-30 Hifi Power Amplifier 68Wx2 Bluetooth Amplifier w/ Speaker Cables For U Disk APTX-HD

BRZHIFI PA-30 Hifi Power Amplifier 68Wx2 Bluetooth Amplifier w/ Speaker Cables For U Disk APTX-HD

Features:
- Premium quality power amplifier
- LM3886 power amplifier chip
- Large LED screen displays all operations at a glance. Simple operation
- The sound is warm and durable, full of vocals, dense details, transparent and natural
- U disk high-definition lossless playing: independent high-definition decoding, lossless sound quality. Restore high-fidelity sound quality, no longer worry about poor sound quality. Support lossless playing of APE, WMA, FLAC, MP3, WAV and other formats
- Bluetooth 5.0 supports for aptX HD protocol, high-speed and stable transmission, and you can enjoy the fun of wireless transmission. Support mainstream music and audio playing software on the market
- CD-level lossless sound quality: Thanks to decoding technology for aptX HD, enabling Bluetooth to have CD-level sound quality
- Strong adaptability: suitable for mobile phones, desktop computers, laptops, U disks, Bluetooth transmitters, TVs, etc.

More Details:
- Imported LM3886 power amplifier: the sound is warm and durable, the vocals are full, the details are dense, transparent and natural
- QCC3034 HD Lossless 5.0 Bluetooth Module: Seamless connection for Android and Apple mobile phones, and easily transfer lossless music
- PCM5102A independent decoding chip: good audio decoding creates high-definition audio source for you
- Operational amplifier: pre-stage independent amplification direct plug-in operational amplifier
- Imported high-fidelity flagship volume control: ultra-low distortion volume control and treble and bass adjustment functions
- Capacitor: Imported audio tuning capacitor, sweet tone, mellow and transparent
- Transformer: Professional custom non-breakpoint iron core + Japanese imported oxygen-free copper wire winding
- Support mobile APP to play music

Specifications:
- Brand: BRZHIFI
- Model: PA-30
- Power amplifier chip: LM3886*2
- Bluetooth chip: QCC3034
- Bluetooth version: Bluetooth 5.0
- Support agreement: For SBC/AAC/APT X/APTX-HD
- Op amp: 5534*2 (can be upgraded to MUSES03, OPA627, etc.)
- Wired input: RCA
- Power output: 2*68W at 4Ω; 2*50W at 8Ω
- Frequency response range: 18hz~25khz
- Tone range: treble±10dB; bass±10dB
- U disk playing: maximum support 128GB
- Lossless format support: MP1/MP2/MP3/WAV/APE/FLAC; Sampling rate: 44.1~48khz, 16bit
- Distortion: 0.005%
- Signal to noise ratio: 96dB
- Input voltage: AC 110/220V, 50/60hz
- Recommended match: 3-10" passive fixed-impedance stereo loudspeaker boxes
- Dimensions: 252 x 218 x 75mm/9.9 x 8.6 x 3" (LxDxH)
- Net weight: 4.3kg

Package Included:
- 1 x Power Amplifier
- 1 x Pair of Speaker Cables 2M/6.6FT

Note:
- It is assembled and ready to use.
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!


1-1 Standby switch
1-2 Standby indicator (the indicator lights up and the screen turns off during standby)
1-3 Treble tone-on indicator (lights up to indicate tone-on)
1-4 Bass tone on indicator (lights up to indicate tone on)
1-5 Volume indicator (Attenuation precision adjustment. 0 is the maximum volume)
1-6 Signal channel indication (A1: RCA input channel. A2: U disk channel. B1: Bluetooth channel)
1-7 Previous song
1-8 Pause/Play
1-9 Next song
1-10 U Disk Interface
1-11 Multi-function knob (Rotate to adjust volume. Short press to select signal channels. Long press to adjust treble and bass)
1-12 Remote control infrared receiver


2-1 Bluetooth antenna port (B1 channel)
2-2 RCA signal input (A1 channel)
2-3 Power output right channel
2-4 Power output left channel
2-5 100V/220V switch
2-6 Main power switch
2-7 Fuse
2-8 AC power socket
