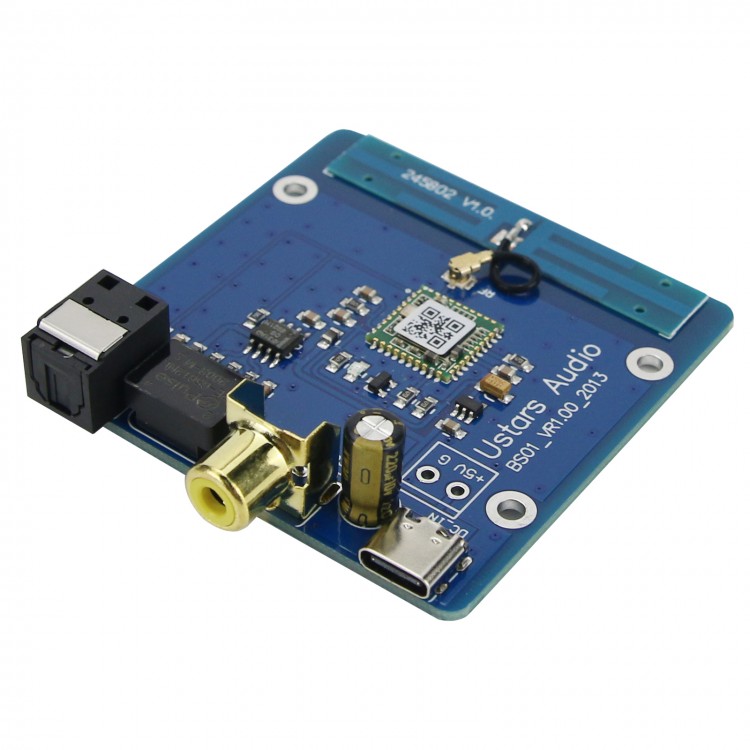

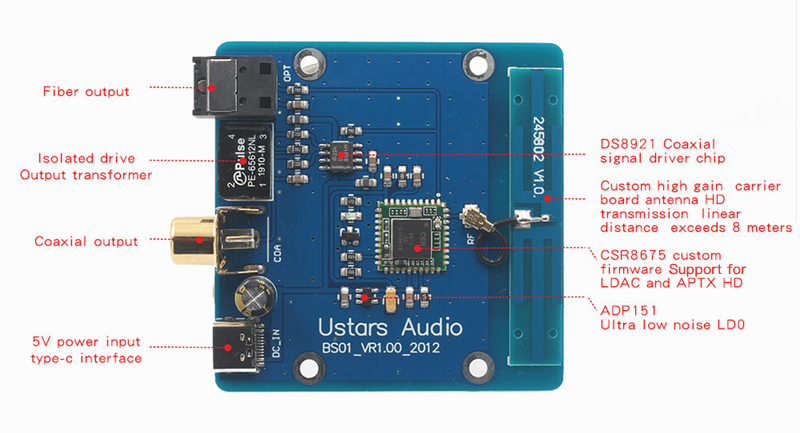

BS01 Digital Interface CSR8675 Module Bluetooth 5.0 For LDAC APTX HD 96KHz 24Bit Transmission
Features:
- Support for LDAC APTX HD 96KHz 24Bit Transmission
- CSR8675 Bluetooth 5.0
- HIFI, coaxial, optic outputs
- High-gain on-board antenna for stable transmission
Digital Input:
- Bluetooth: For LDAC / apt xX HD / apt X / AAC / SBC
Digital Output:
- Coaxial output: 44.1-96KHz / 16-24Bit
- Fiber output: 44.1-96KHz / 16-24Bit
(The signal sampling frequency of the digital output is related to the transmission coding and settings supported by connected mobile phone)
Power Supply Requirements:
- Input voltage: DC voltage regulation +5V; voltage range: ±5%
- Power supply interface: conventional TYPE-C (supports positive and negative insertion)
- Working current: about 30MA
(Most of computers' USB interface, mobile phone charger, USB mobile power supply can provide power for this board. It is recommended to use a high-quality 5V power adapter or linear power supply.)
Attention:
The input power supply must meet the above power supply requirements, especially the power supply voltage. Anything beyond the power supply voltage range or reverse voltage polarity will cause damage to the board.
Package Included:
- 1 x BS01 Bluetooth Board
Note:
- Power supply and cables are not included in the package.
- Hands-on ability and basic knowledge are highly recommended.
- Not support U disk, memory card, nor mobile hard disk.
