BT5.1 HiFi Digital Decoder Board Bluetooth Receiver Module QCC5125 + PCM5102A DSP for APTX-HD
Features:
- Audiophile Bluetooth receiver
- QCC5125 Bluetooth 5.1 Chip: for SBC, AAC, APTX, APTX-LL, APTX-HD and APTX-ADAPTIVE; not for LDAC
- QCC5125 with built-in DSP which enables better listening effect, while QCC3034 without DSP
- Lossless transmission, ultra low delay and hifi sound quality

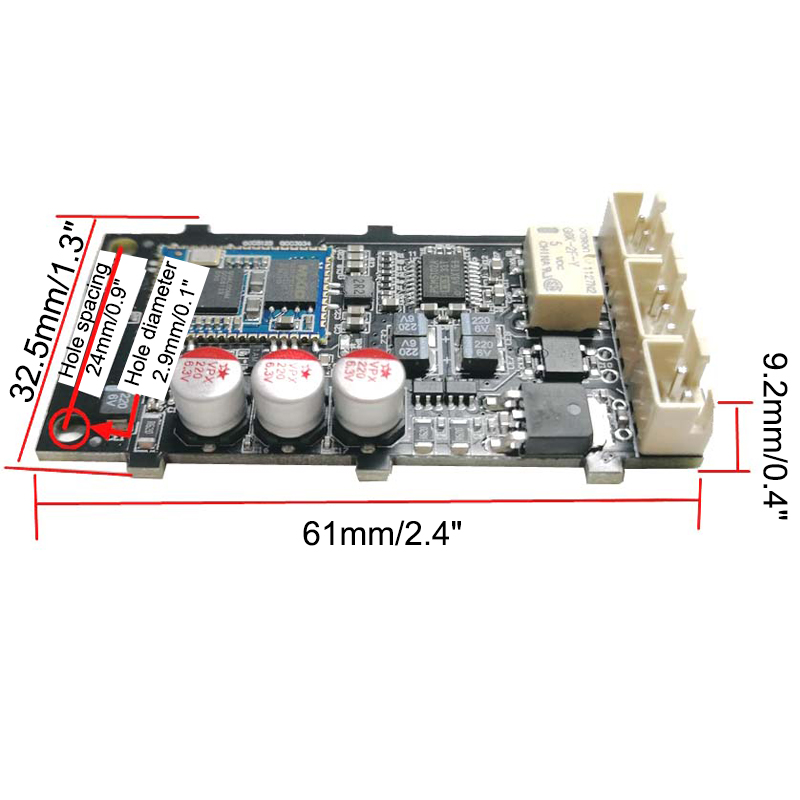

- Small board (61 x 32.5 x 9.2mm/2.4 x 1.3 x 0.4") to meet your modification requirements

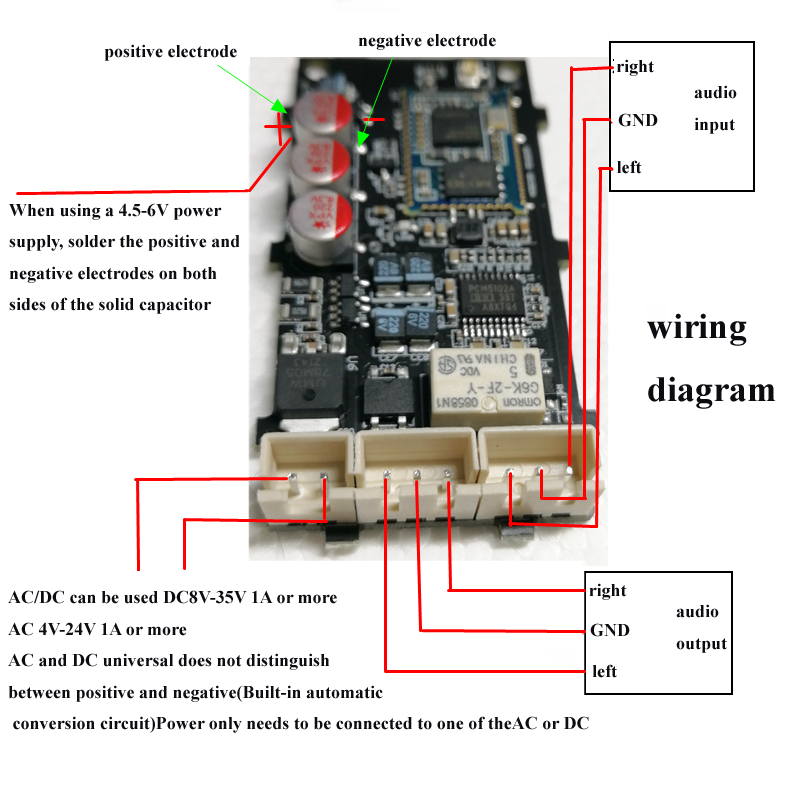

- Reverse connection protection function: the input voltage is increased from the original DC5V-16V (or AC 4-9V) to DC6V-35V (or AC 3.6-24V)
- Bluetooth working distance is improved
- PCM5102A decoding chip supports 32Bit 384kHz; its parameter performance is better than that of the current mainstream high-end Bluetooth chip. The sound quality of this bluetooth receiver has exceeded that of classic CD
- Quality components: The majority of the components are branded products. 5pcs 220uF/6.3V high-speed tantalum capacitors; 3pcs 220uF/6.3V high-end professional solid-state capacitors; 3pcs 0.2V high-current LDOs made in Taiwan; audio relays for Omron; Hifi decoder chip PCM5102A; 14pcs 47uF small volume capacitor for Murata
Package Included:

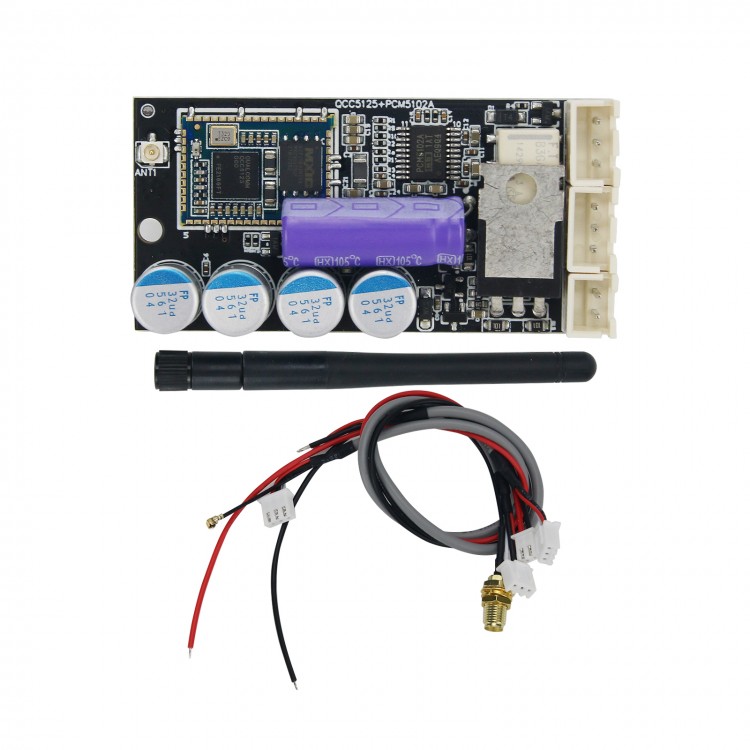

- 1 x Bluetooth Decoder Board
- 1 x 2P Power Cable
- 2 x 3P Audio Cables
