BT5.1 Lossless Bluetooth DAC Receiver Sound Card LH HIFI AUDIO DAC with Optical Coaxial Output

BT5.1 Lossless Bluetooth DAC Receiver Sound Card LH HIFI AUDIO DAC with Optical Coaxial Output

Features:
- Independent software development, with its own bluetooth name, and can also burn the name required by customers
- 3 independent voltage regulator functions, wide voltage input 8-15V. Can be powered via its USB port
- External 3DB 2.4G Bluetooth antenna ensures stable signal
- Product integrated design

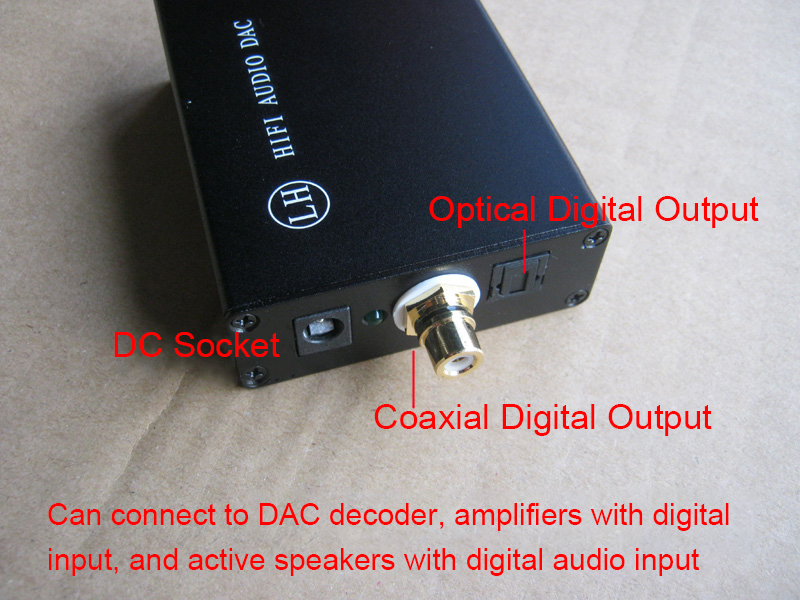

- Pure aluminum shell, high-quality coaxial output socket, and optical connector for automatic output
- Full format support: for LDAC, APTX HD, APTX, Apple AAC and SBC
- 2.1x5.5 standard DC power socket
- Can be used as a sound card
- Hifi components: Japanese Capacitors for NCC, thin film digital capacitors for Thomson, capacitors for Philips CBB and digital solid state capacitors for NCC
- Support format for LDAC for Huawei phones

Attention:

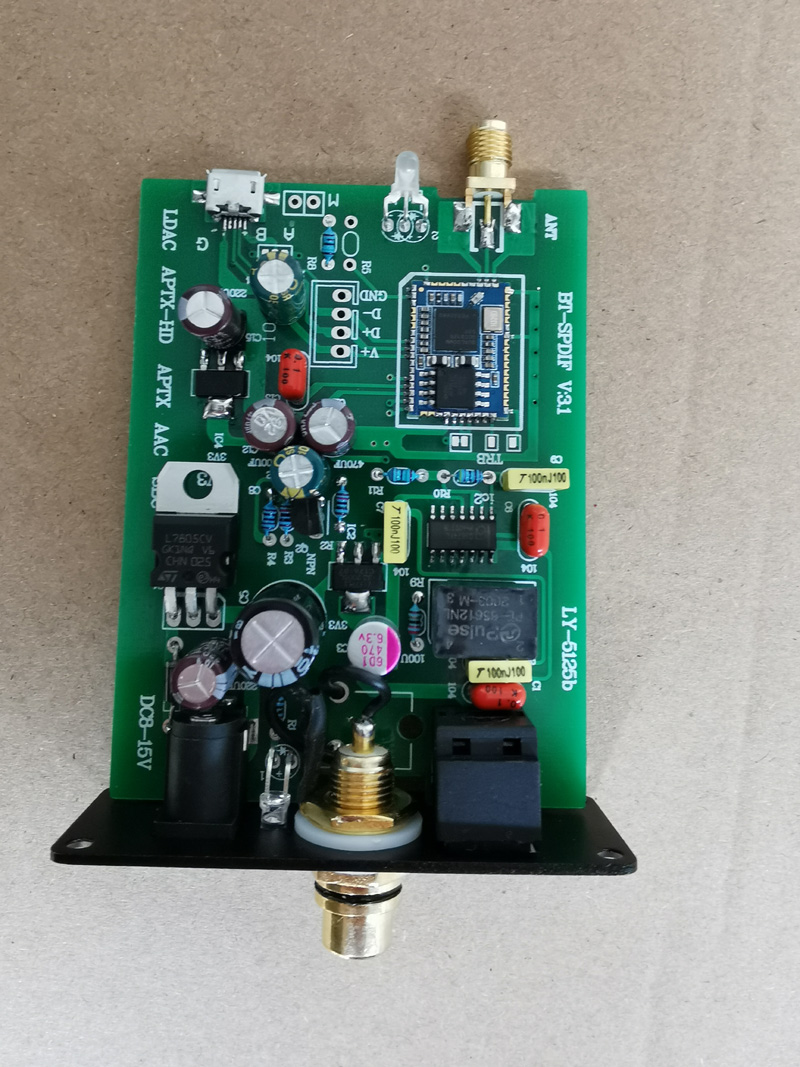

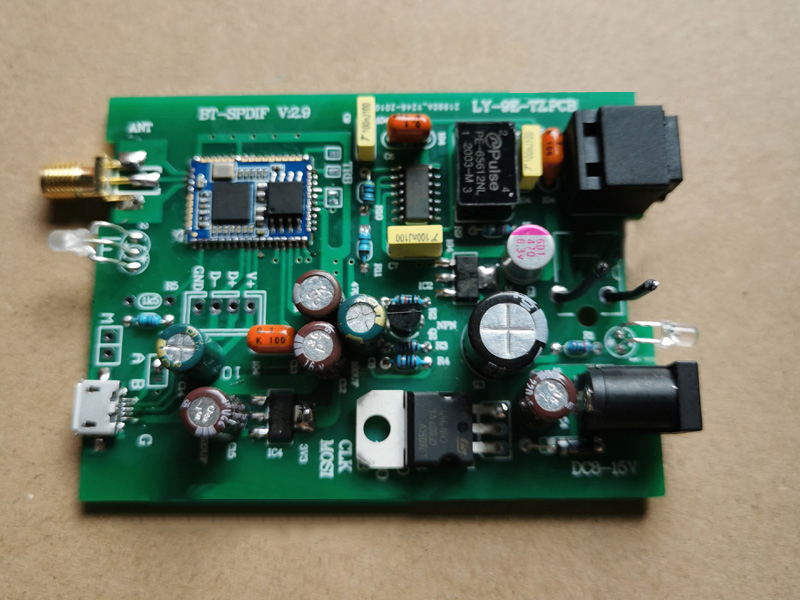

A: Bluetooth 5.1 DAC board; 2-channel Bluetooth decoder
B: 24bit 96K sampling for LDAC. Please make sure your decoder or amplifier can support 24bit 96K
C: Digital PCM, 2 channel format, not supporting DTS or AC3 format. If you want to buy a receiver to use with a projector, please note that it does not support AC3 DTS
D: When connecting to Bluetooth, the default is the latest format for APTX Adapter, not the format for LDAC. Users who want to use the format for LDAC need to manually set to this format (such as OPPO mobile phones). When using with mobile phones for Huawei, Samsung and Sony, the default format is for LDAC
E: As for format for LDAC, phones for Samsung S21 are required to turn on the independent switch for LDAC

Compatibility:
1: DAC decoder
2: CD player with optical coaxial digital input
3: Active speakers with digital input (optical or coaxial input, such as Edifier S1000)
4: Amplifier with digital input (optical or coaxial input)
5: Car DSP power amplifier with digital input (optical or coaxial input)
6: Any device with audio digital input

Specifications:
- Name: bluetooth to fiber coaxial receiver
- Model: LH-LY-10
- Receiving distance: Barrier-free straight-line distance of about 5-8m/16.4-26.2ft. Not support transmission through walls
- Bluetooth version: Bluetooth 5.1
- Bluetooth chip: QCC5125
- Bluetooth support: for LDAC, APTX-HD, APTX-LL, APT-X, A2DP, AVRCP, Apple AAC and SBC

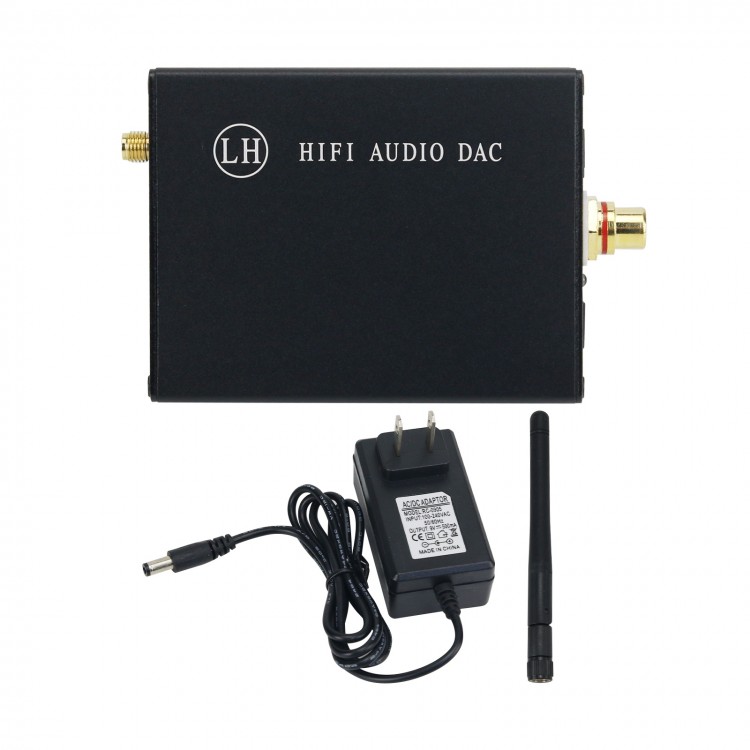

Package Included:
- 1 x Bluetooth DAC Receiver
- 1 x 3DB Antenna
- 1 x 9V Power Adapter

Note:
- No paper manual.
- We can customize the personalized Bluetooth name according to your requirements. If it is needed, please leave a message when placing an order.
- The default Bluetooth name displayed on a phone is LH 5.1 LDAC (Note: Chinese name is not supported).
- Cables are not included.
- Micro USB cable is not included.
- Pure digital output; no analog capability and cannot be used for calls.
- If you need a power supply for your cigar lighter socket for car DSP, please leave a message when purchasing.

Connect to PC:
Computer format: PCM format 16-bit 44.1K
The USB port can be connected to a computer for use as a USB sound card: connect it to your computer via a micro usb cable
1: The computer is for WIN7 or above. Insert a USB cable to the computer, the system will automatically install the driver
2: Turn on the sound in the computer settings
3: Find QCC5125 and set it as default output

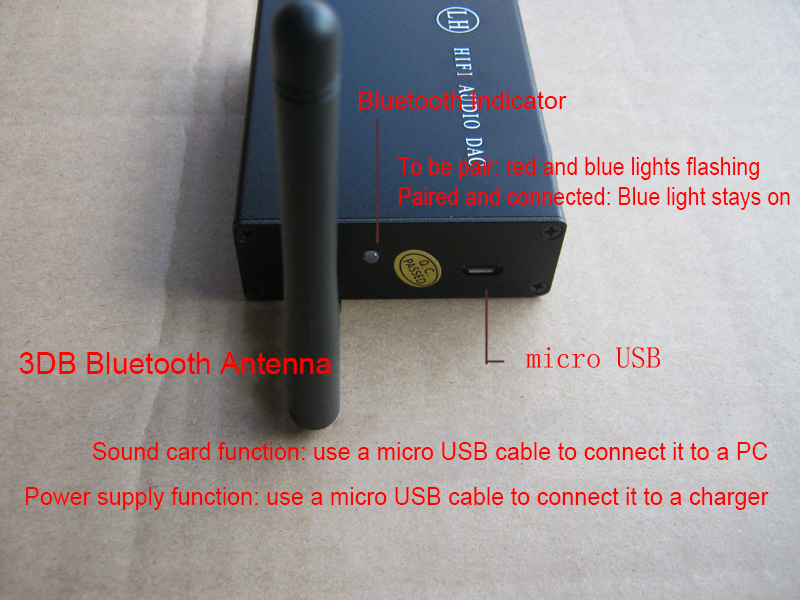

Bluetooth Light Status:
- Red and blue lights flashing: Bluetooth disconnected.
- Blue light stays on: connected to a phone.
- Red light flashing: Bluetooth is connected while the phone is out of the reach of the Bluetooth receiver.
- Attention: When pairing with other mobile phones, please disconnect the Bluetooth-connected mobile phone first. The bluetooth name can only be found when the red and blue lights are flashing.
