BT94 PCM1794 Bluetooth DAC BT5.1 QCC5125 OPA1612 Black For LDAC Outperforms CSR8675 5.0 Receiver

BT94 PCM1794 Bluetooth DAC BT5.1 QCC5125 OPA1612 Black For LDAC Outperforms CSR8675 5.0 Receiver

Features:
- 2pcs OPA1612 op amp chips
- Using QCC5125 Bluetooth 5.1, PCM1794 decoding
- With relay for Omron protection circuit. Delayed closing when power on, disconnection instantly when power off, preventing impact sound
- Can be powered by 6V DC (for example, using a DC 6V power supply), or it can be powered by 5V by USB (using a mobile phone charger)
- Internal boost for dual 14V power supply
- 5V powered via type-c port. Can be used as an USB sound card for your computer
- Designed with a switch, a 3.5mm headphone jack, a volume knob, and a relay
- The performance of QCC5125 + PCM1794 better than that of CSR8675
- QCC5125 supports encoding for SBC, AAC, APTX, APTX-LL, APTX-HD, LDAC, APT X-ADAPTIVE
- Adopt imported capacitors and gold-plated socket for Nextron
- Professional welding ensures high quality

Specifications:
- Brand: Rod Rain Audio
- Model: Bluetooth 5.1 version QCC5125+PCM1794 decoder
- Whole machine power: 3W higher power consumption
- Power supply: DC port 6V (such as router power supply), or USB power supply
- Impedance: output standard RCA impedance 47K headphones can drive 300Ω
- Product size: 75 x 23 x 120mm/3 x 0.9 x 4.7"
- Product net weight: 160g/0.4LB

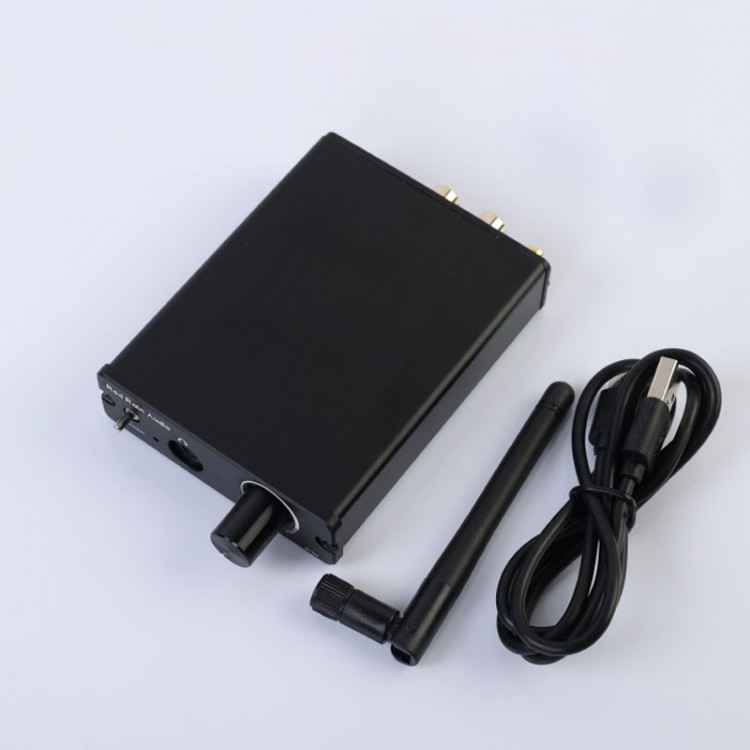

Package Included:
- 1 x DAC Host
- 1 x Antenna
- 1 x Type-C Cable

Note:
- 5pcs filter capacitors are delivered in FW version or SMD version. They are all imported capacitors and will not affect its quality.
