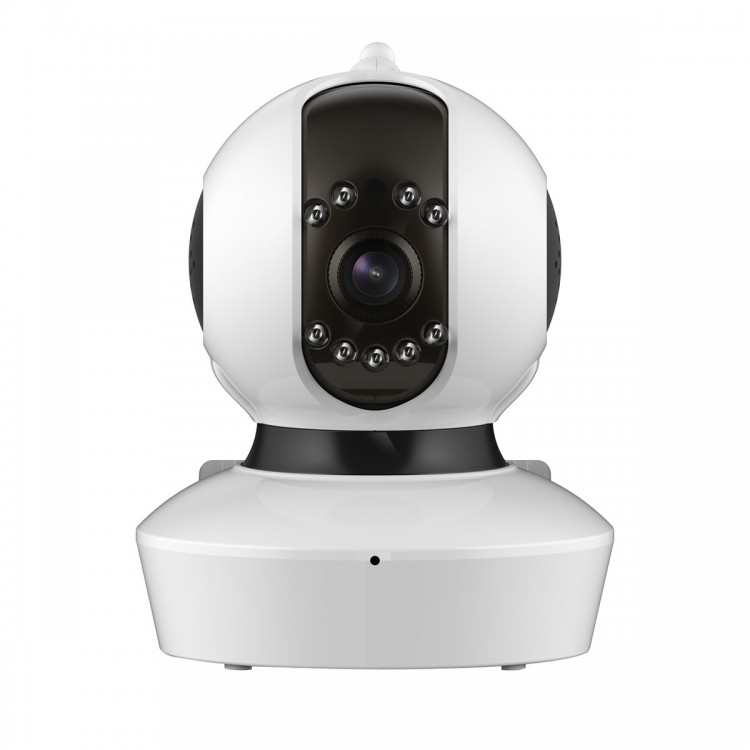

C7823WIP 720P Wifi IP Camera 1.0 Megapixel P2P Wireless Onvif Mini Indoor Surveillance Security

C7823WIP 720P Wifi IP Camera 1.0 Megapixel P2P Wireless Onvif Mini Indoor Surveillance Security

Product Specifications:
- Features:Small body size,perfect combination of hardware and software through software limit, and more stable.
- System:OS:Embedded Linux OS
    system security:Three level user authority management
    online users:support 4 online visitors simultaneously
    DDNS:Free DDNS
    Control protocol:ONVIF 2.0 protocol, high interoperability
    Processor    Hisilicon processor,built-in ARM926 @Max. 440MHz and a high-speed video co-processor.
    Reset:Long press for 15 seconds to restore back to factory settings
- Collection:Image sensor:1/4inch 720p Progressive scan CMOS sensor
    CMOS:support AWB, AGC, BLC
    sensor size:3.84mm×2.16mm
    SNR:≥39dB
    Minimum illumination:0.8Lux/F1.４（colourful model ）,0.3Lux/F1.（B&W mode）
    Lens/viewing angle    3.6mm @ F1.4/ 56.14 degree
    Night vision:Dual IR-CUT filter auto switch, 9pcs 850nmΦ5mm LED,10m IR distance
    IR control:IR turned on: night vision view enabled, infrared Ray, ICR auto detect.
                   IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
- Video:Compression Format:H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
    Video coding process:Multi-stream:720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG snapshot
    Resolution:720p/VGA/QVGA
    Bit Rate:CBR/VBR, output bit rate range:128～4096kbps
    Frame rate:25fps
    Picture Adjustment    Contrast, brightness, saturation, chroma are adjustable.
- Audio:Input:Built in -48dB Microphone
    Output:Built in speaker(8Ω1W)
    Sampling frequency / width    8KHz/16bit
    Compression format    ADPCM/32kbps
- Network:Interface:10Base-T / 100Base-TX, RJ45 connector
    Network Protocol:TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP，P2P,etc.
    WIFI:WiFi802.11b/g/n
    Antenna:3dBi antenna,stronger signal, more stable
    Wireless network security:WPS one key setup WiFi
- Storage:Storage mode:Local storage / client storage
    Interface:Micro SD
- Pan-Tilt:P/T:Pan:270°,Tilt:70°
    Preset Postion:support up to 15 preset postions
    Limit method:Software limit position, more accurate preset positions,lower Pan Tilt failure rate
- Alarm:Motion detection:Support motion detection
    Alarm action:Image upload via email/FTP server
- Physical index:Rated Voltage:DC5/2A±0.3V
    Power comsumption:Rated power:3.0Ｗ(IR ON)
    Working environment:Working Temperature：-20～70℃,Working Humidity 90%
    Weight:Gross Weight ：295g （Note: in kind prevail）
    Housing material:ABS plastics
    Camera size:98x105x120mm(L×W×H)
    Installation:Wall mounting, ceiling mounting
    Only for reference

Package List:
- 1 x C7823WIP IP Camera
- 1 x Card slot
- 1 x Power supply AC
