Carbon Fiber Full Set Mini QAV250 Quadcopter with 800TVL Camera & HD Monitor & 5.8G TX RX & T6 Transmitter

Availability: In stock, usually dispatched in 1 business day

  • Price:$282.80
  • Price in reward points: 2828 Reward Points: 28
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $277.14 $271.49 $263.00 $251.69 Contact US
Quantity:

Carbon Fiber Full Set Mini QAV250 Quadcopter with 800TVL Camera & HD Monitor & 5.8G TX RX & T6 Transmitter

Carbon Fiber Mini 250 FPV Quadcopter Frame Specifications:
- Materials: 3k Weave Carbon Fiber
- Fasteners: Stainless Steel & Black Nylon 6/6
- Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter
- Maximum Propeller: 5"
- Motor Mount: M2 12mm - 16mm
- Flight Controller Mount: 30.5mm x 30.5mm
- Board Camera Mount: 32mm x 32mm

Emax MT1806 Motor and ESC Features:
Motor:
- KV: 2280
- No. of cell: 2-3S
- Framework: 12N 14P
- Propeller: 5-6inch
- Length: 26.7mm
- Weight: 18g
- Shaft: 2MM
- Diameter: 25mm

ESC:
- Based on Simonk programme
- Low voltage protection, over current protection, power on self detection function
- Supportmax rotate speed: 210,000r(2 magnetic poles), 70,000r(6 magnetic pole), 35000r(12 magnetic poles)
- MCJ and BEC adopts different stabilizer, improve anti interference ability
- ESC multiparameters can be set through RC
- Throttle range can be set, to compatible with different receiver, has very good low speed performance
- Built in linear BEC or switch BEC
http://gd4.alicdn.com/imgextra/i4/1811422106/TB2DyaNXVXXXXcnXXXXXXXXXXXX_%21%211811422106.jpg

FlySky FS-T6 2.4GHz Digital Proportional 6 Channel Transmitter and Receiver System:
- If you need FS-T6 Manual,  please leave your email to us!
- FlySky Introduces its newest 6 channel 2.4GHz system, The FS-T6. After years of success with the CT6B, FlySky presents the new FS-T6 with loads of cool and convenient features making the operation of this transmitter simple and instinctive.
- The 6-channel FlySky FS-T6 is the perfect transmitter for sport modelers who want the power of a programmable transmitter but don't necessarily need a lot of excess features they do not use. It includes all of the important features and programmable parameters to support a variety of helicopters, gliders, and airplanes. It even has the ability to store 20 models allowing the user to save a whole fleet of aircrafts.
- Programming the FS-T6 is very easy and intuitive. It is implemented with a simple click and scroll dial allowing quick and easy menu navigation and manipulation. The large backlite LCD screen with large fonts is easy to read and the simplified menus will immediately put first-time programmers at ease. Many programming functions like throttle curves and expo are graphically depicted to give you a clearer picture of the changes you're making.
- FlySky AFHDS (Automatic Frequency Hopping Digital System) 2.4GHz system offers a lot of advantages. It is equipped with a super active and passive anti-jamming capability and has very low power consumption with high receiver sensitivity. The 2.4GHz system puts the radio out of the frequency range by any generated by other electronic components in your model such as the brushless motor, speed controller, servos, or other metal to metal noise. This eliminates interference and glitching that can plague a traditional radio system. Extreme rigorous testing by FlySky engineers makes this AFHDS system solid and worthy.

CC3D Flight Controller:
- CC3D openpilot opensource flight control is suitable for MINI 200/250/300 multicopter
- With damper two sides sticks, and three connecting cables
- Shell size: 40mm*40mm*14mm
- Board size: :36mm*36mm
- Board net weight: 7.3g
- Total weight: 15.2g

FPV TS353 5.8G 400MW Transmitter Specification:
- Transmitter Frequency:5705/5685/5665/5645/5885/5905/5925/5945MHz 8CH
- Output Power:400mW/25dBm
- Transmission Distance:4KM
- Frequency Control:Built-in frequency & phase lock loop
- AV input:Analog AV signal input
- ANT connector:SMA (needle inside)
- Power Supply: DC 6.5-15V
- Current Supply:300mA
- Dimension: 55*26*17mm
- Weight:55g

FPV RC832 5.8G Receiver Specification:
- Video format supported: NTSC/PAL
- Antenna connection: RP-SMA, jack (module side)
- Sensitivity:≤-90dBm
- Power input: 12V
- Working current: 200mA max
- Antenna impedance: 50ω
- Antenna gain: 2db
- Video impedance: 75ω
- Video format: NTSC/PAL auto
- Dimension: 80x 65 x15mm
- Weight: 85g

5.8G Clover-Leaf Circular Polarized Antenna Specifications:
- Gain: 5dBi
- Antenna connector: SMA plug (the connector on the antenna side is referred to, please disregard the label on the antenna if there is discrepancy)
- Standing wave ratio(SWR): <1.5
- Length: 8cm (TX)/10cm(RX)
- Weight: 12.5g(TX)/14g(RX)

800TVL Mini CCD Camera Specifications:
- Image sensor: 1/3 inch
- Pixel: 720*576 (PAL default)  720*487(NTSC)
- Definition: 800TVL
- Min illumination: 0.01 Lux/F1.2
- SNR: >50dB
- Automatic gaining control: automatic
- White balance mode: automatic
- Backlight compensation: automatic
- Electric shutter: 1S-1/1000 sec
- Working voltage: DC12V ±1V
- Working current: 45mA
- Working temperature/ appropriate:  -20℃--60℃/0%~98%
- Size: 32*32mm
- Weight: 13g
- Lens type: 2.8mm non infrared lens(100 degree)

7 inch HD LCD TFT Screen Monitor Specifications:
- Support PAL / NTSC auto switch, when there is no signal, the sceen becomes blue
- Simulation of composite video AV inputs, aerial camera connection
- Screen ratio:16:9
- Dot Resolution: 800RGB(H)x480 (V)pixels
- Brightness: 400-450 cd/m²
- Contrast Ratio:500:1
- Viewing Angle:140°/ 110°(U/D)
- Operation Voltage:DC 7-12V
- Signal System:NTSC/PAL auto change
- Power Consumption:≤8W
- Size:179×120×20mm
- Weight:450g

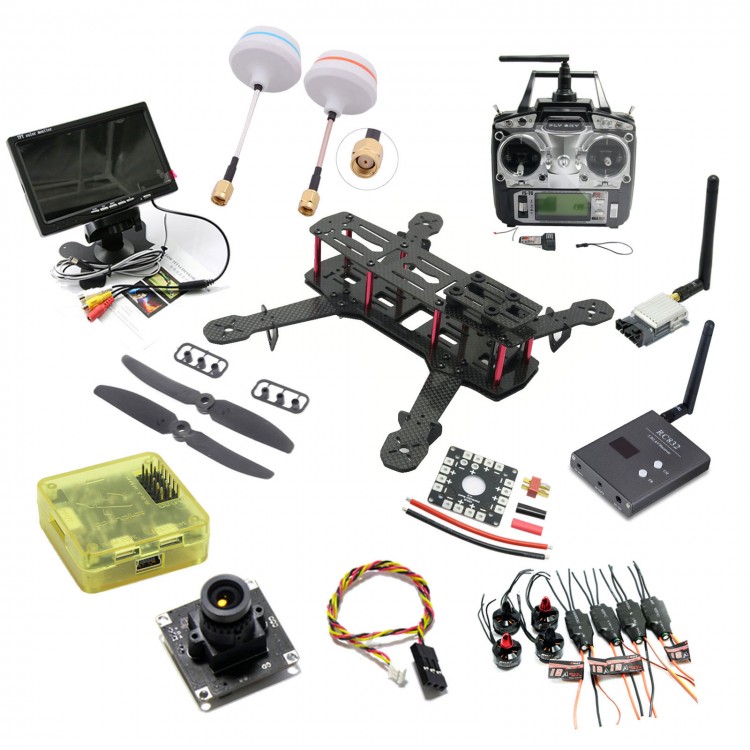

Package includes:
- Mini 250 FPV Quadcopter Frame  x 1
- ESC Connection Board  x 1
- EMAX 1806 2280kv Brushless Motor  x 4
- EMAX 12A Simonk ESC x 4  (or EMAX BLHeli Series 12A ESC 4pcs)
- 5030 Propeller CW&CCW  x 4
- 800TVL Mini CCD Camera  x 1
- CC3D Openpilot Open Source Flight Controller  x  1
- 5.8ghz Antenna(TX & RX)  x 1
- TS353 5.8G 400MW Transmitter  x 1
- FPV RC832 5.8G Receiver  x  1
- 7 inch HD LCD TFT Screen Monitor   x  1
- Flysky FS-T6-RB6 2.4GHz Transmitter & Receiver  x  1
