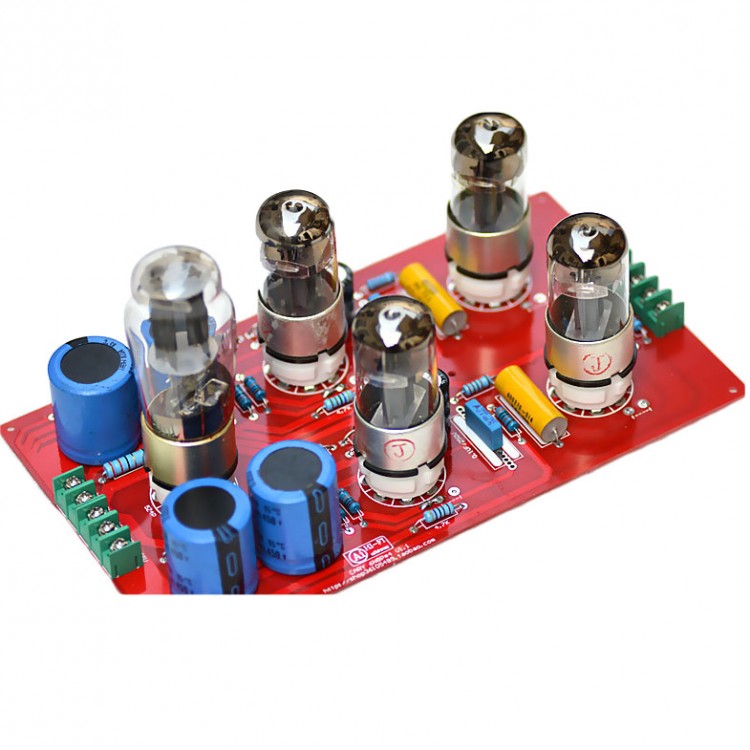

CARY 6N8P x 4 Electron Tubes Preamplifier Board AR Audio Power Amplifier DIY
Specifications:
- CARY 6N8P * 4 pre-finished board
- 6N8 * 4
- 5Z4P * 1
- PCB size: 133 * 234MM
- Power: OUT 250-0-250 100MA
0-5 3A
0-6.3 2.5A
0-6.3 2.5A
- 6N8P filament four independent board, the board labeled f ---- f place.
- Need to use twisted-pair connection. Two groups can be a filament power supply can also be used
- AC or DC is ok
Package Content:
- 1 x CARY 6N8P X 4 tubes preamplifier board AR
