Cayin MT-12N 6P1 220V Vacuum Tube Integrated Amplifier Home Hifi Class A Tube Amp 9W + 9W Output

Availability: In stock, usually dispatched in 1 business day

  • Price:$585.26
  • Price in reward points: 5853 Reward Points: 59
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $573.55 $561.85 $544.29 $520.88 Contact US
Quantity:

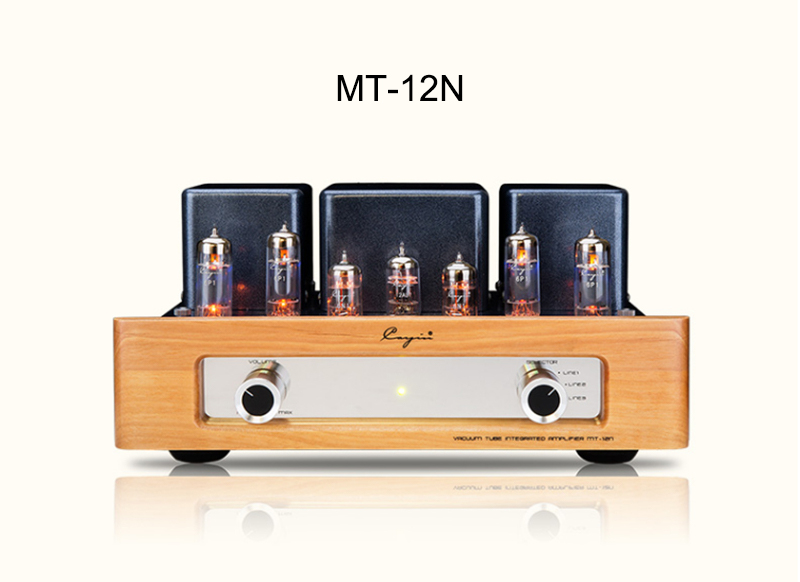

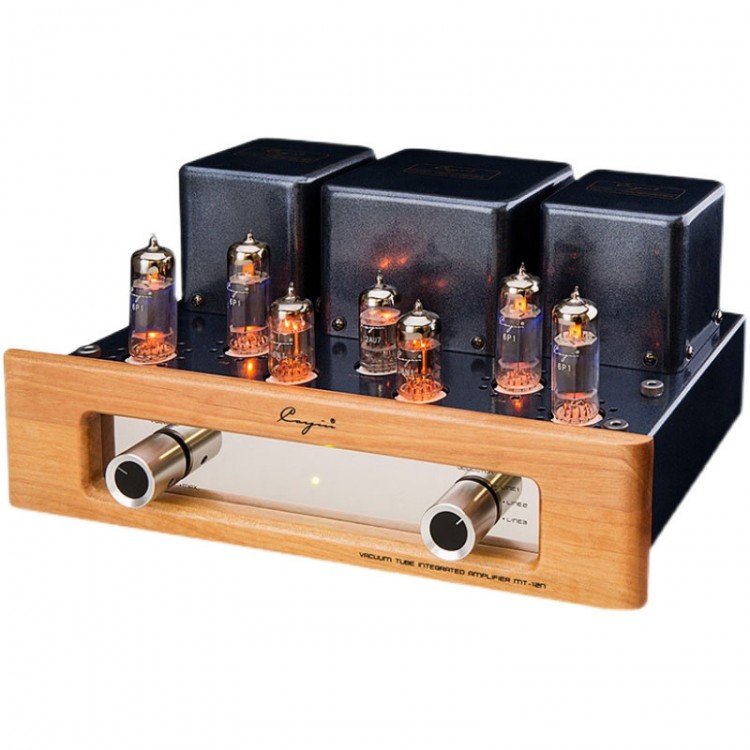

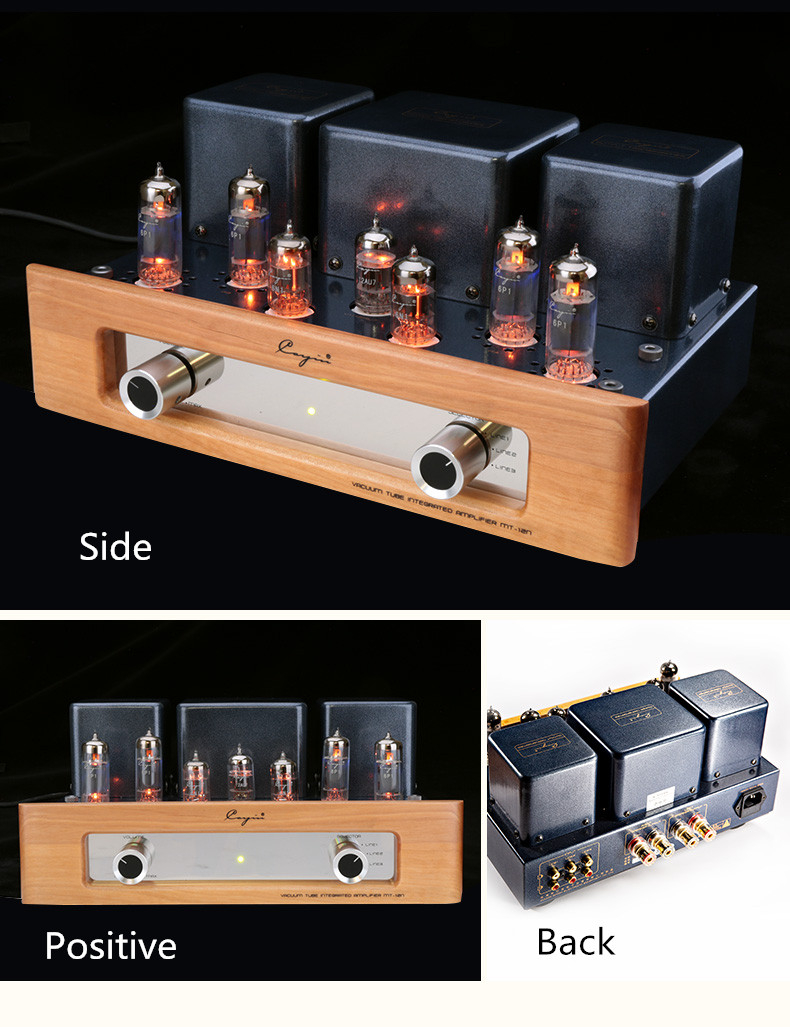

Cayin MT-12N 6P1 220V Vacuum Tube Integrated Amplifier Home Hifi Class A Tube Amp 9W + 9W Output

Features:

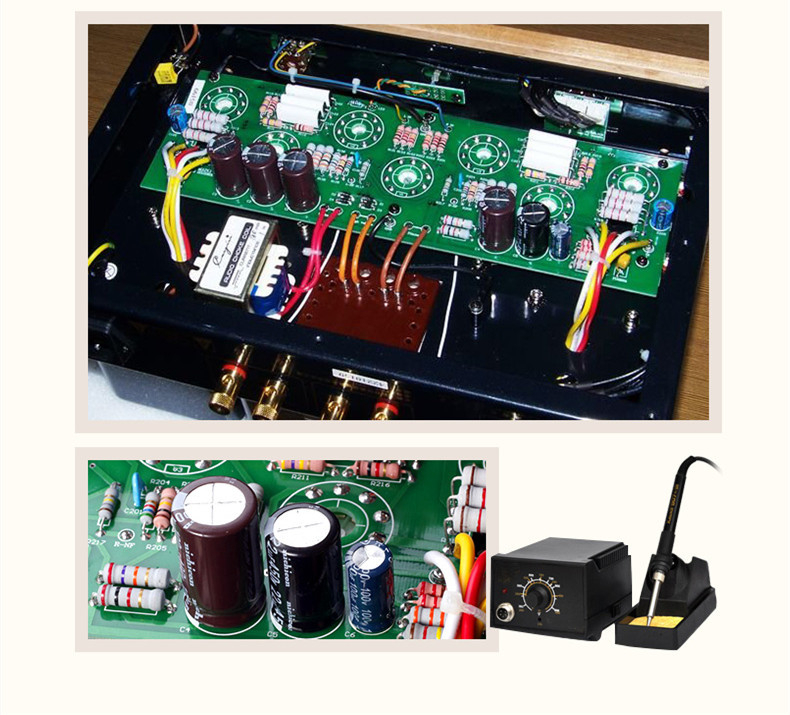

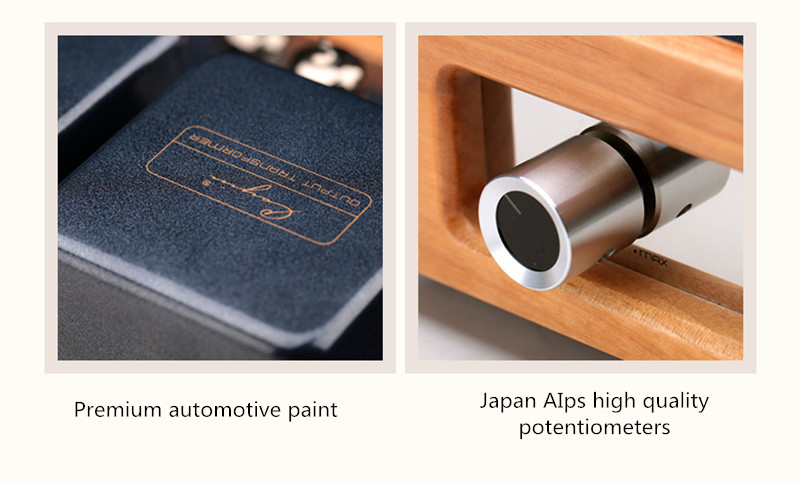

- Elegant and high-grade: As Cayin's entry-level tube amplifier, MT-12N adopts solid wood panel and tubes. It is handmade, the whole machine using the shed welding. Noise is controlled to a very low level, and its sound is sweet and delicate, soft and durable, but not lack of waves of surging momentum. Japan high-quality potentiometer for ALPS is adopted. Vacuum tube shield makes it easy to plug in the tubes

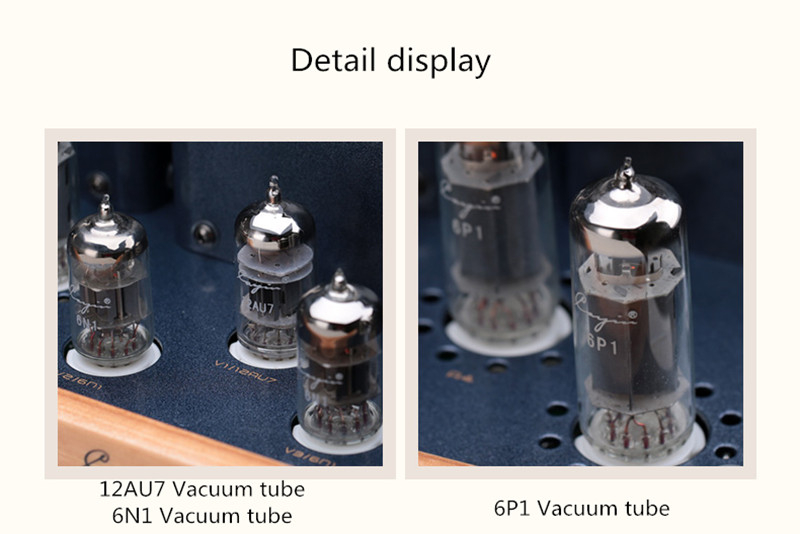

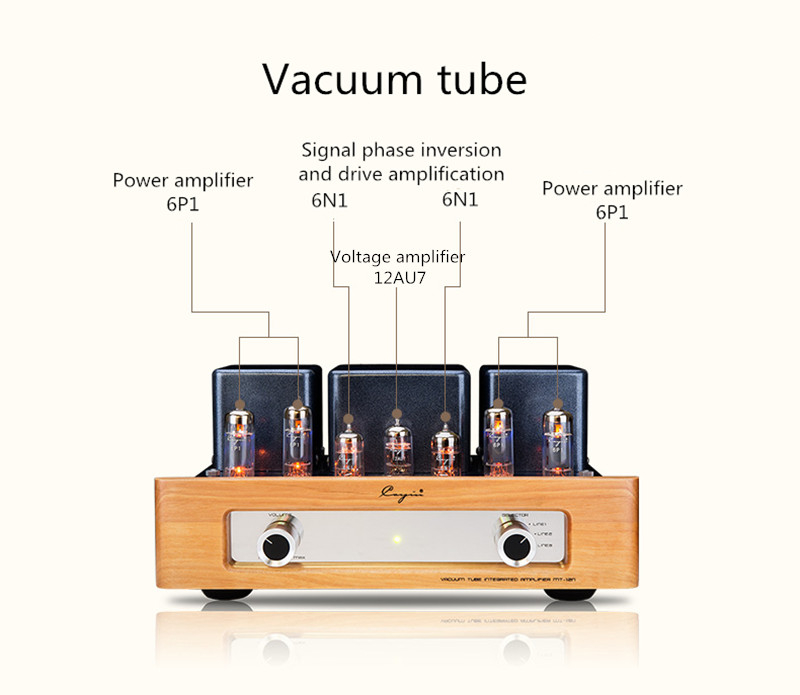

- Pure beauty and soft tone: one 12AU7 is used for voltage amplifier stage, two 6N1 are responsible for inverting and driving amplification of left and right channel signals respectively, and four selected paired 6P1 vacuum tubes are used for AB1 class push-pull power amplification

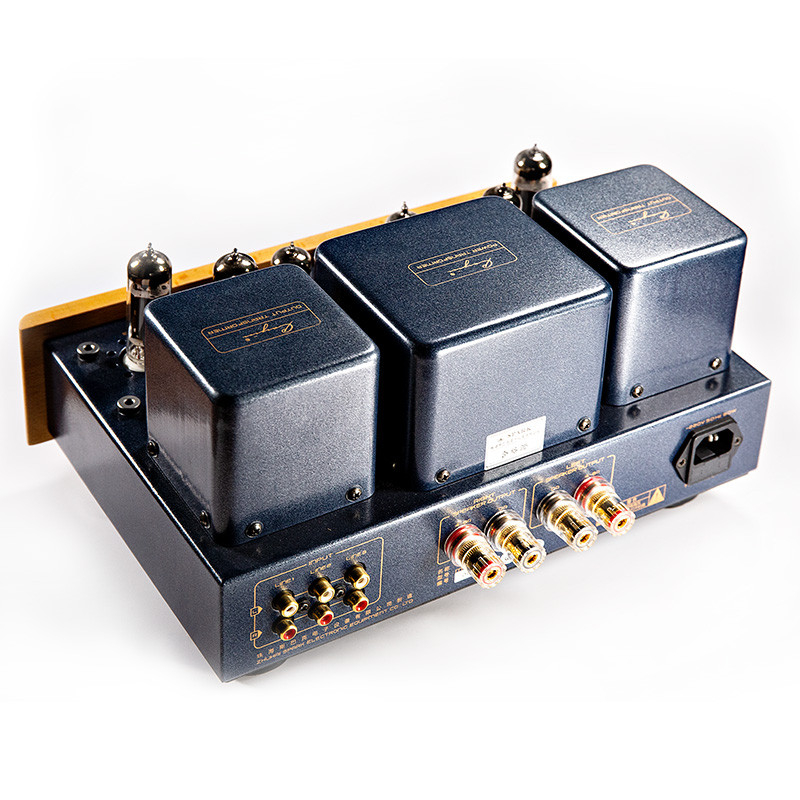

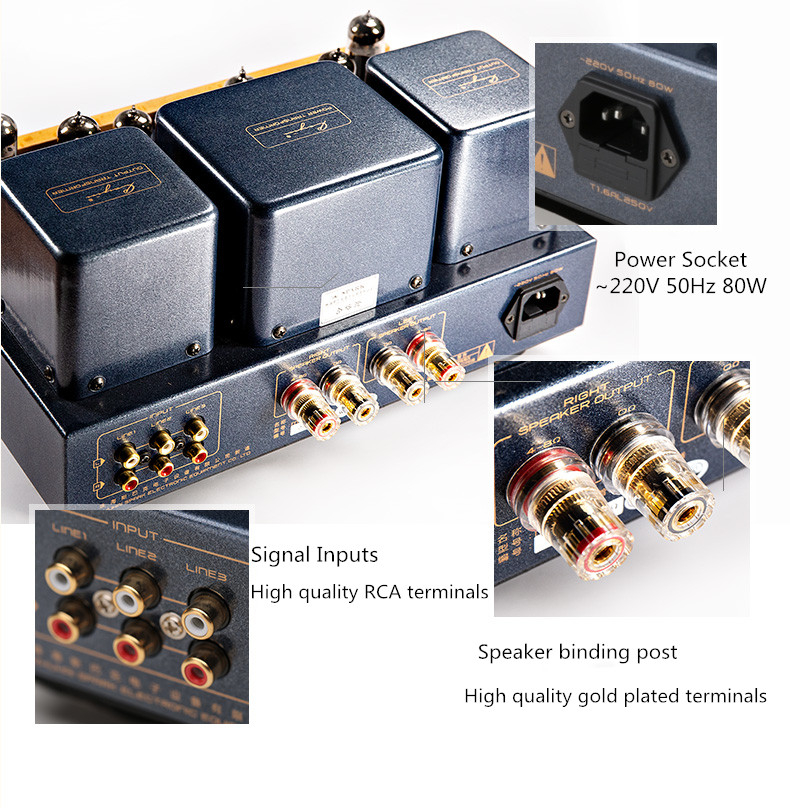

- High-grade speaker terminals
- Using two high-quality wide-band EI output transformers, bringing about better sound quality
- Using a special toroidal power transformer

Product parameters:
- Model: MT-12N
- Size: 330 x 245 x 160mm/13 x 9.6 x 6.3"
- Weight: 8.3kg/18.3lb
- Power consumption: 80W
- Vacuum tube: 12AU7x1, 6N1x2, and 6P1x4
- Input sensitivity: 260mV
- Rated output power: 9W+9W
- Output impedance: 4Ω/8Ω
- Input impedance: 100kΩ
- Signal to noise ratio: 86dB
- THD: 0.5% (1kHz)
- Frequency response: 10Hz~35kHz (-3dB)
- Power supply: ~220V±5% 50Hz

Package Included:
- 1 x Amplifier

Note:
- The tube amplifier must be connected to the speaker before running, otherwise the power amplifier may be damaged.
