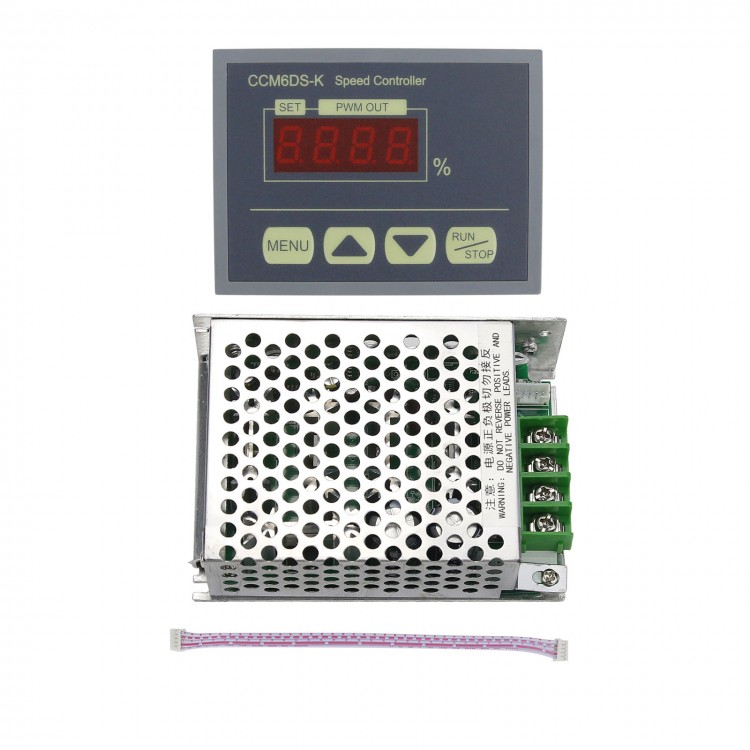

CCM6DS-K 12V to 80V 30A PWM DC Motor Governor LED Digital Display High Power Speed Control Switch

CCM6DS-K 12V to 80V 30A PWM DC Motor Governor LED Digital Display High Power Speed Control Switch

Specification:
Model: CCM6DS-K
Input voltage: DC 12V-80V (output voltage is about 0-100% of input voltage)
Weight: 190g
Control power: recommended within 12V 250W, within 24V 350W ... within 48V 500W
Maximum current: 30A
Size: 110mm*77mm*36mm (controller); 92mm*69mm*13mm (panel)
Speed range: 0% -100%
PWM frequency: 21kHz

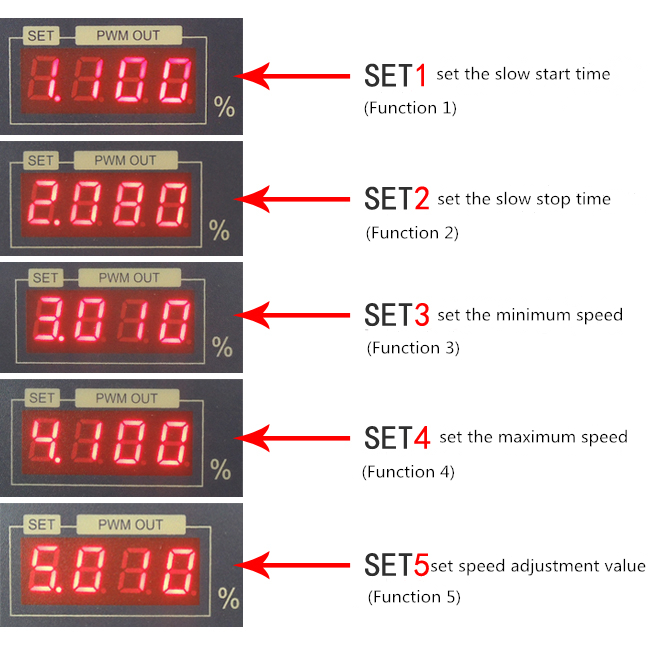

Function 1: "000"-"100", slow start to 100% speed time is adjustable between 0-10.0 seconds, the default is 1 second.
Function 2: "000"-"100", the slow stop time is adjustable between 0-10.0 seconds, the default is 1 second.
Function 3: "000"-"080", the minimum speed is adjustable between 0-80%, and is less than the maximum speed setting value, the default is 0.
Function 4: "000"-"100", the maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value, the default is 100%.
Function 5: "001", "002", "005", "010", "015", "020", "025", each time you press the plus and minus keys, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.

Package List:
1 x Motor Governor

Note:
1. DC motor governor input is DC, not directly connected to AC (such as: household 220V AC).
Otherwise it will burn out.
2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged.
3. The motor can be positive or negative when the running direction is inconsistent with the expectation. The direction can be changed by the line adjustment sequence.
4. The potentiometer knob can change the governor output duty cycle to change the motor speed.
