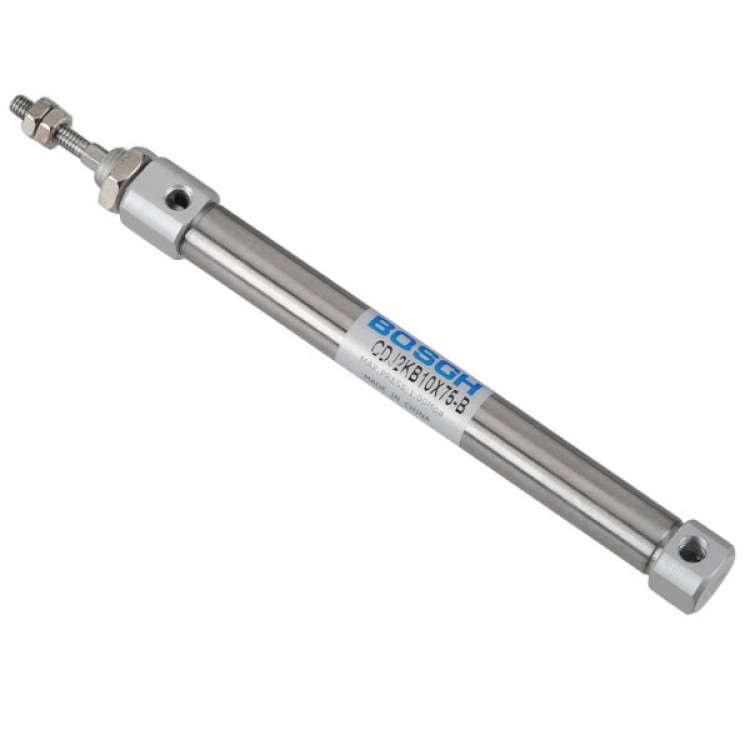

CDJ2KB 10x75-B 10mm Bore 75mm Stroke Stainless Steel Mini Pneumatic Air Cylinder

Availability: Out Of Stock

  • Price:$10.20
  • Price in reward points: 102 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $10.00 $9.79 $9.49 $9.08 Contact US
Quantity:

CDJ2KB 10x75-B 10mm Bore 75mm Stroke Stainless Steel Mini Pneumatic Air Cylinder
Specfications:
- SMC standard Mini cylinder CJ2 series cylinder.
- Cylinder Tube: Stainless Steel
- Normal Bore Size: 10mm
- Normal Stroke Size: 75mm
- Adjustable Cushion: With or without
- Magnet and Sensor: With or without
- Acting Type: Double acting (normal)
- Proof Pressure: 1.35MPa
- Max Operating Pressure: 1MPa
- Min Operating pressure: 0.05MPa
- Temperature: 0C~70C
- Oil: No need
- Fixing Type: Basic, LB, Y, I, Bearing type, Floating type

Note:

CDJ2B-S single action cylinder
CDJ2KB--with non-rotated piston rod
CDJ2D--with double U hook at the end
