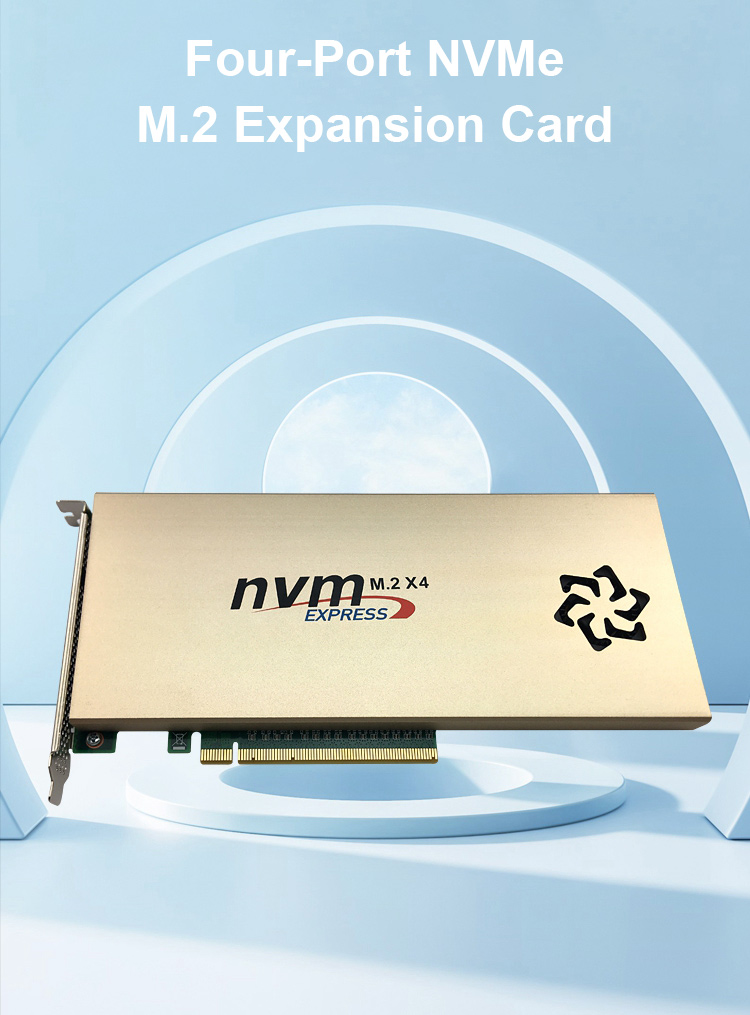

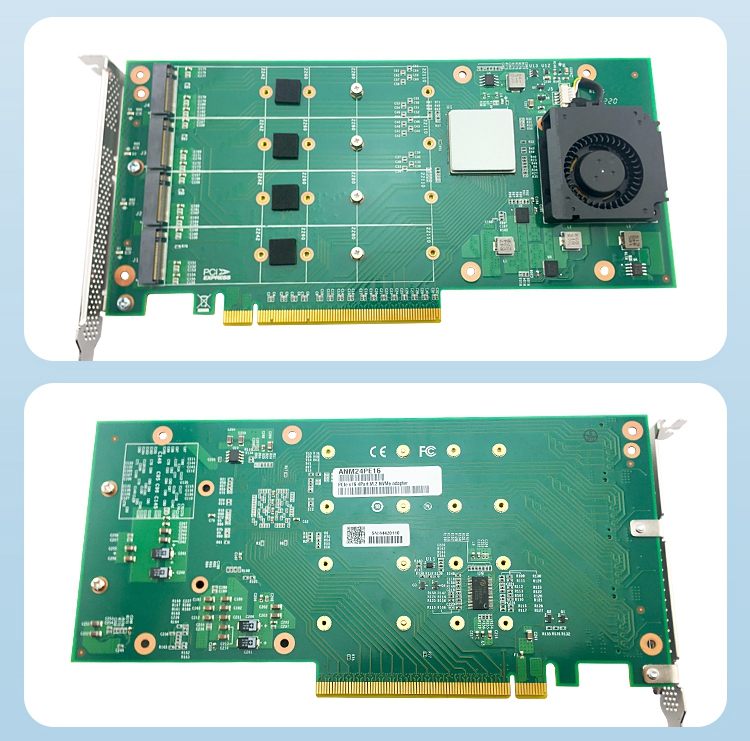

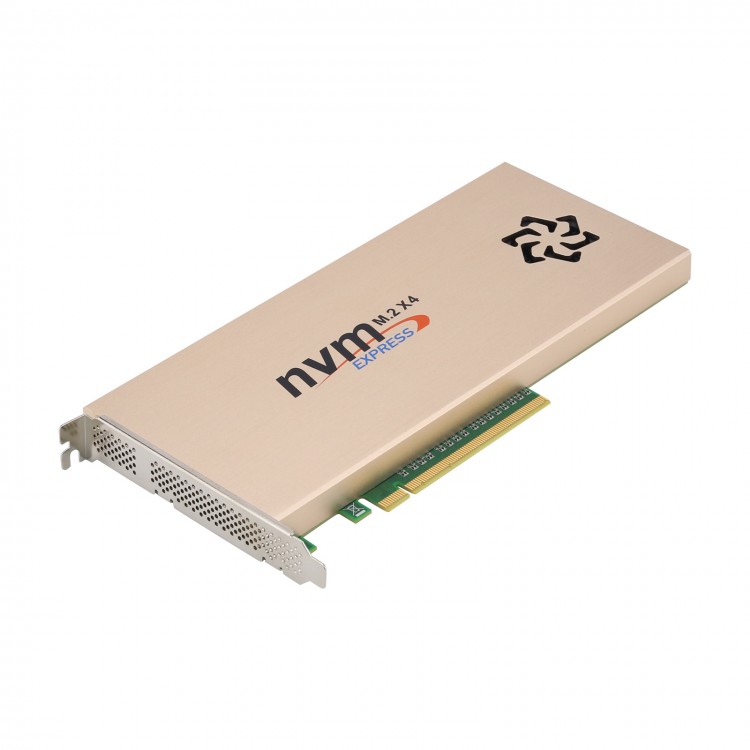

CEACENT ANM24PE16 4-Port NVME Expansion Card M.2 Expansion Card PCI-E 3.0x16 for M.2 NVME Hard Disks

CEACENT ANM24PE16 4-Port NVME Expansion Card M.2 Expansion Card PCI-E 3.0x16 for M.2 NVME Hard Disks

Features:
- NVMe M.2 4-port expansion card
- Support standard M.2 NVMe hard disks
- No motherboard is required to support split PCle
- ANM24PE16 PLX8748 chip: It supports splitting and enables easy expansion without motherboard. It supports up to 4pcs NVME m.2 hard disks. For Intel and other NVMe hard drives that comply with standard protocols

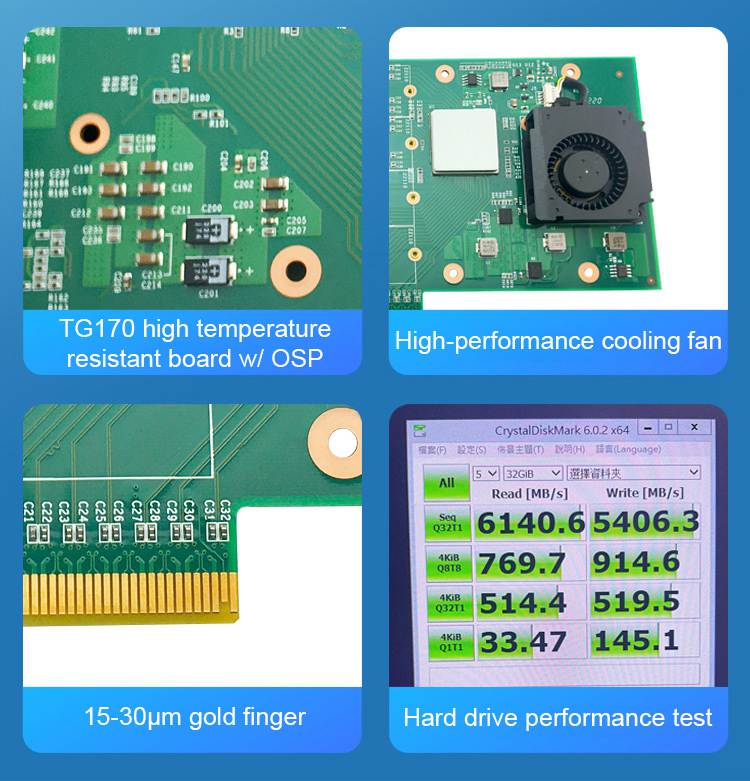

- TG170 high temperature resistant board with OSP process
- Cooling fan of high performance
- 15-30μm gold finger

Specifications:
- Brand: CEACENT
- Model: ANM24PE16
- Bus interface: PCl Express 3.0 x 16
- Chip: PLX8748 chip

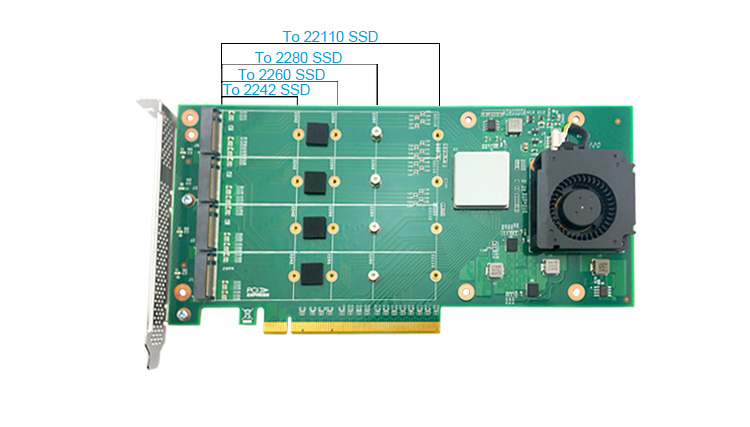

- Connector type: M.2M-key connectors
- Channel: 4 ports
- PCIE bus: PCl Express 16X
- LED indicator: Each M.2 port has a LED indicator
- Bracket height: Full height bracket
- Power protection: 5A
- PCB version: REV:A
- Certifications: FCC, CE and ROHS
- Applicable field: PCI Express 3.0x16 device
- Working environment: 0°C to +55°C; Humidity 85%
- Storage environment: -20°C to +65°C; Humidity 85%

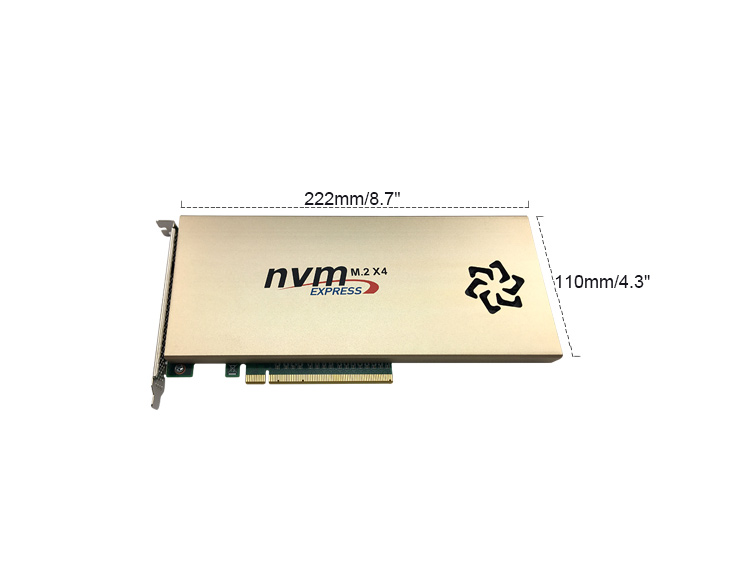

- Dimensions: 222 x 110mm / 8.7 x 4.3"
- Supported operating systems: mainstream systems supporting NVMe protocol

Package Included:
- 1 x NVME M.2 Expansion Card

Note:
- Hard disks are not included in the package.
