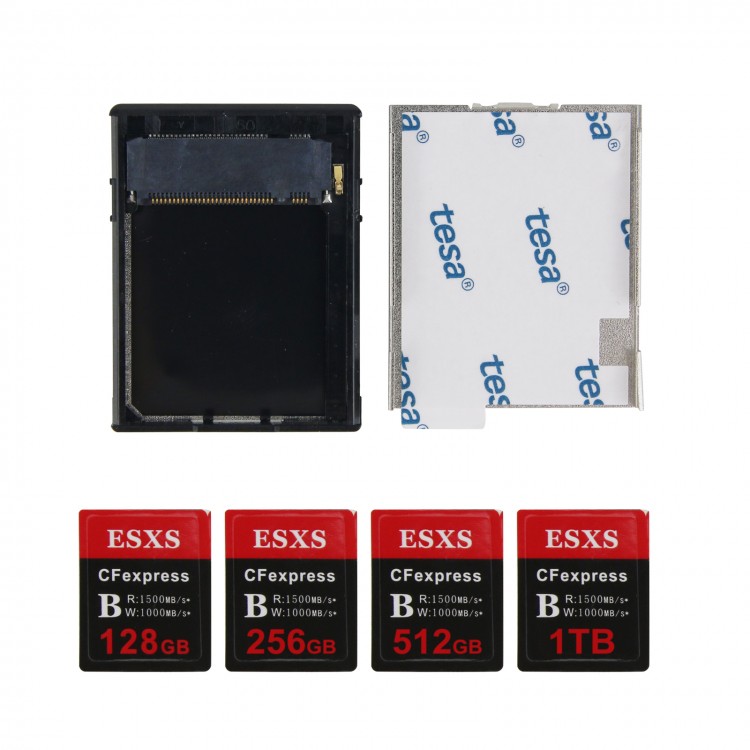

CFexpress Card 128GB/256GB/512GB/1TB For Canon R5 Nikon Z6/Z7 CFexpress Memory Card DIY Kit

CFexpress Card 128GB/256GB/512GB/1TB For Canon R5 Nikon Z6/Z7 CFexpress Memory Card DIY Kit

Description:
● Domestic CFexpress memory cards are all transfer card solutions or board-moving solutions, so you can DIY it yourself, and there is no difference in performance. SSDs can be selected from major brands and the quality is guaranteed.
● No speed loss after conversion, can reach the limit speed of CFexpress interface.
● Taiwan shell, good workmanship of the adapter plate, the upper and lower grounding shrapnel can also be used as a channel for heat transfer
● There are three options for DIY, each with its own advantages and disadvantages.
- Solution 1: SSD is all built-in. In order to reduce the difficulty of DIY, we only recommend SN530 2230 specification M.2 NVMe SSD for Western Digital, because there are more parts that can be polished, which is relatively easy. After the full built-in, the appearance is good.
- Solution 2: BG4 2230 has very few PCBs that can be polished. You can open a 22MM hole at the back of the casing. The SSD will expose 1MM. If this 1MM is worn off, some camera covers can be covered. If there is no impact, no need to polish the SSD.
- Solution 3: BG4 2230 has a full built-in solution. Because of the need to grind the gold finger, the success rate is too low and the SSD is easy to be damaged. It is not recommended. If you want to know, you can consult customer service.
● SN530 full built-in video tutorial for Western Digital: https://www.bilibili.com/video/BV1k64y1k7qS/

Support Cameras:
- For Canon: EOS R5/1DX Mark III/C300 Mark III/C500 Mark III
- For Nikon: Z6/Z7/D5/D500/D6/D850
- For Panasonic: DC-S1/S1R

Attention:
1. The SSD used for retrofitting needs to be prepared by yourself.
2. Kraft thermal silica K-5204 or K-5205 for fixing and heat conduction needs to be prepared by yourself.
3. A card reader must be used for the pre-test. If your camera does not have a cover, and it may not be pulled out after inserting it into the camera. After the test is completed, you can put on the thermal silica gel, seal the cover, and the cover cannot be removed after the cover is sealed.
4. Due to the cutting of the rear part, be careful to contact with the shell to form a short circuit, and isolate it with heat-resistant tape.
5. The length of the M.2 NVMe SSD 2230 exceeds the length of the CFe card. It is necessary to polish a part of the PCB board during DIY. There are some risks, certain hands-on ability are needed.
6. For Canon R5 shoots 8K, only recommend (for Kioxia) BG4.
7. This kit is a special product, it has passed tests before shipment.

Technical Parameters:
- Brand: For ESXS
- Model: CFexpress memory card DIY kit
- Interface: CFexpress
- External dimensions: 38.5*29.8*3.8mm
- Weight: about 7.5g
- Temperature: 0℃ to 60℃
- Humidity: 20% to 90% (non-condensing)

Package Included:
- 1x CFexpress DIY Kit
