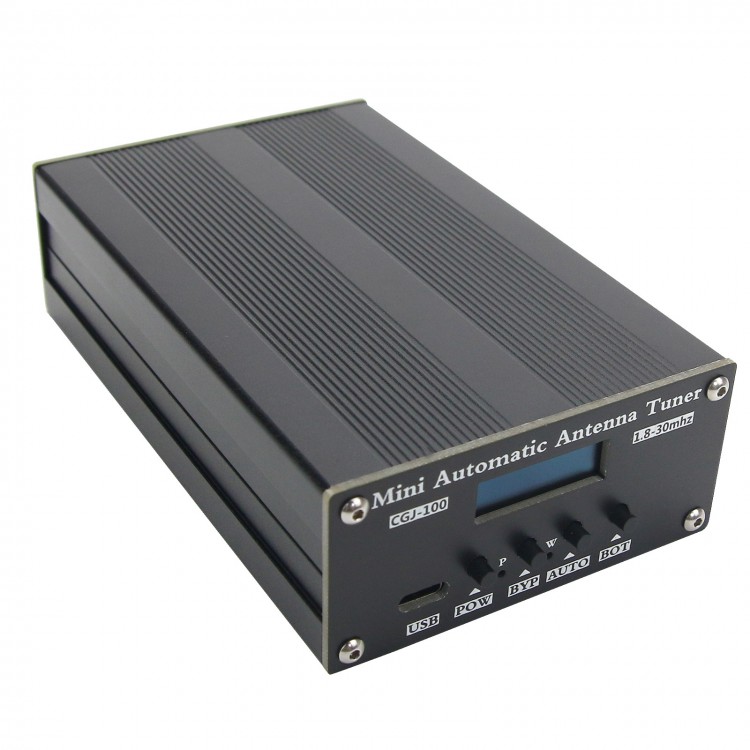

CGJ-100Q 1.8-30MHz Mini Automatic Antenna Tuner 0.91" OLED Display For 1-40W QRP Shortwave Radios

Availability: In stock, usually dispatched in 1 business day

  • Price:$82.53
  • Price in reward points: 825 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $80.88 $79.23 $76.75 $73.45 Contact US
Quantity:

CGJ-100Q 1.8-30MHz Mini Automatic Antenna Tuner 0.91" OLED Display For 1-40W QRP Shortwave Radios

Version Comparison:

- CGJ-100Q: For QRP shortwave radios with 1-40W.
- CGJ-100: For high-power shortwave radio stations using 5-100W.

Features:
- Mini short-wave automatic antenna tuner.
- TYPE-C charging interface, M connector.
- With a 0.91-inch OLED display.
- This antenna tuner is automatically tuned and does not require any control wires, suitable for most radio stations.
- The device contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping 1.8-30MHz amateur radio HF band.

Specifications:
- Power supply voltage: USB charge and discharge
- Maximum current consumption: 400ma
- Maximum working throughput: 100W
- Maximum possible measurement power: 150W
- Minimum power required to start tuning: 5W
- Minimum possible measurement power: 0.1W
- Measurement steps for power up to 10W: 0.1W
- Measurement steps for power higher than 10W: 1W
- Power measurement accuracy: 10%
- Maximum installation inductance: 8.53uH
- Minimum installation inductance step size: 0.05uH
- Maximum installation capacitance: 1869pF
- Minimum installation capacitance step: 10pF
- 4pcs panel buttons: POW, BYP, AUTO and BOT function
- Display: 0.91" OLED

Package Included:
- 1 x Automatic Antenna Tuner

Note:
- The device does not consider its own efficiency.
- Battery is not included in the package.
- Supply voltage is 5V standard voltage.
