Chakra Switching Power Supply Filter Power Purifier to Purify 5-12V and for 5V Low-Power Devices
Description:
The Chakra switching power supply filter uses the active filtering function of the original Chakra power supply, which can purify the voltage from 5 to 12V. Except for the 5V regulator port, the input voltage and output voltage of the other 2 ports are the same.
Its input interface is DC5.5*2.1, with internal positive pole and external negative pole. Maximum output current is 2A.

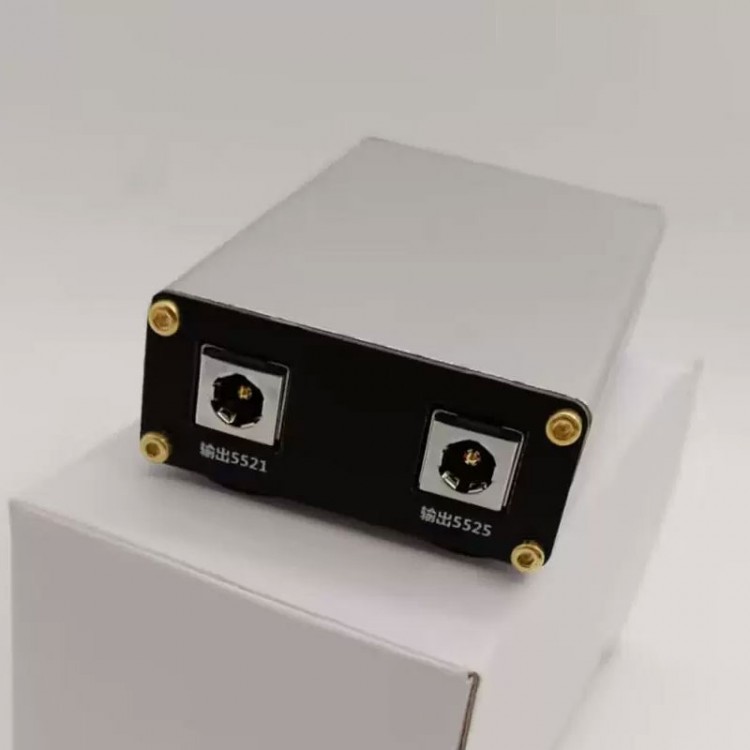

There are two output interfaces, including a DC5.5*2.1 and a 5.5*2.5 interfaces. There is a low noise 5V output in the LT3080 design for use in 5V low power devices. The maximum current of the 5V output is 500mA. Please not use it for 5V high-power devices.
If 5V high power is required, it is recommended to use a 5V input and a filtered output of 5V.
It is recommended to use one input and one output.
Small size: 85 x 50 x 22mm/3.3 x 2 x 0.9". G.W.: 0.4kg/0.9lb.
Package Included:
- 1 x Power supply filter
