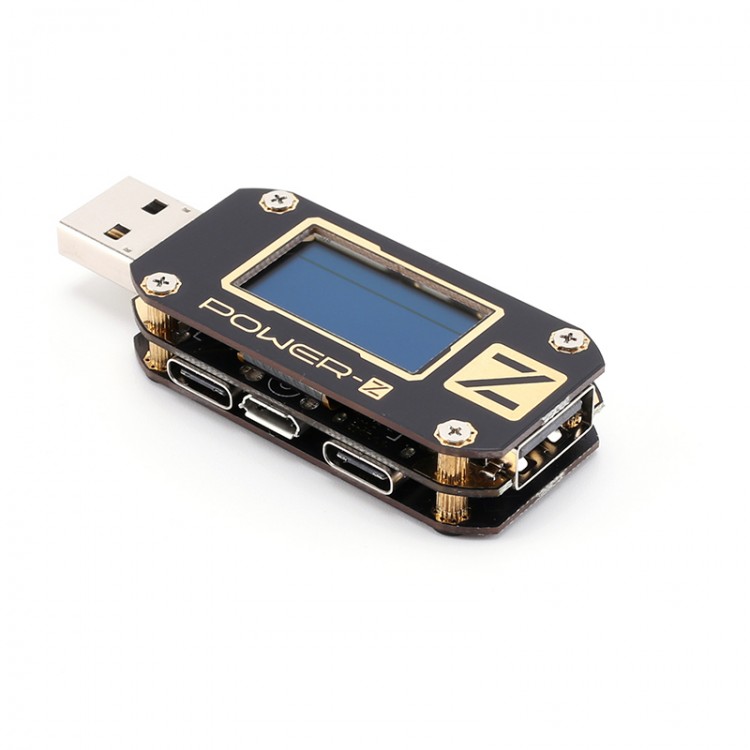

POWER-Z USB Tester QC3.0/PD Digital Voltage Current Amp Volt Type-C Meter Power Bank Detector KM001

Availability: In stock, usually dispatched in 1 business day

  • Price:$53.82
  • Price in reward points: 538 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $52.74 $51.67 $50.05 $47.90 Contact US
Quantity:

POWER-Z USB Tester QC3.0/PD Digital Voltage Current Amp Volt Type-C Meter Power Bank Detector KM001

Description:
- Support Agreement: USB PD, Qualcomm QC 3.0/2.0 and other fast charge.
- This PD instrument fully taking into account the complexity of the charging physical interface replacement, as well as the diversity of charging protocols,the most common USB-A interface, Micro USB port, Type-C interface integrated together.
- POWER-Z KM001 comes with an OLED screen resolution of 128x64. The front panel with black glass fiber gold-plated, four corners of the use of immersion gold hole fixed.
- USB table built-in a measurement accuracy of 0.02%, temperature drift for the 10ppm voltage and current ADC dedicated chip.
  At the same time in order to ensure the accuracy of the current, but also integrates a typical temperature drift of 20ppm, power of 3W high-quality sampling resistor. Up to 0.01% error.
- POWER-Z KM001, this test table integrates a total of six USB ports, to meet the needs of most of the players test.
- Another feature of it is to support ripple testing.
  Its function is similar to a micro-oscilloscope,you can test less than 50Hz ripple,the daily use of enough.

Specification:
- Product Series: POWER-Z
- Product Type: KM001
- Product Name: Portable USB PD Tester
- Main Control IC: Cortex tm-M3 72MHz
- Display Screen: OLED 128x64 50MHz(Refresh rate 50/s)
- Internal Storage Memory Life: About 30 years random storage algorithm
- Interface: USBA/Micro USB/TYPE-C.
- Power Supply Type: HID port 5V,other port self pickup electricity 3.7-24V.
- Maximum Input Voltage: 24V
- Working Current: 4-15mA (Standby 3mA#5V)
- QC2.0 QC3.0 Test Sniffing: Support
- Power Delivery Test Sniffing: Support; Pro version support PD2.0 protocol packet acquisition
- Typical Interface Contact Resistance: TYPE-C to TYPE-C 28m ohm/TYPE-A to TYPE-a 30m ohm.
- Line Resistance Evaluate: Support
- Offline Data: 2560x5 group 512KBIT memory
- Dimension: 62x24x12mm
- Color: Black
- Weight: 20g

Note:
- POWER-Z KM001 can detect the PD protocol devices. You can set the output voltage manually.
- Professional version POWER-Z is also with new function, that can use computer software to collect PD2.0 communication data through the input and output of Type-C. This function is very useful for engineer to develop/measure products.
