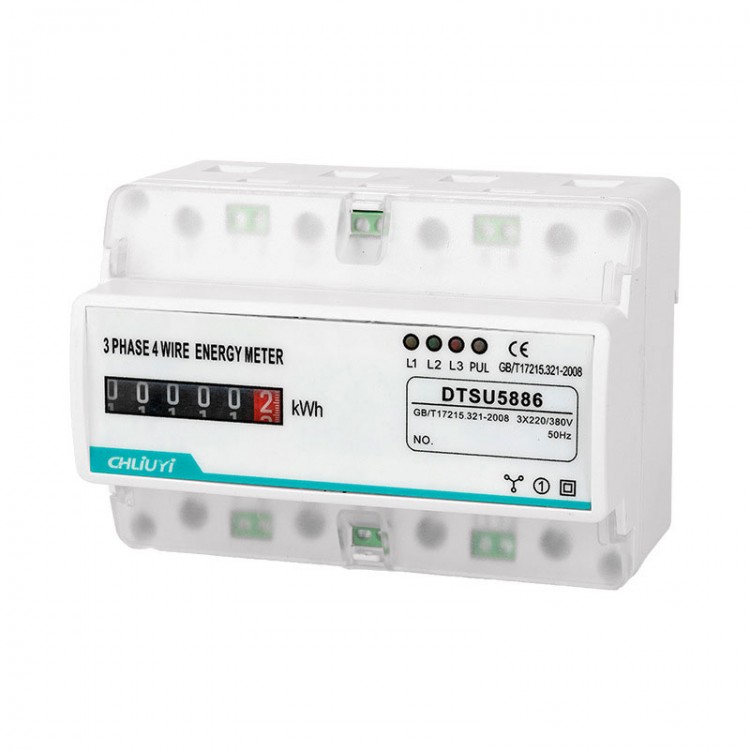

CHLIUYI DTSU5886 3-Phase 4-Wire 7P Energy Meter Electricity Meter (Counter Version 10-100A)

CHLIUYI DTSU5886 3-Phase 4-Wire 7P Energy Meter Electricity Meter (Counter Version 10-100A)

Version Comparison:
* Counter version: Counter + Active energy metering
* LCD version: LCD screen + Active energy metering
* Version with RS485 ports: RS485 ports + backlit display + active (bidirectional) energy metering, reactive power, current, voltage, power, and other electrical parameters.

Features:
* The three-phase electricity meter supports real-time display, enabling easy monitoring of electricity usage.
* Class 1.0 accuracy ensures low measurement error. Class 1.0 accuracy means the permissible error is within 1%. It is strictly produced and tested according to standards.
* Compact and lightweight design
* The housing is made of thickened flame-retardant ABS to prevent potential fire hazards caused by meter overload.
* It supports 35mm DIN rail installation for quick and easy mounting.
* No distinction between top and bottom wiring. Say goodbye to traditional wiring methods—installation is now simpler. Screws are less likely to strip and it is compatible with C45 DIN rail mounting.

The following are commonly used reference values for power ratings, for reference only:
Single-phase 220V Power:
1.5 (6) A → Power: 1.32 kW
2.5 (10) A → Power: 2.2 kW
5 (20) A → Power: 4.4 kW
10 (40) A → Power: 8.8 kW
15 (60) A → Power: 13.2 kW
20 (80) A → Power: 17.6 kW
30 (100) A → Power: 22 kW

Three-phase four-wire Power:
1.5 (6) A → Power: 3.96 kW
2.5 (10) A → Power: 6.6 kW
5 (20) A → Power: 13.2 kW
10 (40) A → Power: 26.4 kW
15 (60) A → Power: 39.6 kW
20 (80) A → Power: 52.8 kW
30 (100) A → Power: 66 kW

Three-phase four-wire 100V Power:
1.5 (6) A → Power: 1.039 kW
2.5 (10) A → Power: 1.039 kW

Three-phase four-wire 100V Power:
1.5 (6) A → Power: 3.948 kW
2.5 (10) A → Power: 13.163 kW
5 (20) A → Power: 26.326 kW
10 (40) A → Power: 26.326 kW
15 (60) A → Power: 39.489 kW
20 (80) A → Power: 52.652 kW
30 (100) A → Power: 81.6 kW

Specifications:
* Item Name: Energy Meter
* Model: DTSU5886
* Rated Voltage: 3 × 220/380V
* Frequency: 50Hz
* Current: 3 × 10(100)A
* Accuracy Level: Class 1.0
* Power Consumption: ≤ 2W/5VA
* Dimensions: 126mm × 78mm × 91mm

Packing List:
* 1 x Electric Meter

Packaging Details:
* Weight: 0.25kg
