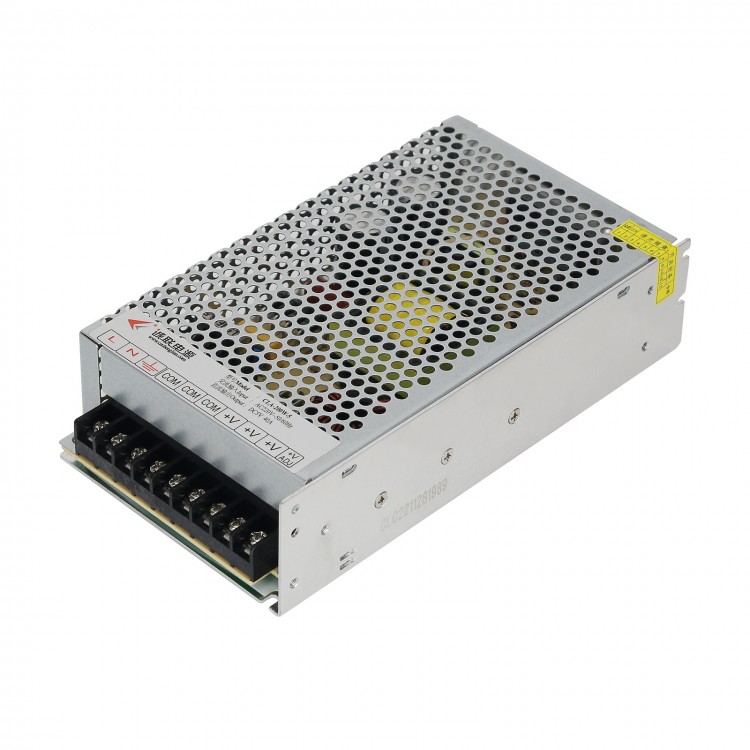

CLA-200-5 5V 40A 200W LED Screen Power Supply Switching Power Supply for Full Color LED Display

CLA-200-5 5V 40A 200W LED Screen Power Supply Switching Power Supply for Full Color LED Display

Specifications:
- Power supply model: CLA-200-5
- Power specification: 5V 40A
- Dimensions: 199 x 110 x 50mm/7.8 x 4.3 x 2"
- Wiring instructions: L(AC)N FG (input) COM COM COM +V +V (output)

Input:
- Input voltage range: 176V-264VAC
- Input rated voltage range: 180V~250VAC
- Input voltage frequency: 50/60Hz
- Average Input Current: 1.8A (220VAC)
- Machine efficiency: ≥78% (typical)

Output:
- Output factory voltage: 5-5.1V
- Quiescent output voltage range: 5V±0.5V
- Output rated current: 40A
- Output ripple noise (Vp-p): 150mV at 25°C
- Power-on delay time: ≤2S

Protection:
- Output over-voltage protection: None
- Output over-current protection: Yes (50A~60A)
- Output short-circuit protection: Yes
- Short-circuit protection mode: LOCKOUT [Note: To remove the short-circuit (hold load) requires a reboot to resume operation]

Environment:
- Operating ambient temperature -10°C to +50°C
- Storage temperature: -20°C to +85°C
- Heat dissipation mode: self-cooling

Electrical Strength:
- Input to output: 1500VAC/1min and leakage current≤2.0mA;3000VAC/1min and leakage current≤3.5mA (optional)
- Input pair FG: 1500VAC/1min and leakage current≤2.5mA
- Output pair FG: 500VAC/1min and leakage current ≤2.0mA

- Dielectric strength: 100Mohm Max at 500VDC
- Leakage current: ≤0.75mA at AC240V
- Ground resistance: 100mohm at 8V/25A
- Safety standard: designed according to GB4943/EN60950

Testing Equipment:
- MW-MOS-620 20MHz oscilloscope and FT6306A DC electronic load
- UT39A digital multimeter, 8715B digital power meter and 3KV voltage regulator
- TOS5050A withstand voltage tester and DZ2620 leak tester
- WB2678A grounding resistance tester and ZC25B-3 megohmmeter

Package Included:
- 1 x LED Power Supply
