• CM4 Mini IO Expansion Board (R3) with Case Four-core Cortex-A72 CPU Gigabit Ethernet 1000Mbps for Raspberry Pi 3B+

CM4 Mini IO Expansion Board (R3) with Case Four-core Cortex-A72 CPU Gigabit Ethernet 1000Mbps for Raspberry Pi 3B+

Availability: In stock, usually dispatched in 1 business day

  • Price:$36.47
  • Price in reward points: 365 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $35.74 $35.01 $33.92 $32.46 Contact US
Quantity:

CM4 Mini IO Expansion Board (R3) with Case Four-core Cortex-A72 CPU Gigabit Ethernet 1000Mbps for Raspberry Pi 3B+

Description:

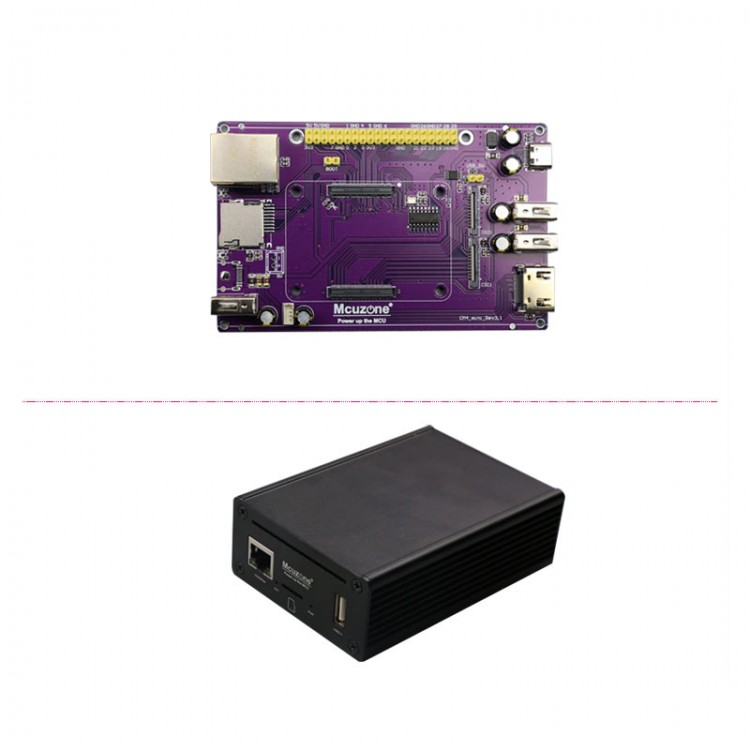

- The CM4 Mini IO board is based on the Raspberry Pi Compute Module 4 core board, which has a native Gigabit Ethernet and four USB2.0 ports extended from the native USB2.0. It also has a self-elastic TF card socket, the CM4 core board with or without eMMC can be supported. The onboard standard HDMI interface supports 4K resolution output. It also has a CSI1 and DSI1 interface.
- The board uses USB-C as a multi-function port. In addition to power supply, users can adjust the two jumpers on the board according to actual needs to achieve the functions of USB-HOST, USB-Device, and eMMC flash. In order to be compatible with various sensors of the Raspberry Pi, a 2.54mm pitch 40pin standard GPIO interface and fixing holes on both sides are included.

Package Included:
- 1 x Expansion Board
- 1 x Case
