CM6631A USB Digital Interface Module High Speed Asynchronous Audio Processor USB to IIS SPDIF Coaxial Support 384kHz
Description:
- Cmedia CM6631A is a USB2.0 high-speed asynchronous audio processor, it can support USB Audio Class2.0, up to 384KHz/32bit HD audio processing capability.
- The CM6631A provides standard IIS output and also integrates a 192KHz/24bit S/PDIF Transmitter/Receiver
- This product is designed with CM6631A as the core, and uses low noise and stable voltage LDO power supply.
- The output SPDIF(namely coaxial) interface is reserved on the USB module for the convenience of buyers.
- CM6631A driving program: https://pan.baidu.com/s/1KZ0-b5BFk0d-fVKFHItXmw?pwd=6666
Specification:
- Input: USB-B interface

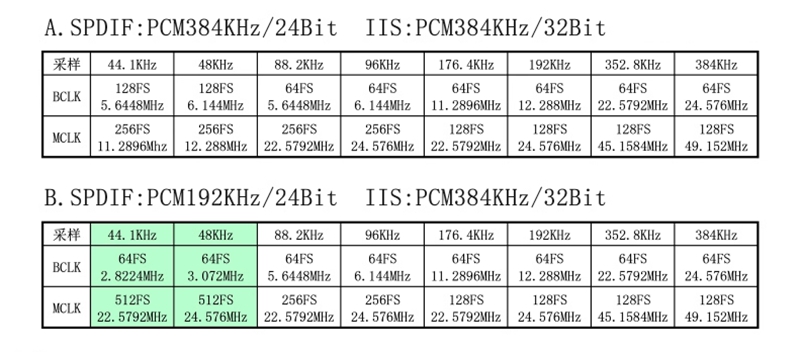

- Output: 2 output versions. The A version is issued by default, please contact our customer service if you want the B version before payment.
- Power supply: USB interface power supply, no need for extra power supply
- Size: 69mm x 30mm
Package Included:
- 1 x USB Module
