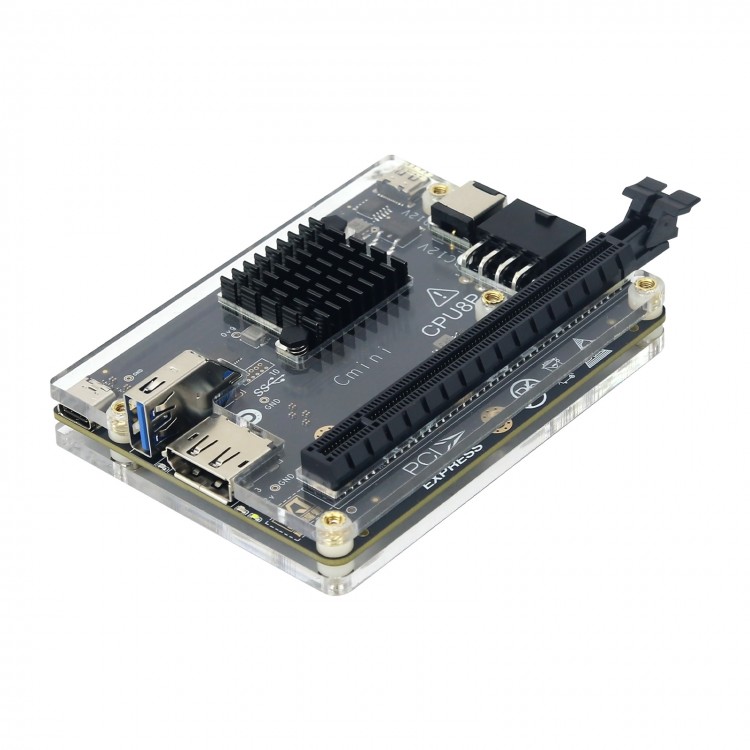

Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock Type-C Charging

Availability: In stock, usually dispatched in 1 business day

  • Price:$85.67
  • Price in reward points: 857 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $83.96 $82.24 $79.67 $76.25 Contact US
Quantity:
Buy it now Add cart

You might like

Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with SFX Bracket

Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with SFX Bracket

$108.66

(0)
Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with SFX Bracket + 60cm Thunderbolt4 Cable

Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with SFX Bracket + 60cm Thunderbolt4 Cable

$118.22

(0)
Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with SFX Bracket + 100cm Thunderbolt4 Cable

Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with SFX Bracket + 100cm Thunderbolt4 Cable

$122.11

(0)
Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock Type-C Charging with 60cm Thunderbolt4 Cable

Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock Type-C Charging with 60cm Thunderbolt4 Cable

$94.33

(0)
Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with 100cm Thunderbolt4 Cable

Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with 100cm Thunderbolt4 Cable

$98.22

(0)
Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with ATX Bracket

Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with ATX Bracket

$110.45

(0)
Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with ATX Bracket + 60cm Thunderbolt4 Cable

Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with ATX Bracket + 60cm Thunderbolt4 Cable

$120.00

(0)
Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with ATX Bracket + 100cm Thunderbolt4 Cable

Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock with ATX Bracket + 100cm Thunderbolt4 Cable

$123.89

(0)
Cmini High Speed GPU Expansion Dock JHL7440 High Power Graphics Card Expansion Dock Type-C Charging

Interface and Description:
- Type-C PD power supply input: It is necessary to connect a Type-C power adapter with PD protocol, and the port supports PD2.0 12V 5A 60W power supply (backward compatible). (Note: When this port is not used for power supply, device insertion is prohibited.)
- DC5525 12V power supply input: an adapter with a power supply voltage of 12V and a DC5525 interface must be inserted.
- CPU 8PIN power supply input: standard CPU 8PIN ATX power interface, input only.
- Thunderbolt interface: Thunderbolt 3/Thunderbolt 4/USB4 input ports, 40Gbps speed.
- USB-A 1-Gbps interface: supports USB 10Gbps speed and is backward compatible with USB 2.0/1.1.
- DP1.4 output port: bandwidth 8.1x4=32.4Gbps, HBR3 standard, backward compatible.
- PCI Express 3.0 x 16 slot: the slot specification is x16, and it actually supports a maximum PCle3.0x4 24Gbps link rate (backward compatible).

Specification:
- Main control chip: for JHL7740
- Product size: 13 x 8 x 1.7cm
- Weight: 150g
- Bandwidth: 300MB=23.5Gb=2.94GB
- Operation system support: for Windows10/11, Linux (Ubuntu/Centos/Archlinux), MacOS (for intel chip can be connected to GPUs, M series processor connected to network card/acquisition card and other devices)
- Thunderbolt hot plug: support
- Reverse charging: not supported
- Support independent GPU:
  For NVIDIA: GT210-RTX4090, Tesla series
  For AMD: HD7870-RX7900XTX
  For Intel: support, but not recommended
  For Moore Threads: not supported
- Daisy chain: support
- Power supply: desktop power supply (ATX/SFX/FLEX), PD3.0 power supply (up to 60W), DC power supply (up to 120W)
- Shell: acrylic
- Other interfaces: one Thunderbolt interface, one 10G-USB-A interface, one 18G-DP1.4a interface

Package Included:
- 1 x GPU Expansion Dock
