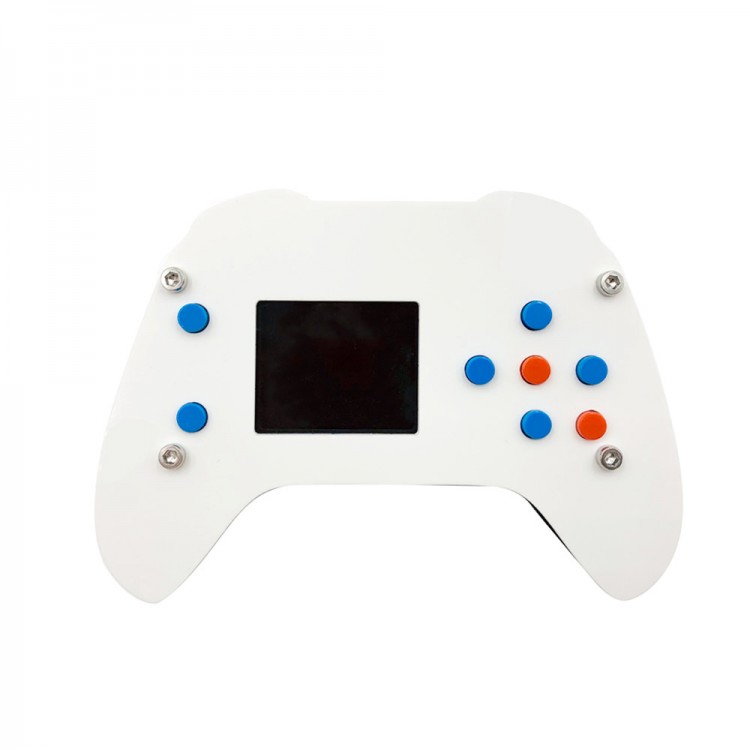

CNC 1.8 Inch Offline Controller LCD Screen for CNC 3 Axis GRBL Laser Engraving Machine
1. Manual Check: Manually adjust the X, Y, Z axis position as the starting point of engraving, manually turn the spindle on or off, and manually turn the cooling fan on or off.
2. Engraving Files: After the offline controller saves the file, you can connect the GRBL control card and the engraving process without connecting the PC to the computer.
3. Save the File: After the offline controller is connected to the PC, it is recognized as a USB, mass storage device, which can directly affect the access file.

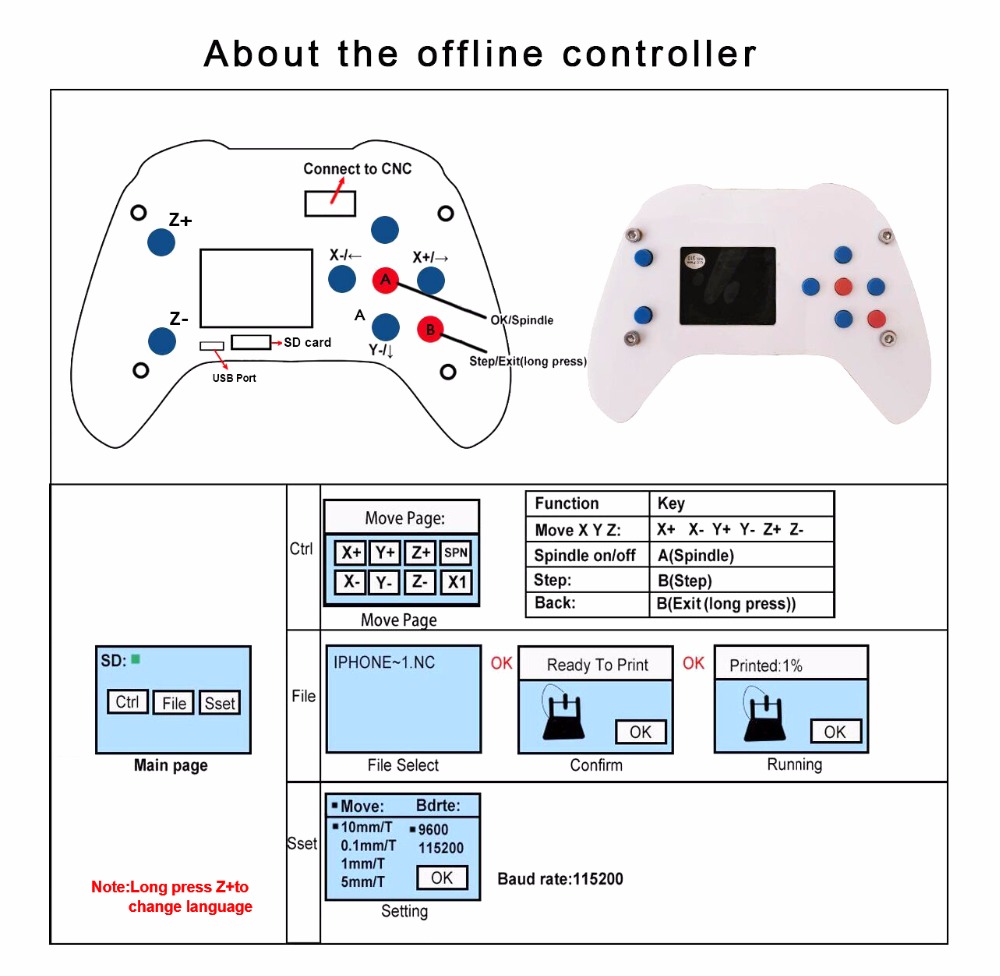

-Press the Z+ and Z-:Z axes to move up and down.
-Press the X+ and X-: X axes to move left and right.
-Press Y+ and Y-: Y axis to move back and forth.
-Press SPIN: Spindle is on (laser on), spindle is off (laser off).
-Press Z+ 5 seconds: Change the language to English.
1 x Offline Controller
