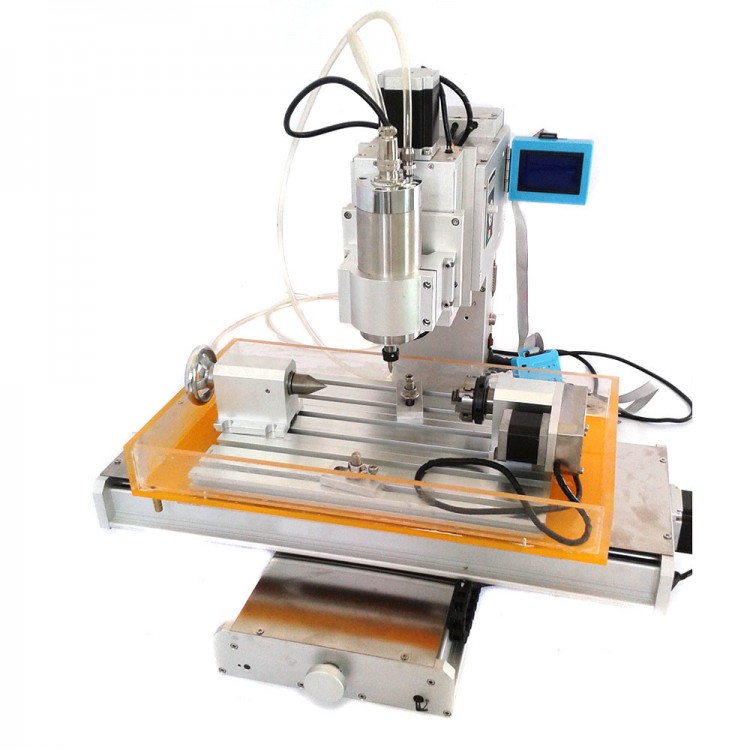

CNC Router Engraving Machine with 4 Axis Driver Board Ball Screw 1500W Spindle Motor HY3040

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,987.00
  • Price in reward points: 19870 Reward Points: 199
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,947.26 $1,907.52 $1,847.91 $1,768.43 Contact US
Quantity:

CNC Router Engraving Machine with 4 Axis Driver Board Ball Screw 1500W Spindle Motor HY3040

Features

- Product Dimensions height 510 * length 660 * width 580 (MM)
- Effective stroke 300 * 400 * (150) (MM)
- 1605 precision ball screw
- XY rail diameter 20 plus hard chrome shaft diameter 16 Z-axis rail and hard chrome shaft.
- XYZ3 axis stepper 57 * 78 250 OZ / IN (2.2N/CM)
- Repeat positioning accuracy 0.01mm, precision 0.02MM
- Processing speed 0-4000MM / minute
- Maximum table load 50KG
- Stainless steel tailgate
- Integrated 24V350W Switching Power Supply
- 800 W water-cooled frequency spindle Industry
- 1500 W Industrial spindle drive
- 4 shaft professional driver board, with LCD digital display and handle, offline programming and path manually duplicaterecords offline processing
- 50 chuck axis stepper 42 * 48, the gear ratio of 1:3

Electrical performance (when ambient temperature Tj = 25 pm):
- Input Power: 220V or 110V AC power supply (Default 220V, if you need 110V AC, pls leave me a message )
- Work axis stepper: 200 pulses / 360 degrees, the entire 40-step driving pulse / 1MM
- Drive mode: two-phase 3.5A drive.
- Weight: about 35KG.

Package List:
- 1* HY-3040 CNC Engraving machine
- Accessories
