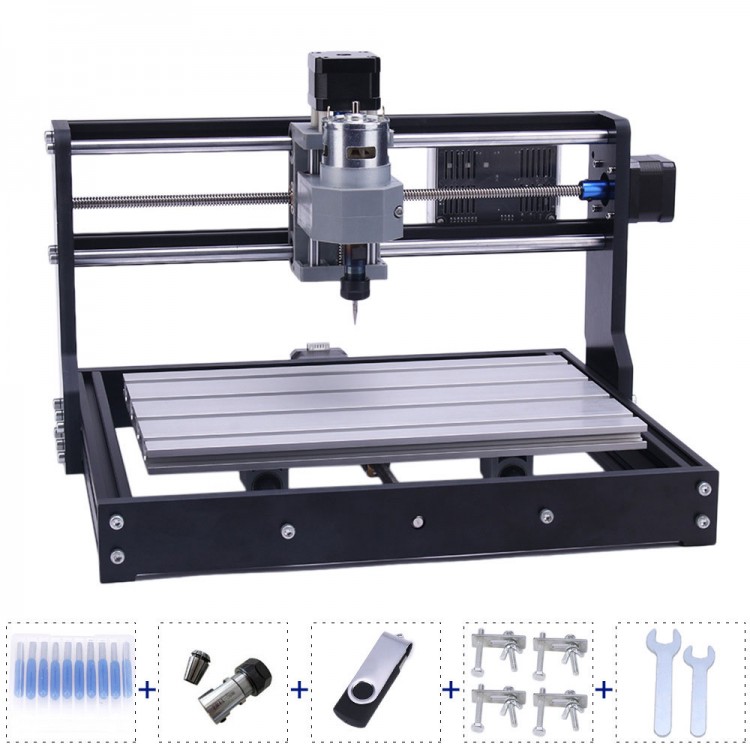

CNC3018 Pro 3 Axis CNC Router Kit Mini CNC Engraver Machine (Standard Version) for Beginners

CNC3018 Pro 3 Axis CNC Router Kit Mini CNC Engraver Machine (Standard Version) for Beginners

Features:
- 3 axis CNC router
- Mini CNC engraver machine
- Three-axis linkage and longer life
- Efficient heat dissipation performance and fine workmanship
- Quality materials ensure stable performance
- Aluminium table: Aluminum alloy is used for high-precision welding to strengthen stability
- It can work for a long time without affecting performance thanks to linear round rails and bearings
- Stepper motors: Sturdy and durable, with metal sidewalls. Matte texture to increase friction
- Control board: Imported chips and high subdivision ensures the stability of the machine, and improves its speed and accuracy

Application:
- Cutter head: can be used for plastic, wood, bamboo board, relief, flat carving, acrylic, horn, etc.
- Laser head (optional): can be used for softwood, leather, paper, plastic phone case, rubber stamp, photosensitive stamp, sponge paper, etc.

Upgraded Control Board:
1. GRBL1.1f firmware for stable performance
2. Offline engraving (optional offline module), offline tool settings and engraving
3. The laser supports PWM/TTL signal control, and the power is adjustable from 0 to 100% (optional laser module)
4. The spindle supports PWM power 0-100% adjustable
5. Stepper motor has over-current protection to avoid damage, integrated stepper motor drive, 2A high current and high stability
6. Laser directly into the picture engraving. No programming or design. Simple and convenient (optional laser module)
7. Professional shell protection and active heat dissipation by fan. No heat when used for a long time

Specifications:
- Model: CNC3018 Pro
- Control software: GRBL control
- Frame material: Aluminum + Plastic
- Effective travel: 300 x 180 x 40mm/11.8 x 7.1 x 1.6"
- Dimensions: 420 x 355 x 280mm/16.5 x 14 x 11"
- Drive motor: 1.3A stepper motor
- Lead screw: T8 lead screw
- Operating voltage: 24V 5.6A (110V-240V)
- Supported system: For Window XP/Win 7/Win 8/Win 10/Linux
- Spindle: 775 motor (12-36V) 24V: 700r/min; 36V: 900r/min
- Processing commands: Laser (optional): G-CODE, JPG, Dxf files / NC: G-CODE, TAB, NC, NCC files

Package Included:
- 1 x Machine frame
- 1 x Power supply
- 1 x Spindle motor

Note:
- Offline controller and laser head are not included in the standard version. The version with a laser module is optional.
- It needs to be assembled.
- Users are required to know how to create a tool path.

Packaging Details:
- Packing size: 450*260*190mm
- Package weight: 7kg
