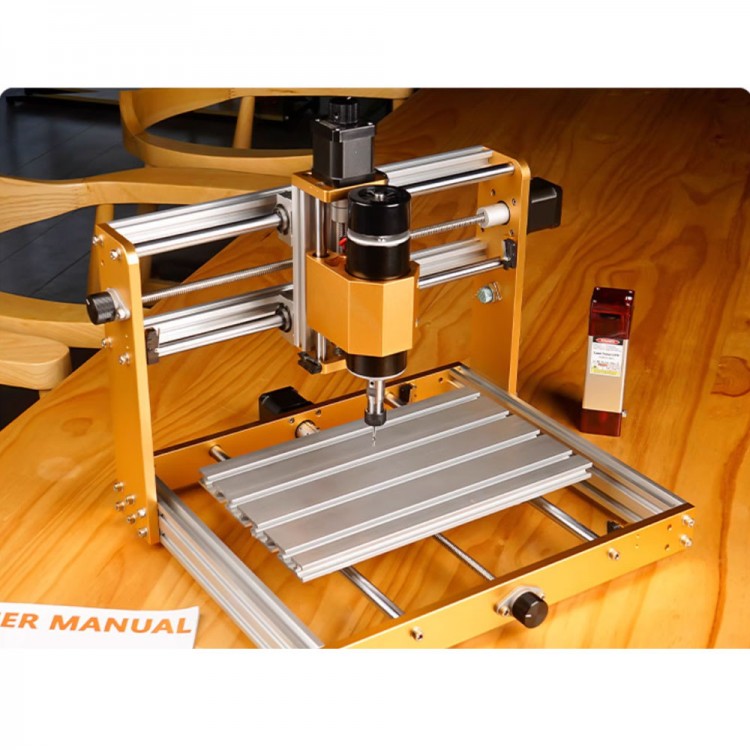

CNC3018Plus 2.0 3018 Pro Max Small CNC Router & Laser Engraving Machine w/ 500W Spindle & 10W Laser
Features:
Full Aluminum Body & 500W High-Power Spindle
* Fast speed, easy operation, for multiple materials, and all-in-one solution.
Offline Manual Control for a Different Experience
* Equipped with a 1.8" offline controller for manual operation, the machine can function independently of a computer, allowing direct control. Simple, convenient, and faster.
10 Advantages of the Upgraded Version
* New-generation spindle terminal, easy to use, and wire clamping is secure.
* Cable ties with mounting base and wire channels for easy cable management.
* Power supply bracket allows the power supply to be fixed to the back of the machine.
* Z-axis travel is 78-80mm (with limit switch installed).
* New integrated limit switch design prevents false triggers caused by metal debris.
* Z-axis strength significantly increased.
* Limit switch and motor wires are custom-length.
* Lead screw nut clearance adjustment structure improves engraving accuracy.
* Auxiliary tools can adjust the slider-nut spacing, facilitating machine assembly.
* Semi-finished product shipment for easy installation, saving assembly time.
CNC3018Plus 2.0 Product Parameters:
* Drive Chip: 3×A4988
* Motor: 42 Stepper Motor
* Working Area: 300mm × 180mm × 80mm
* Processing Accuracy: ±0.1mm
* Max Cutting Speed: 2000mm/min
* Manual Knob: Supported
* Spindle Power: 500W
* Emergency Stop: Supported
* Optional Laser: Supported (12V, 40mm size)
* Limit Switch: Supported (Total 6: X+, X-, Y+, Y-, Z+, Z-)
* Frame: Reinforced Aluminum Profile + Aluminum Alloy Plate
* Control Board: GRBL 1.1f
* Dimensions: 485mm × 415mm × 374mm
* Repeat Accuracy: ±0.025mm
* Max Speed: 5000mm/min
* Max Acceleration: 200mm/s²
* Coupler: Rigid Clamp Coupling
* Power Supply: 48V 500W
* Automatic Tool Setting: Supported (Tool presetter can be installed)
* Software: For Candle, UGS, LaserGRBL, LightBurn
* Applicable Materials: Plastic, Wood, Stone, Aluminum, Copper
Product Application:
* Acrylic Engraving
* Wood Cutting
* Eyeglass Temple Engraving
* PVC Cutting
* Insulation Board Cutting
* Relief Engraving
* Bamboo Engraving
* Laser Engraving
* Balsa Wood Engraving
Packing List:
* 1 × Set of CNC Engraver
Packaging Details:
* Weight: 13.5kg
