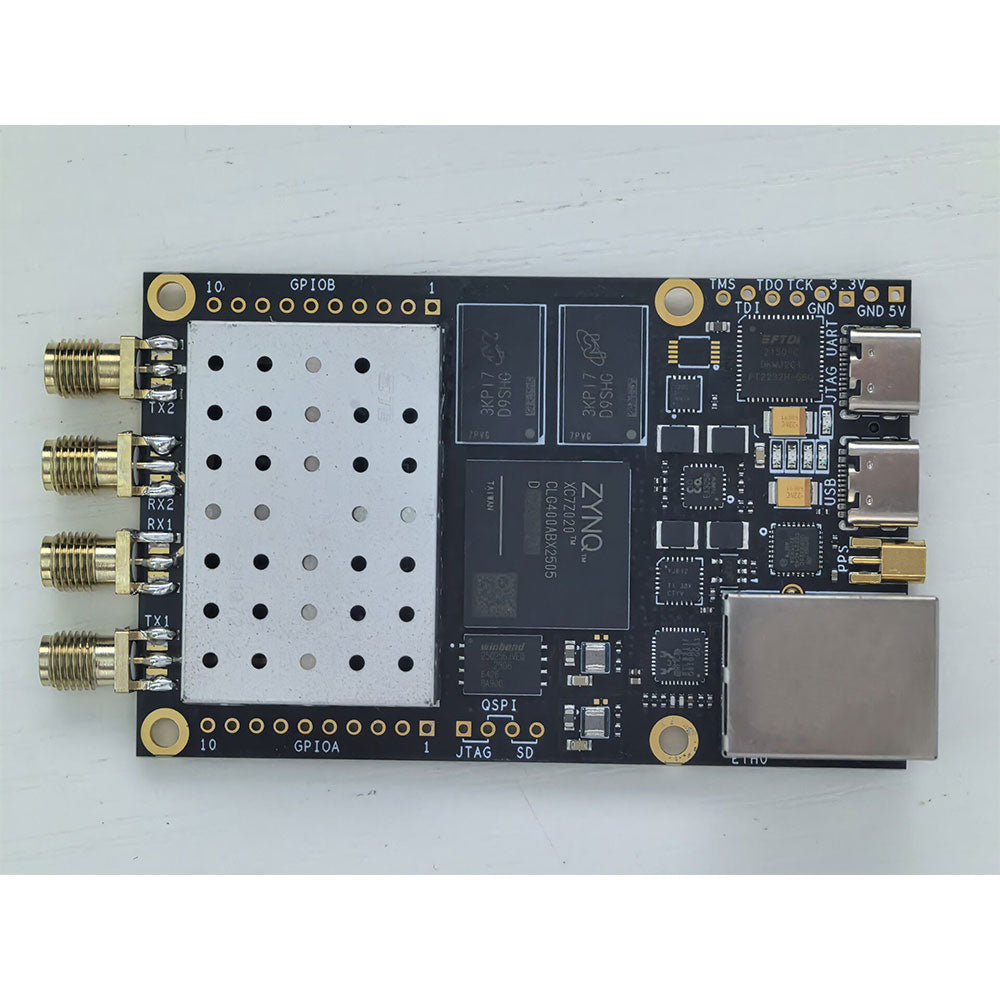

SDR-6002 70MHz-12GHz Spectrum Detection Module Support Sweep Frequency/Fixed Frequency Modes

Description:
- SDR-6002 is a simple dual channel radio spectrum detection module with a detection range of 70M-12G (Hz). The module scans the set frequency range in increments of 20MHz, calculates the spectrum data, and transmits it to the upper computer for display through the network port. The module also supports direct transmission of IQ data, providing support for the development of complex functional upper computer software.

- The module is designed based on FPGA+AD9363 architecture and has high integration. The module size is only 5x8CM, which is very suitable for application scenarios with limited size requirements.

- The module is based on AD9363 fast frequency hopping technology, achieving fast frequency scanning. Scanning 70M-6G only takes about 120ms.

- The module contains a gigabit Ethernet port that interacts with the upper computer through standard TCP/IP protocols, enabling maximum compatibility with different types of upper computers, including PCs, embedded MCU boards, Raspberry Pi, and more.

- The module is suitable for fields such as spectrum acquisition, wireless monitoring, instrumentation, communication testing, etc.

Features:
- Support configurable sweep start and sweep end. The narrower the sweep frequency band, the higher the number of data refresh frames.
- Supports fixed frequency mode, with a frequency setting step of 2Hz.
- Reception gain supports continuous configuration of 0~76dB gain, with a step size of 1dB.
- Self loop testing mode: The module includes two TX interfaces, which fixedly transmit single tone signals. The frequency of the signal can be adjusted (step of 2Hz), and the signal strength can be adjusted (step of 0.25dB, adjustment range of 0-89dB, maximum output of 7dBm at 1GHz).
- The module has frequency calibration function.
- The module has DC suppression function.

Core Parameter:
- Detection range: 70MHz - 12GHz
- Analysis bandwidth: 20.48MHz
- Sensitivity: -85dBm
- Full frequency scanning time: ≤120ms
- Quantization error: 2.4Hz

Specification:
RF Interface:
- Receiving channel: 2-channel, SMA interface, 50ohm impedance matching
- Transmitting channel: 2-chanenl, SMA interface, 50ohm impedance matching

Power Supply Interface:
- Power supply: Type-C debugging port power supply; power supply through 2 reserved via holes
- Power supply parameter: 5V DC (±5%), rated current of 2A
- Power consumption specification: typical power consumption about 4.5W, maximum power consumption ≤5.5W

Hardware Interface:
PS Side Interface:
- Gigabit Ethernet
- 1G bytes 32bit DDR3
- USB-OTG
- SD card slot (support up to 32GB)
- 32M QSPI Flash (used for storing programs and configuration files)

PL Terminal Interface:
- 16-Channel 3.3V GPIO (can be configured as input/output for extended control)

Mechanical Dimension and Environmental Adaptability:
- Board size: 5 x 8cm
- Board weight: < 100g
- Working temperature: 0℃ to 60℃
- Storage temperature: -40℃ to 85℃
- Relative humidity: 10% to 90% (non-condensing)

Package Included:
- 1 x Spectrum Detection Module
