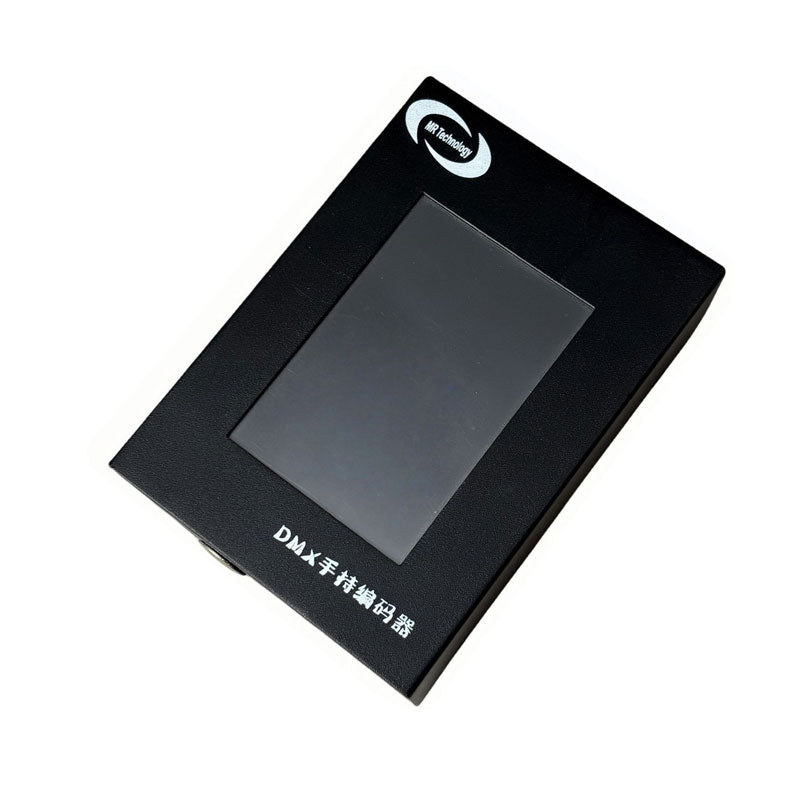

MR-WT35 Handheld DMX Encoder TTL Output RGB/RGBW DMX512 Addresser Light LED Controller DC6-24V/Type-C

Introduction:
- The MR-WT35 device can set parameters such as the number of loaded channels, baud rate, playback speed, color count, etc.
- Equipped with 1-port DMX512 signal output, its addressing signal is compatible and supports differential signal mode.
- Equipped with 1-port TTL signal output, supporting single wire and dual wire driver chips.
- Support output of 2M clock frequency and 6144 channel load.
- Supports addressing of multiple DMX512 chips, specifying the starting channel, the loaded channel of a single chip, and the lamp number, and verifying the addressing situation through automatic/manual testing mode.
- The device is equipped with various testing animation effects, such as multiple color gradients, automatic/manual running points, overall gradients, and more.
- Support brightness adjustment and single channel brightness adjustment functions.
- Equipped with an SD card slot, supporting SD card storage of animation data, and can specify a playback scene, and adjust the playback speed.
- Support Gamma correction adjustment settings and forward and backward data output settings.
- It can simulate the DMX512 console and can send channel data to any channel 1-512 in the DMX512 channel.
- Support standard RDM protocol, which can search, statically detect, and write DXM addresses through UID for RDM lamps.
- Support parameter setting, current output adjustment, brightness adjustment, and firmware upgrade for MR series chips.
- It has the function of taking colors from the color palette, which allows selecting a color value in the color palette for control, and supports multiple four-color modes.
- Equipped with support for Type-C port and DC6-24V direct insertion power supply (There is no built-in battery).
- Support multiple DMX512 channel automatic addressing and chip parameter settings, including MR, UCS, SM, TM, HI, HM, GS, customized DMX chips, etc.
- Support offline firmware upgrade and touch screen firmware update.
- Support multiple language switching modes.

Package Included:
- 1 x DMX Encoder
