AD8421 10MHz 35V/us Instrument Amplifier Module Weak Signal uV Voltage Single-end/Differential Amplifier Module

Specification:
- Module name: AD8421 module
- Module type: instrument amplifier module
- Power supply range: ±3V to ±18V

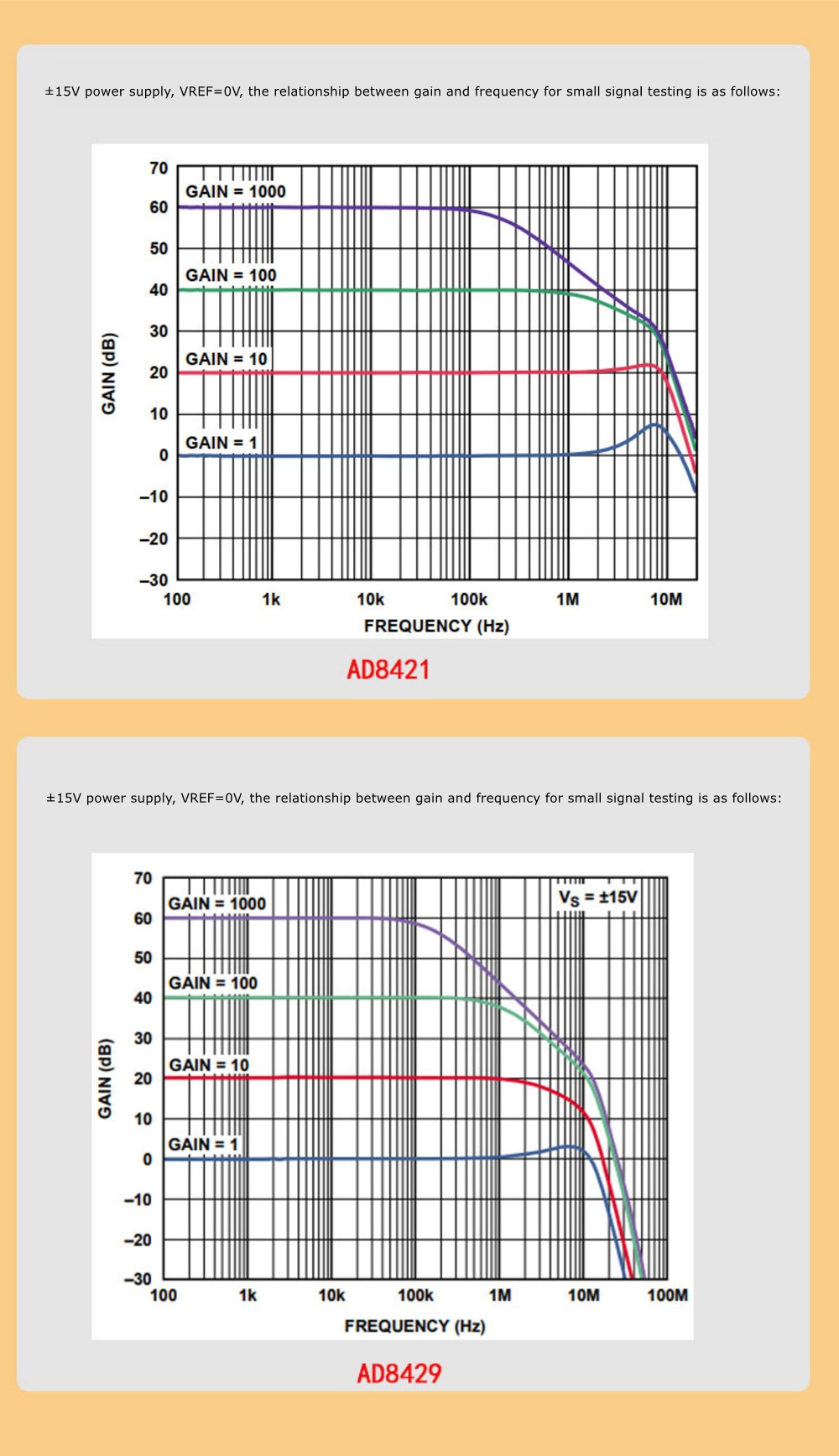

- Bandwidth: G=1, 10MHz
- Slew rate: 35V/us
- Gain range: 2 - 10000X [G=1+(9.9K ohm/RG)]
- Input impedance: high impedance

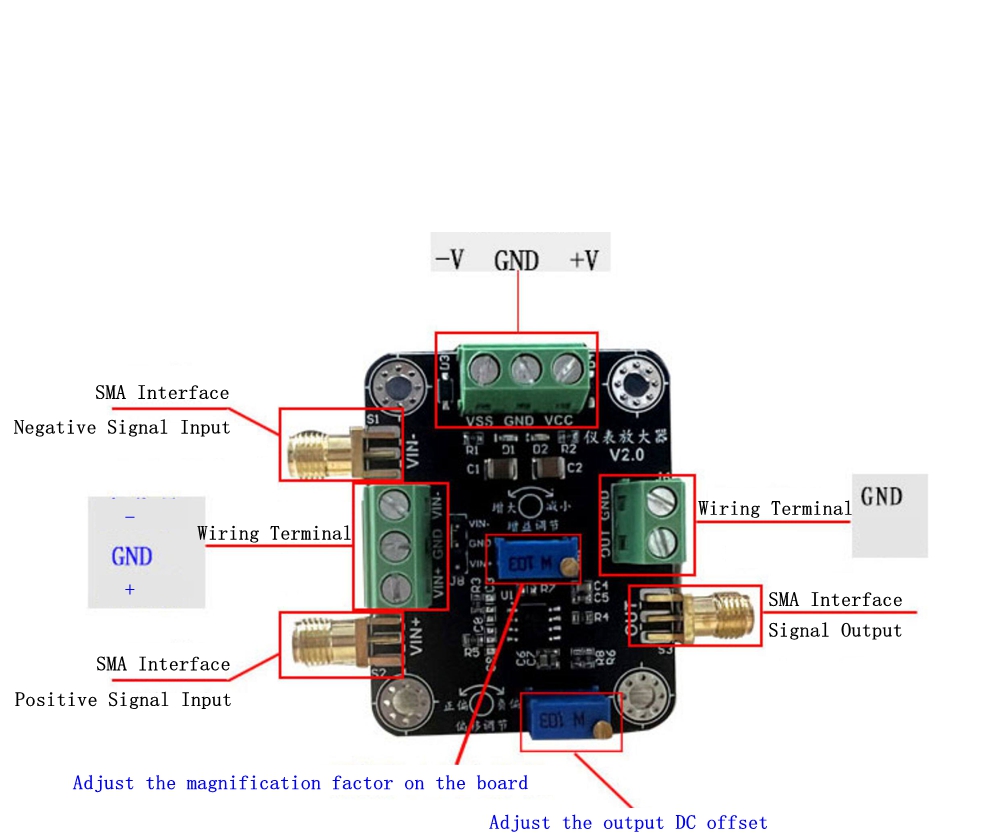

- Input interface: terminal or SMA
- Output interface: terminal or SMA

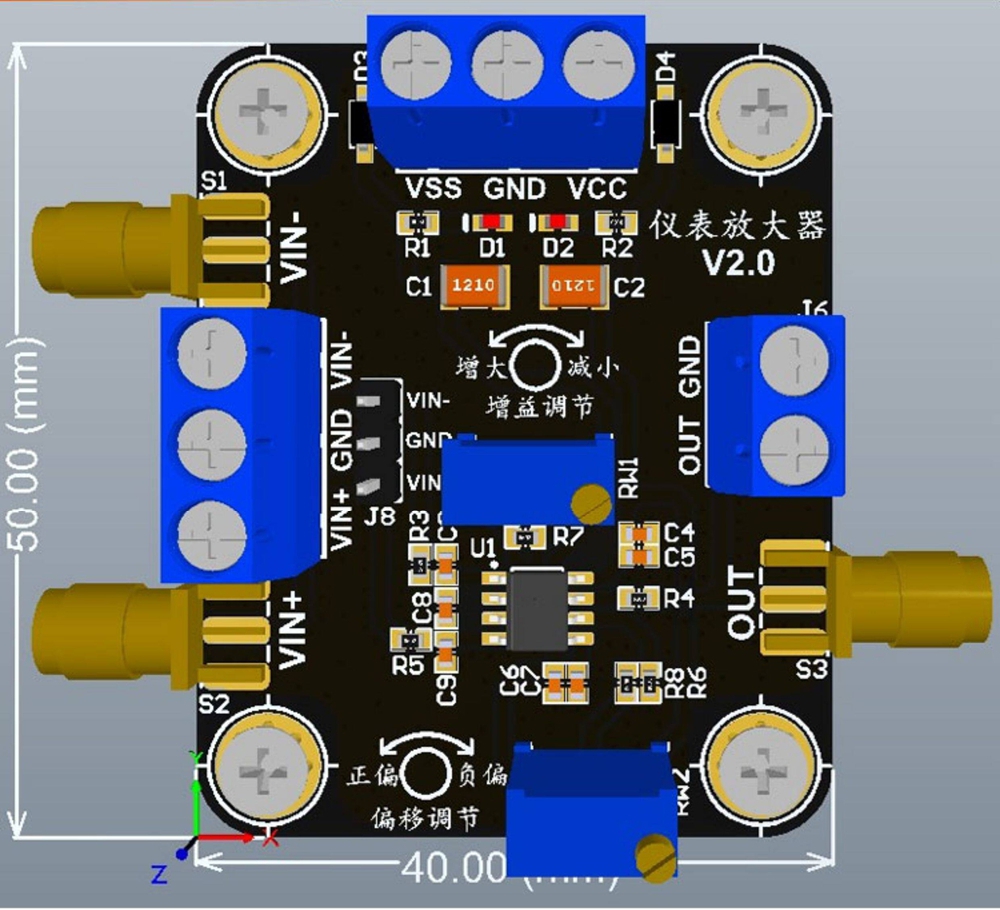

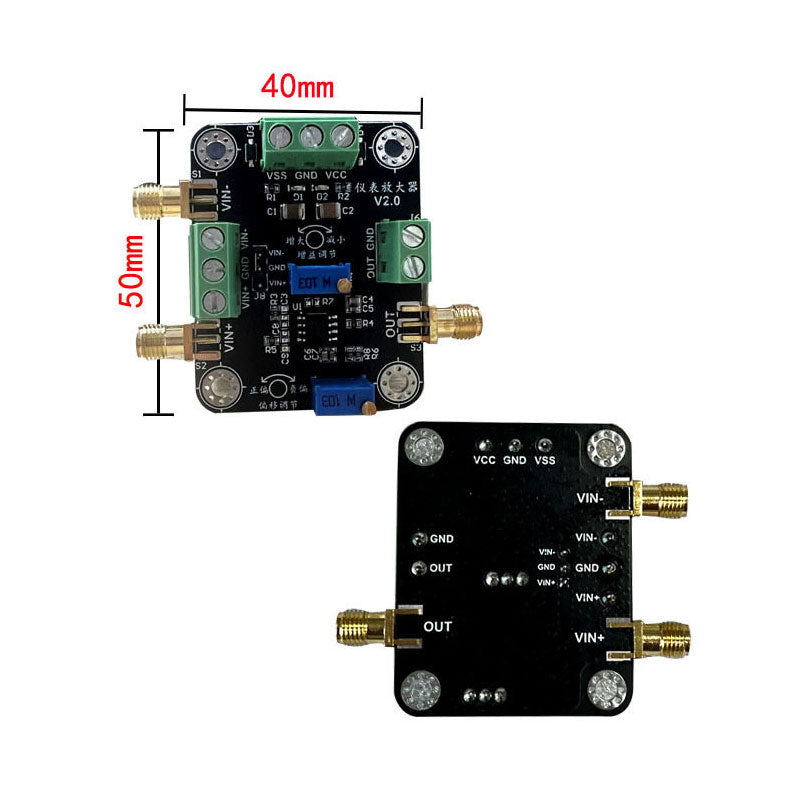

- Module size: 4.0 x 5.0 cm (L x W)
- Module protection: power supply voltage reverse connection protection
- Reminder: try to use low ripple power supply as much as possible; use good wires to connect input and output signals; the supply voltage should not exceed ±18V.

Package Included:
- 1 x AD8421 Module
