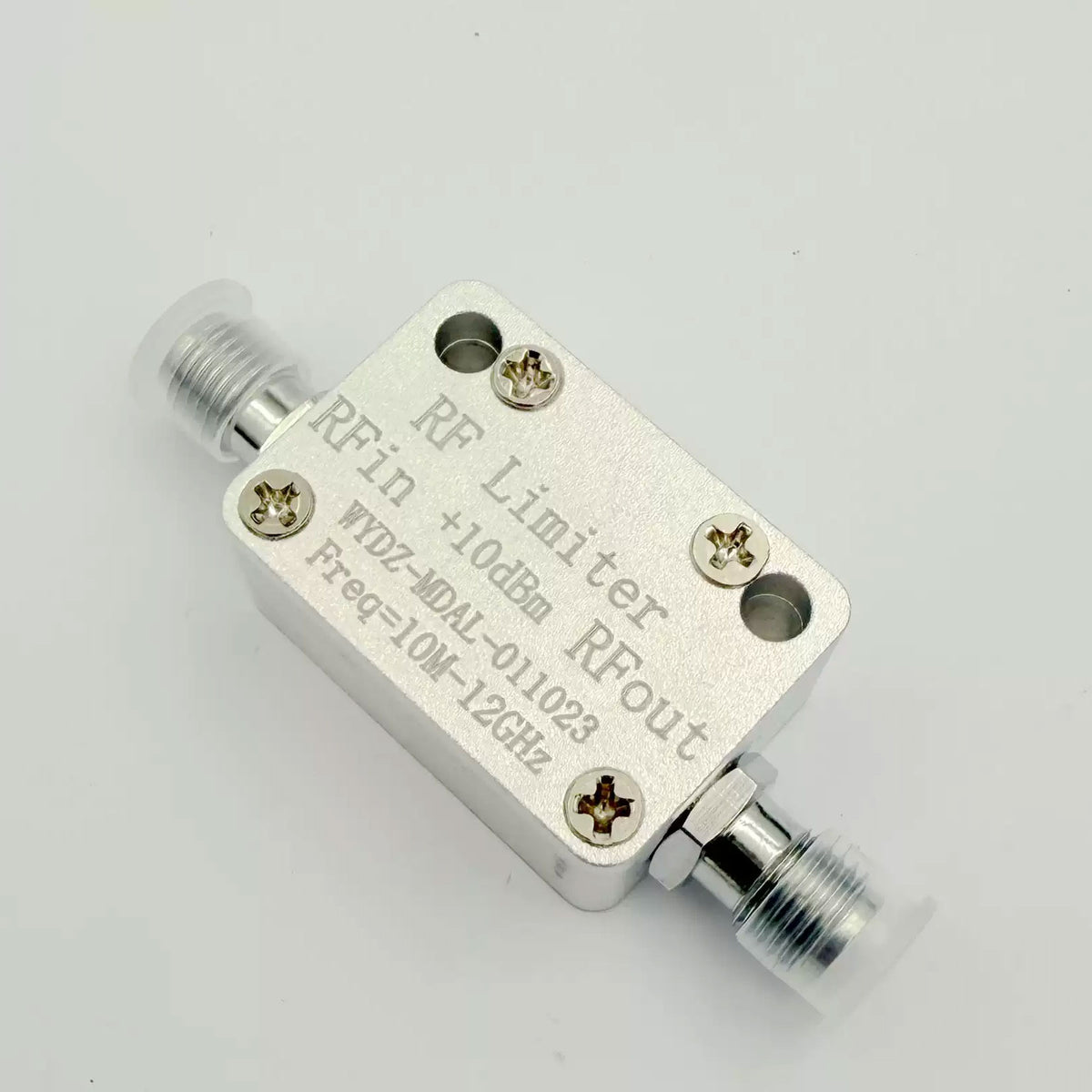

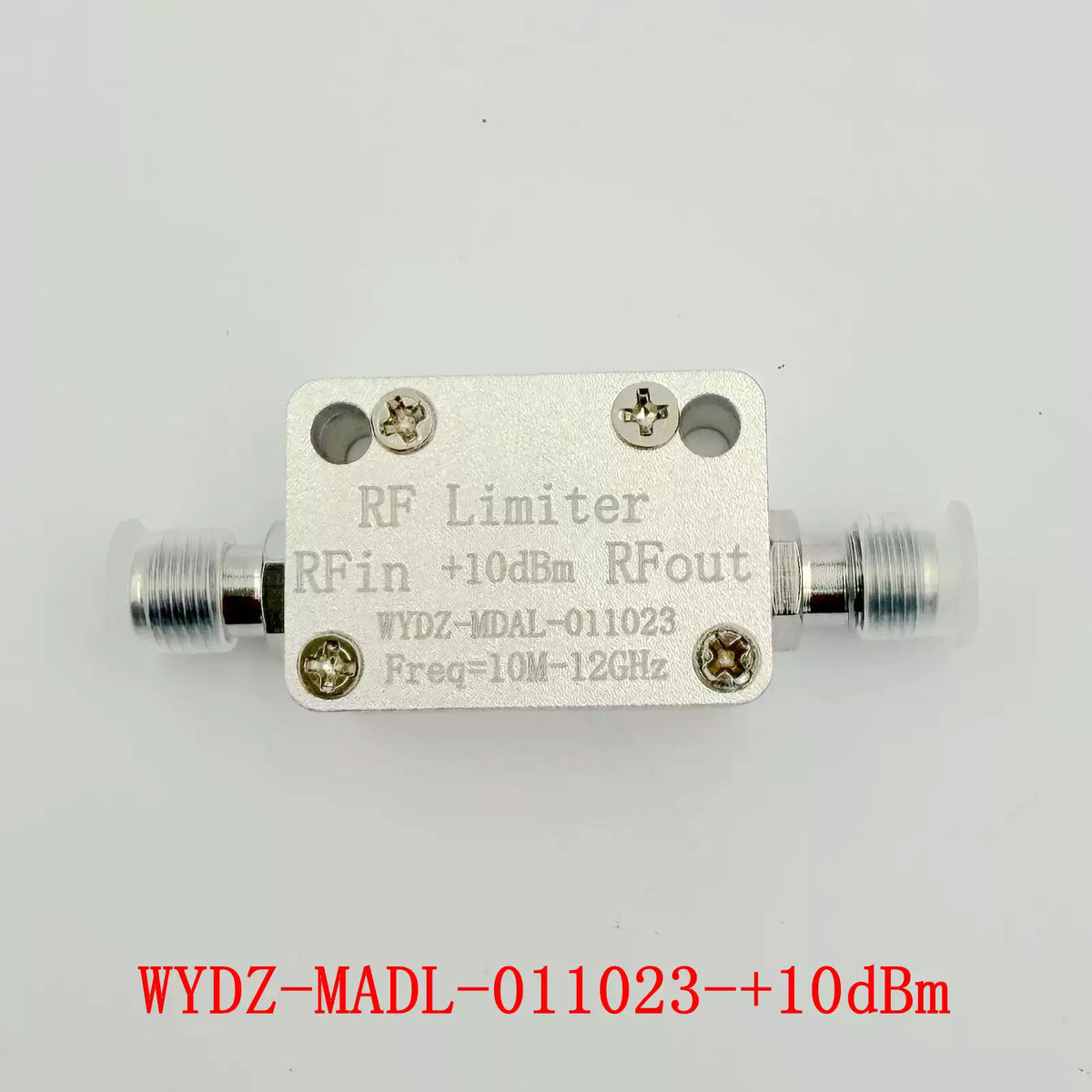

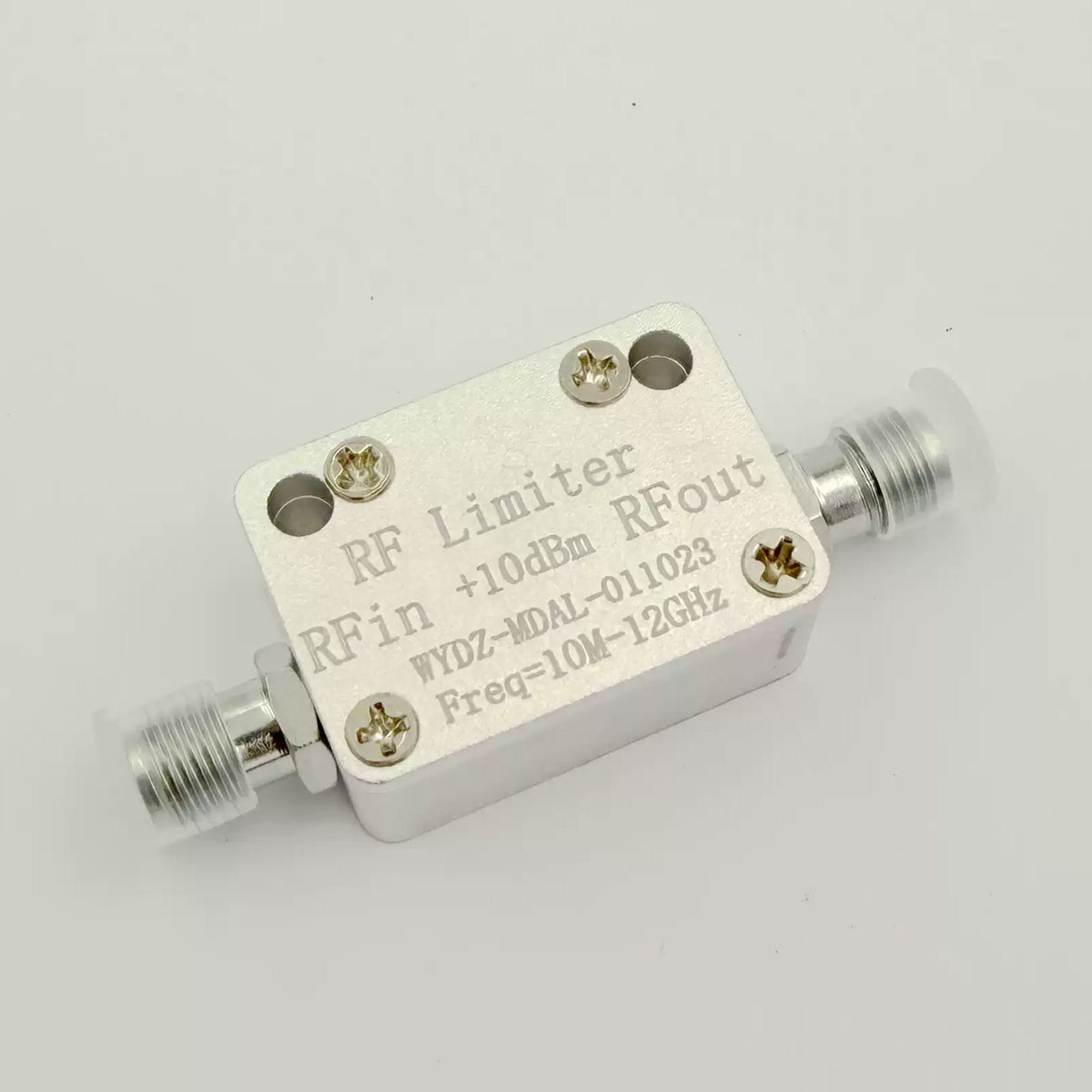

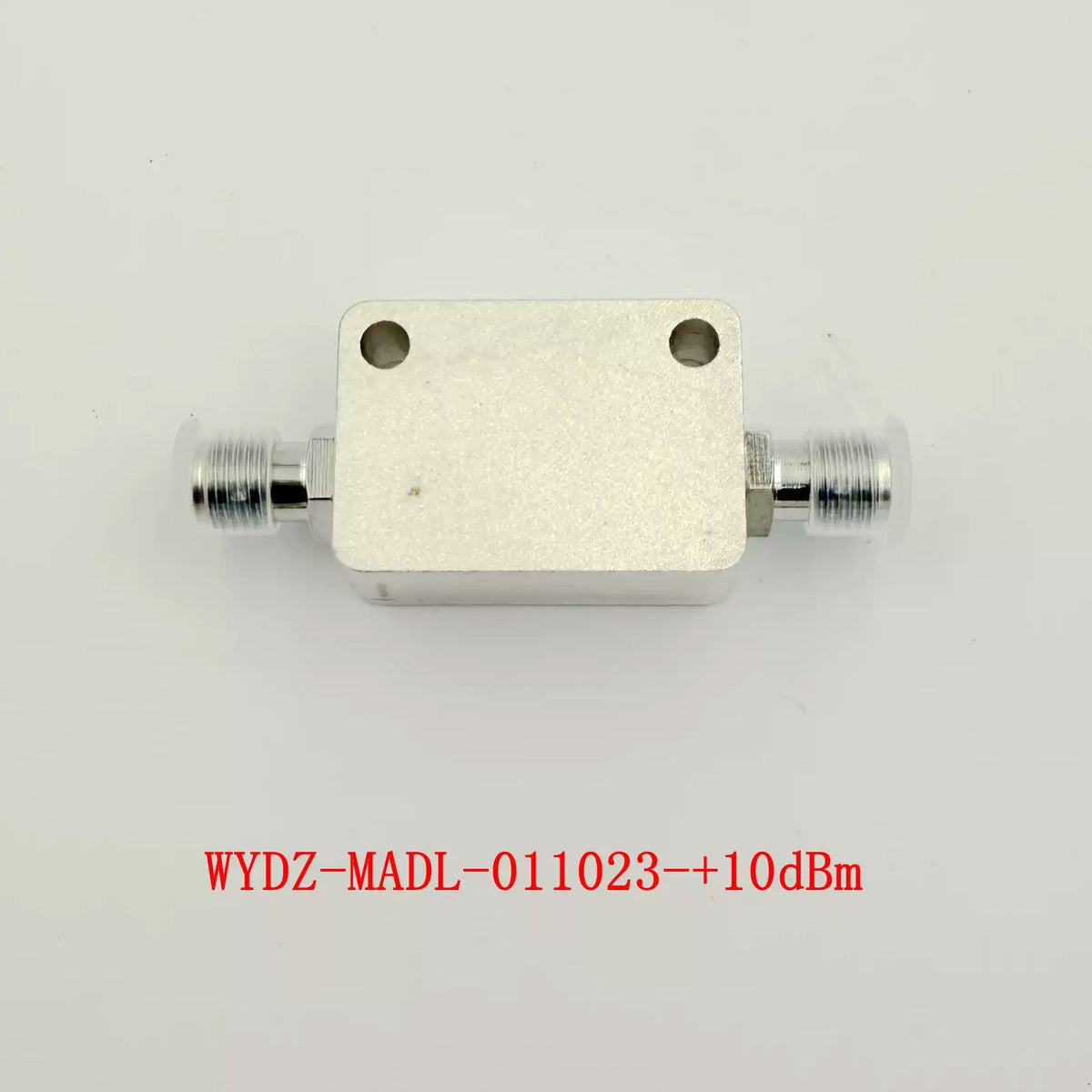

WYDZ-MADL-011023-10dBm 10MHz-12GHz RF and Microwave Power Limiter with SMA Female Connector

$28.27
$28.27
Tax included. Shipping calculated at checkout.
Availability: 2000 in stock
SKU: 105474
Tags:
Collections:
ThanksbuyerLSM6DSV+QMC6309 9-Axis High Performance IMU Sensor Module 3-Axis Accelerator and 3-Axis Gyroscope + 3-Axis Magnetometer
LSM6DSV+QMC6309 9-Axis High Performance IMU Sensor Module 3-Axis Accelerator and 3-Axis Gyroscope + 3-Axis Magnetometer
PZ-K7410TF-FH-KFB FPGA Development Board JFM7K410T FMC PCIe 406K Logic Cells 2GB DDR3
PZPZ-K7410TF-FH-KFB FPGA Development Board JFM7K410T FMC PCIe 406K Logic Cells 2GB DDR3
$28.27
$28.27

Specifications:
- Model: WYDZ-MADL-011-23-10dBm
- Type: RF and microwave limiter (PIN Diode Limiter)
- Input and output interface: SMA female connector (50ohm impedance)
- Frequency range: 10MHz - 12GHz
- Maximum continuous wave power (CW): +40dBm (10W)
- Maximum peak power: +50dBm (100W)
- Input P1dB: 10dBm

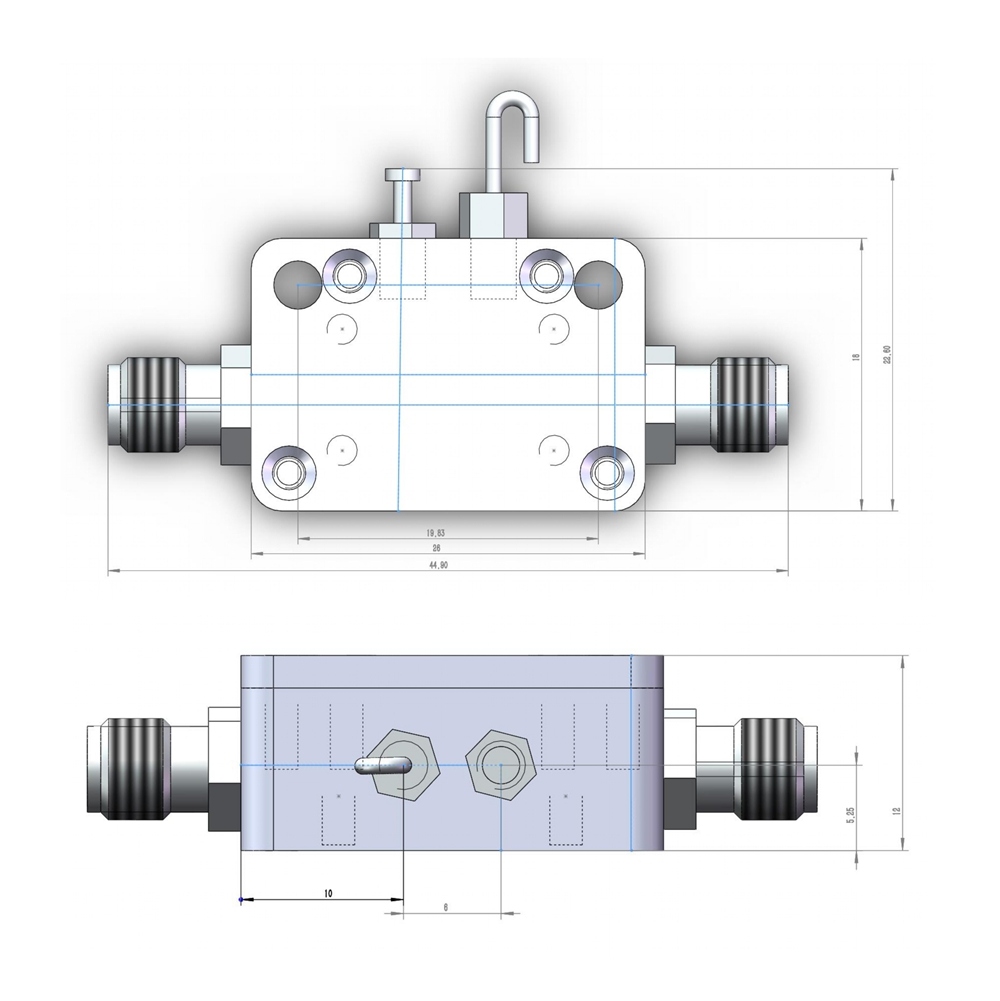

- Product size: 1.8 x 2.8cm
- Net weight: 16g

Applications:
- Mobile base station/infrastructure
- Radar and electronic warfare
- Testing and measuring equipment
- RF transceiver front-end protection
- EMI suppression and surge protection

Package Included:
- 1 x RF Limiter
