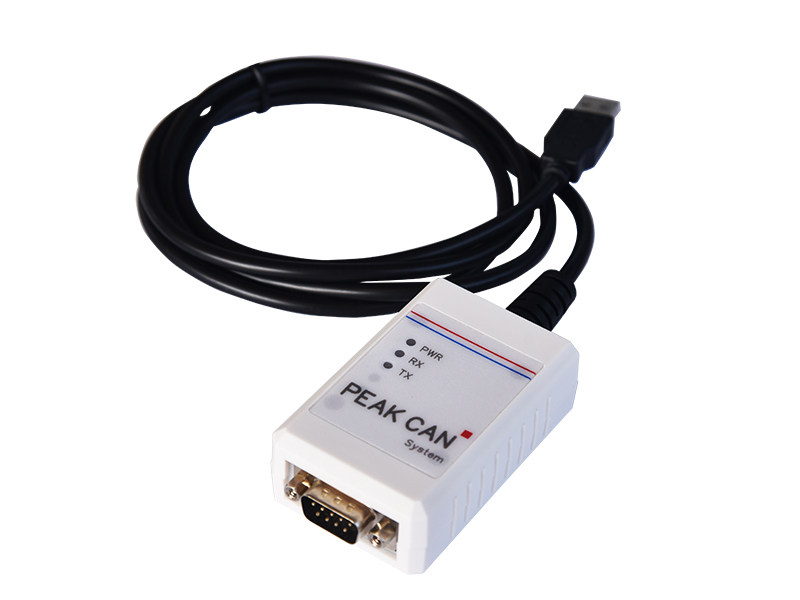

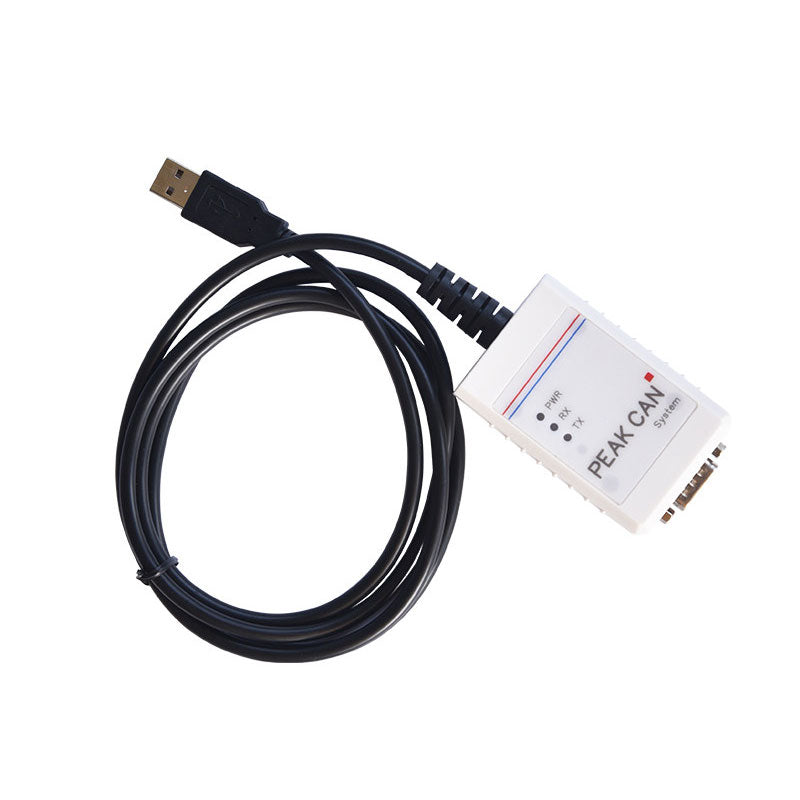

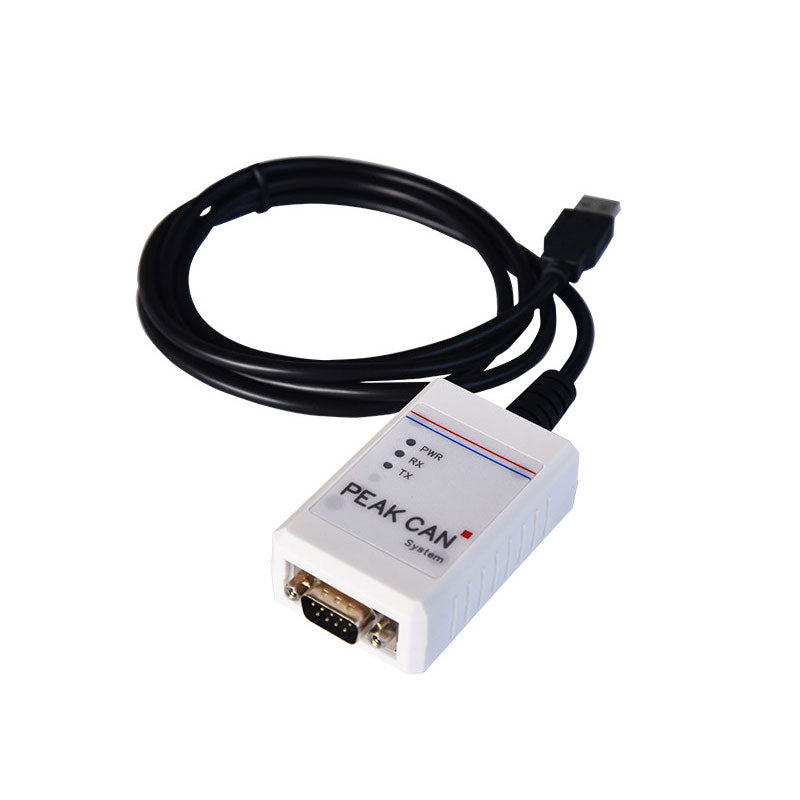

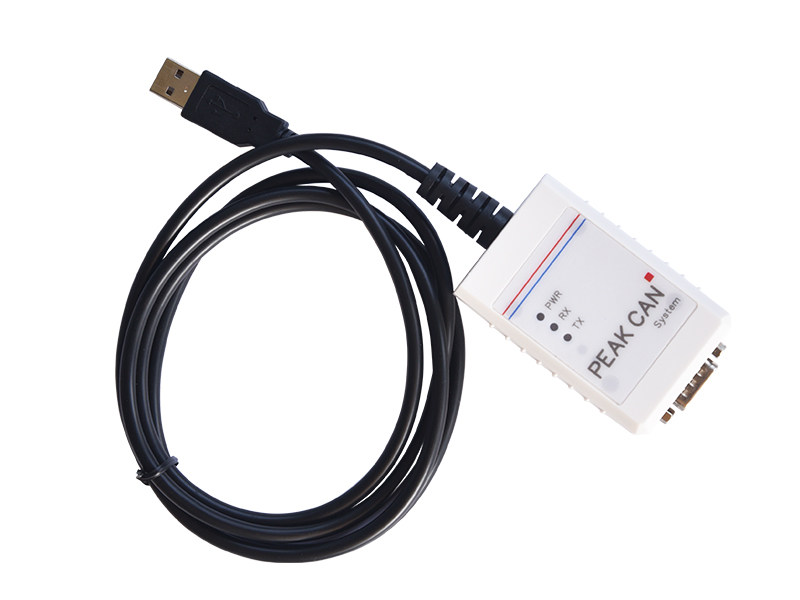

PCAN-USB USB CAN Analyzer Support CAN2.0A/B and CANFD Compatible with PEAK CAN IPEH-002022/002021

Introduction:

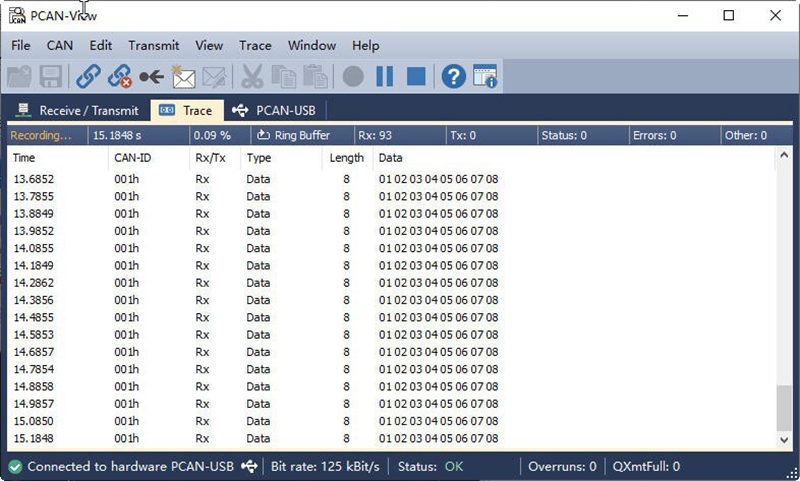

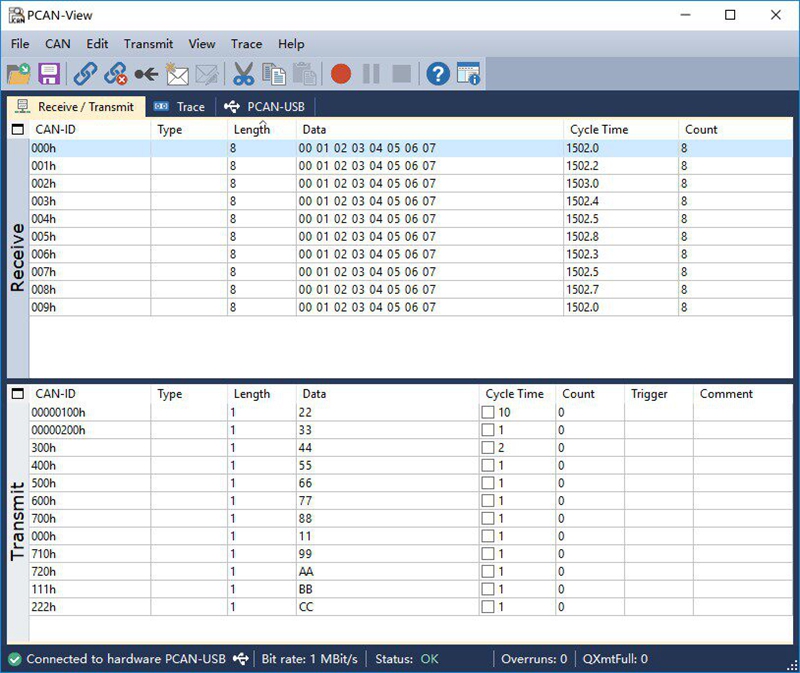

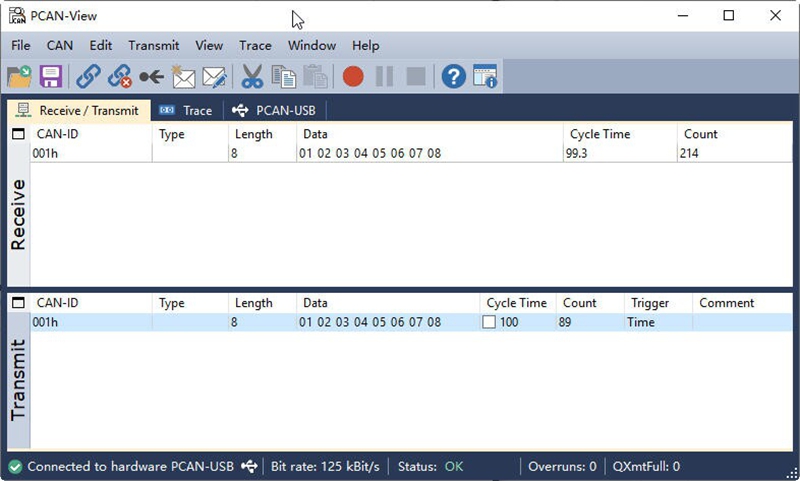

- For PCAN View is a monitoring software that runs on the operating system for Windows to view, send, and record CAN and CAN FD messages. It displays bus errors and CAN hardware cache overflow in real-time, and the Trace function supports recording and saving all messages on the bus.

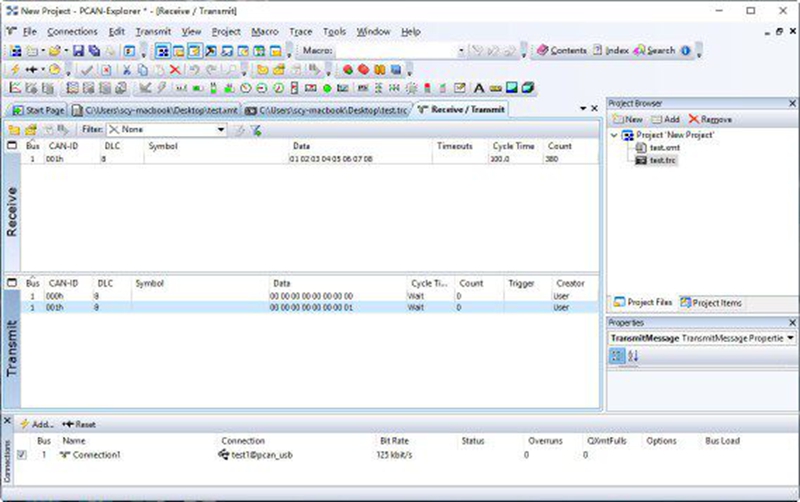

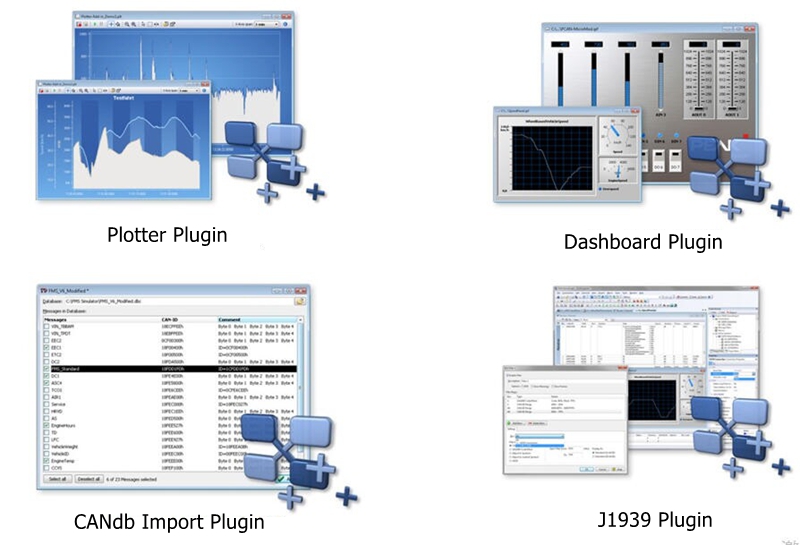

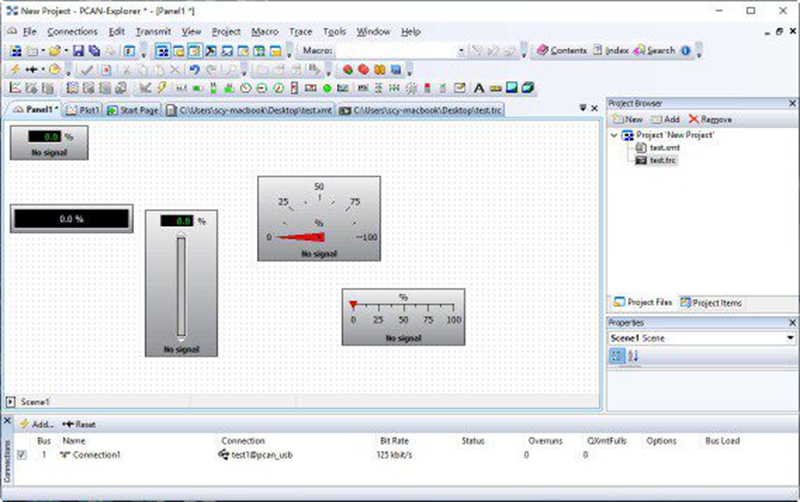

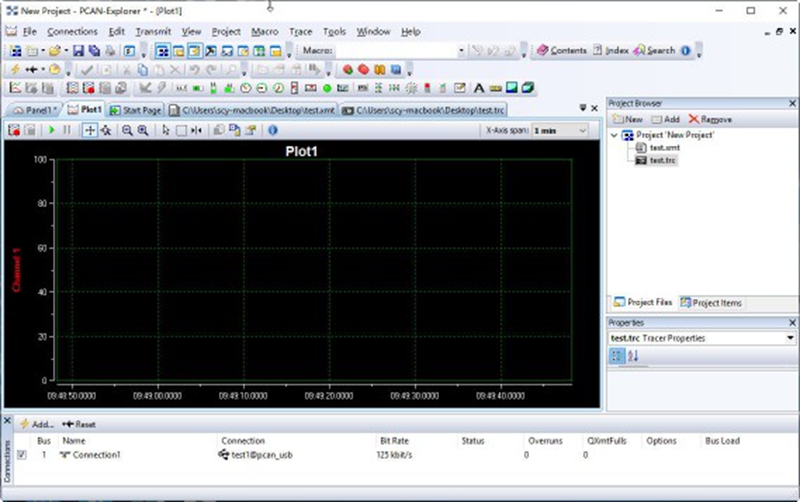

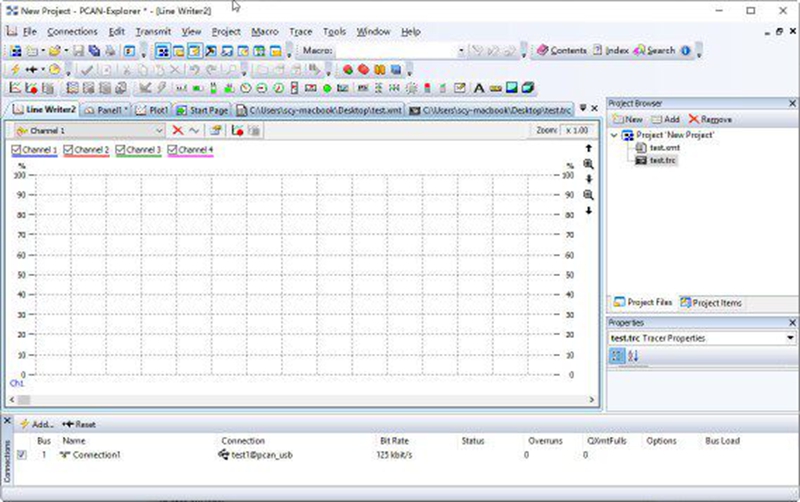

- The hardware connection dialog box lists all available CAN cards. After selecting the hardware and baud rate, users can use all the functions of the analysis software for PCAN Explorer 5. Fro PCAN Explorer 5 is a comprehensive and multifunctional CAN bus analyzer that supports sending, receiving, viewing, recording, analyzing, controlling, and simulating. It also supports symbol representation of CAN messages. The integrated VBScript supports creating macros to automatically complete small or complex tasks, and the integrated data logger means that data streams on the bus can be recorded, analyzed, and saved.

Features:
- Supports CAN2.0 A/B and CANFD specifications.
- CAN baud rate (nominal) can reach 1 Mbit/s.
- Data baud rate up to 12 Mbit/s (when using CAN FD card).
- Support custom baud rate.
- Support monitoring mode.
- Manually or periodically transmit CAN messages with a maximum resolution of 1ms.
- The maximum resolution for receiving messages is 100us.
- Record the message to the trace file.
- Save or reload the sent message.
- Categorizable receiving and sending list.
- Supports representing CAN ID in hexadecimal or decimal format.
- Representing data bytes in hexadecimal, decimal, or ASCII format.
- Display of receiving, sending, and error status.
- CAN controller hardware reset.
- Can assign an ID to the device.

Package Included:

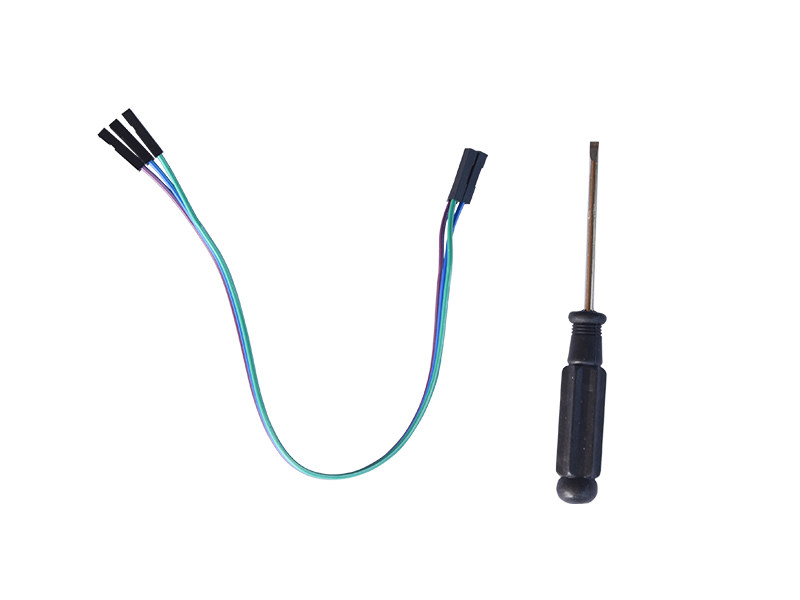

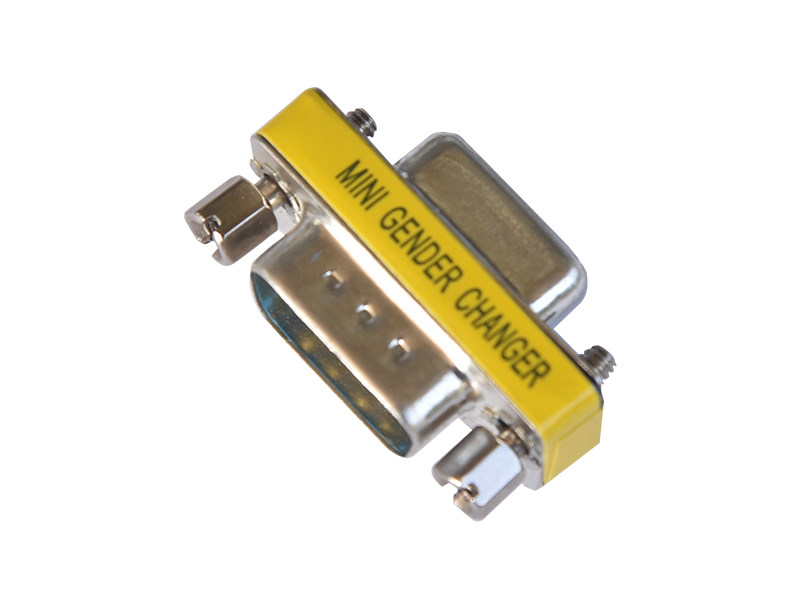

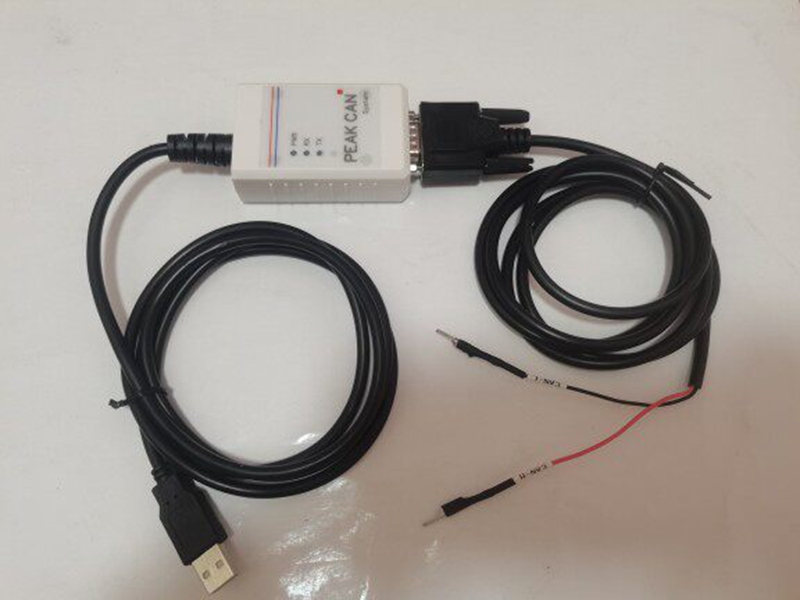

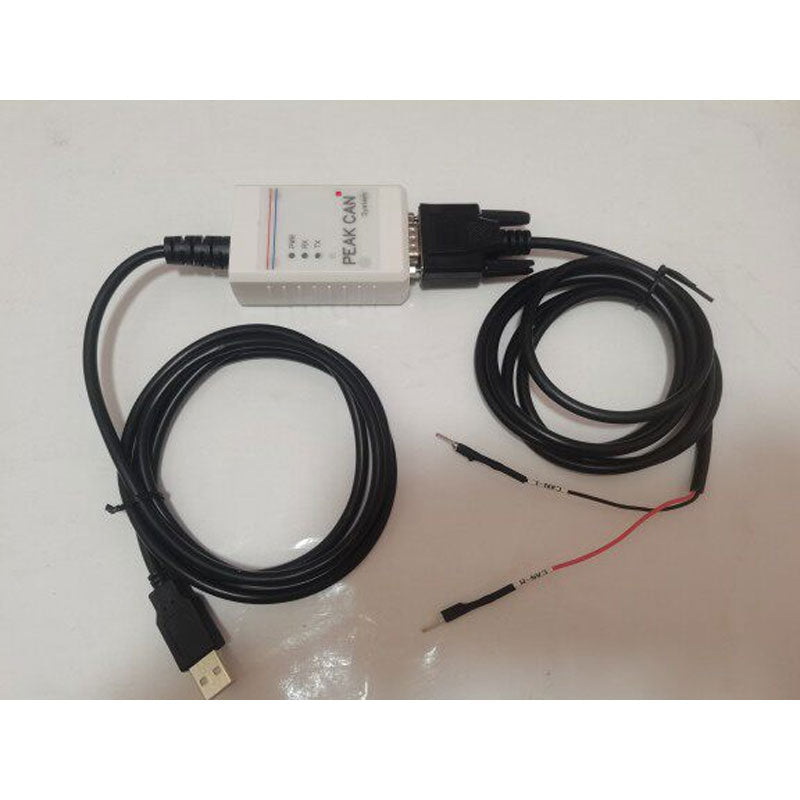

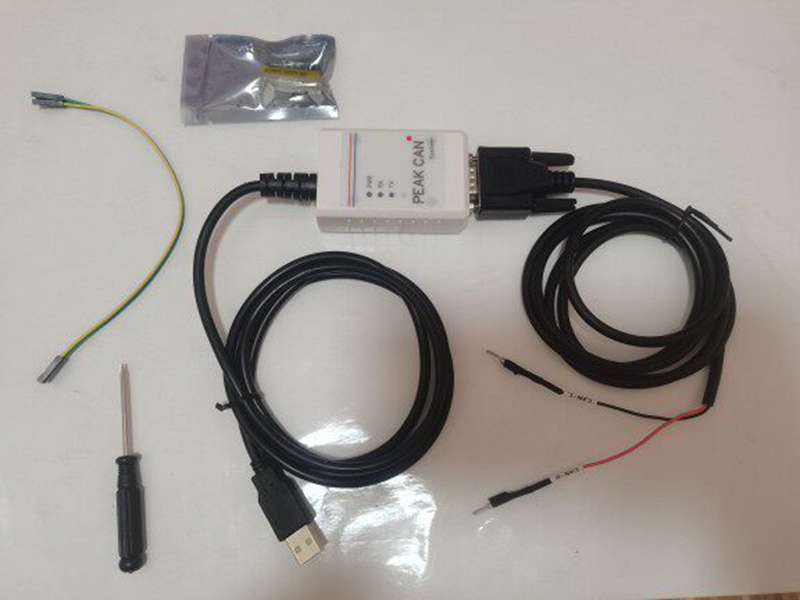

- 1 x Set of USB CAN Analyzer
