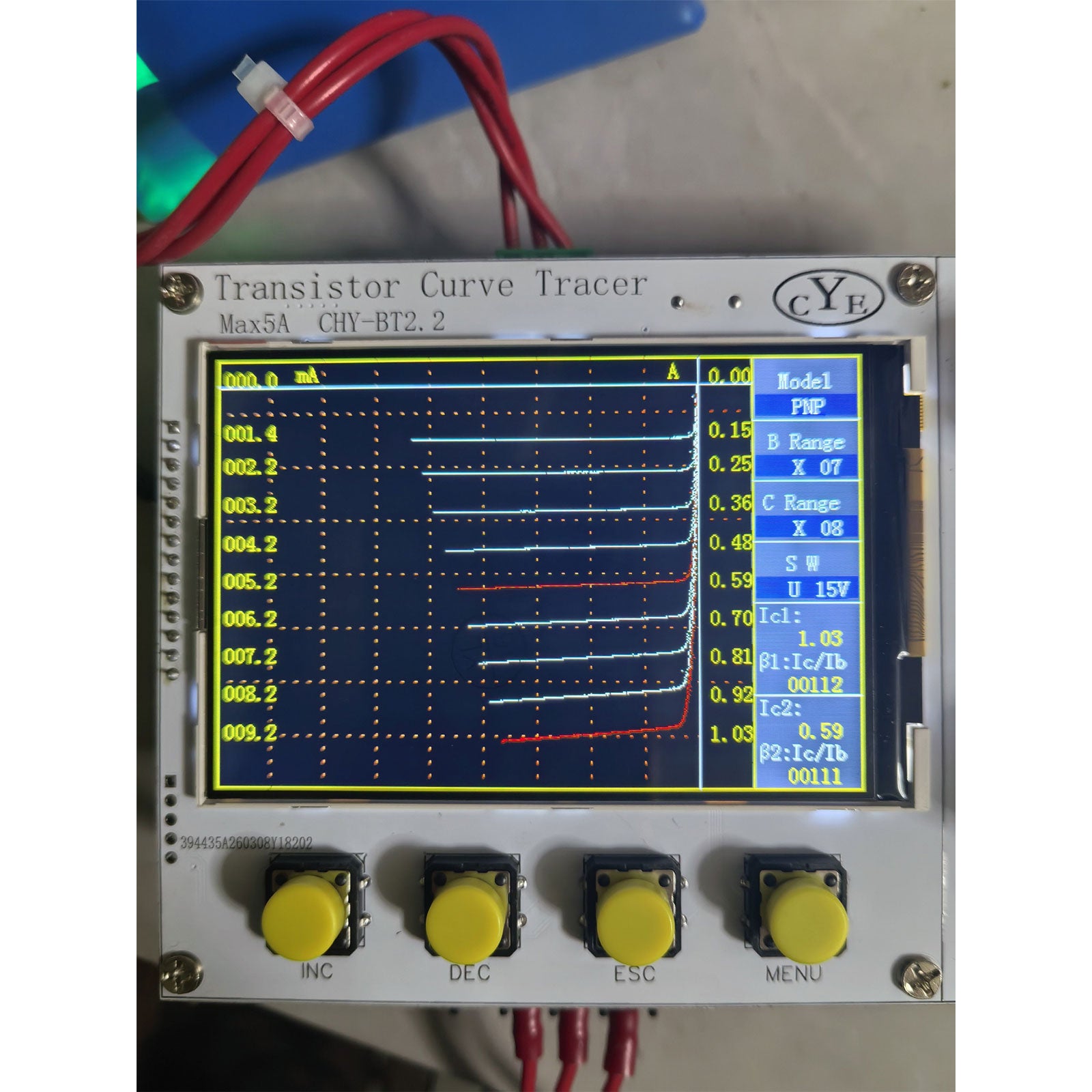

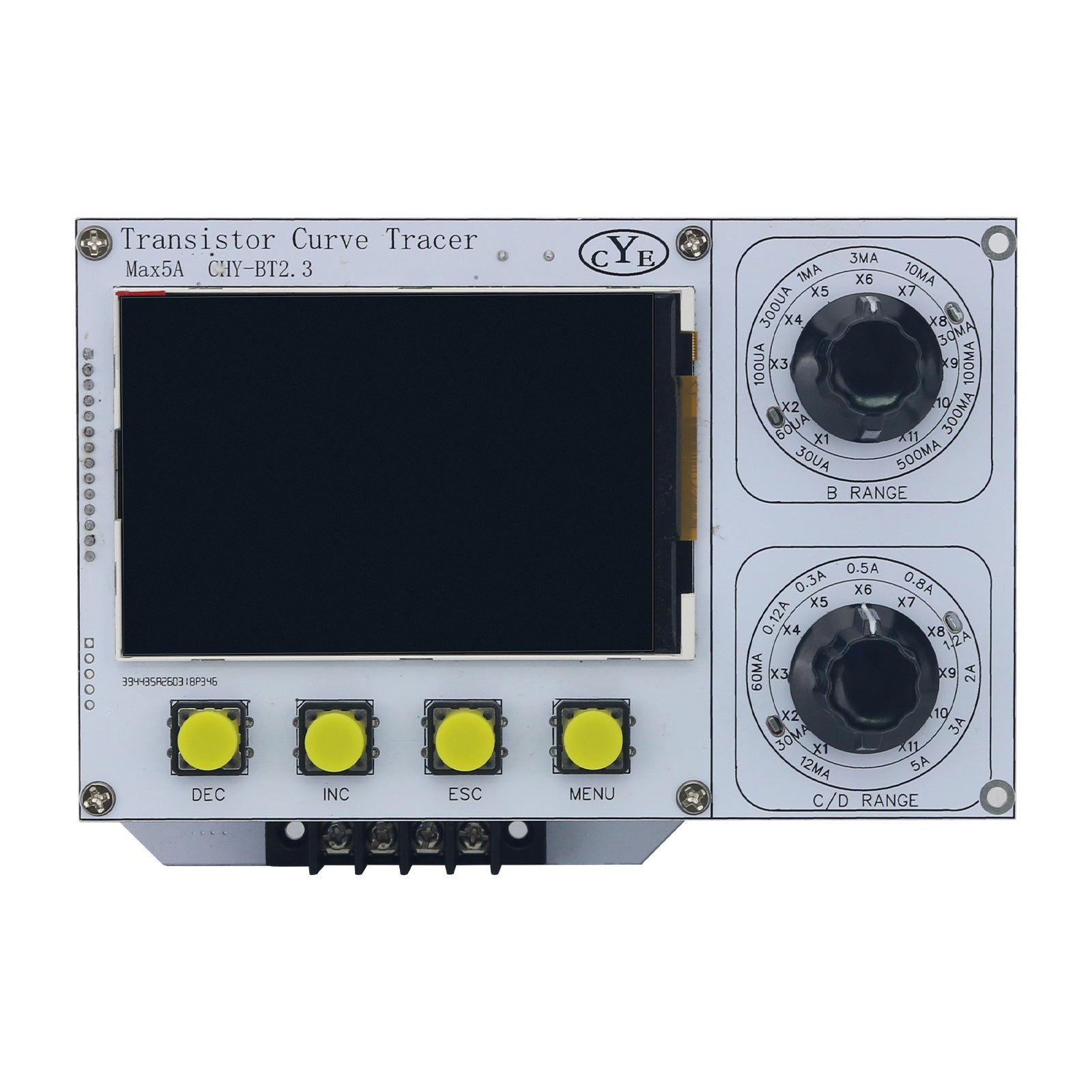

Upgraded Version 110V-220V Transistor Curve Tracer 5A Transistor Characteristic Curve Tester with Testing Base

Description:
- Working power supply with positive and negative dual power supply 24V 4A input (sufficient 4A)
- The working voltage of the main control in the board is +3.3V, the working voltage of the LCD screen is 3.3V, the working voltage of the LCD backlight board is +5.8V, and the working voltage of other chips is +/-18V.

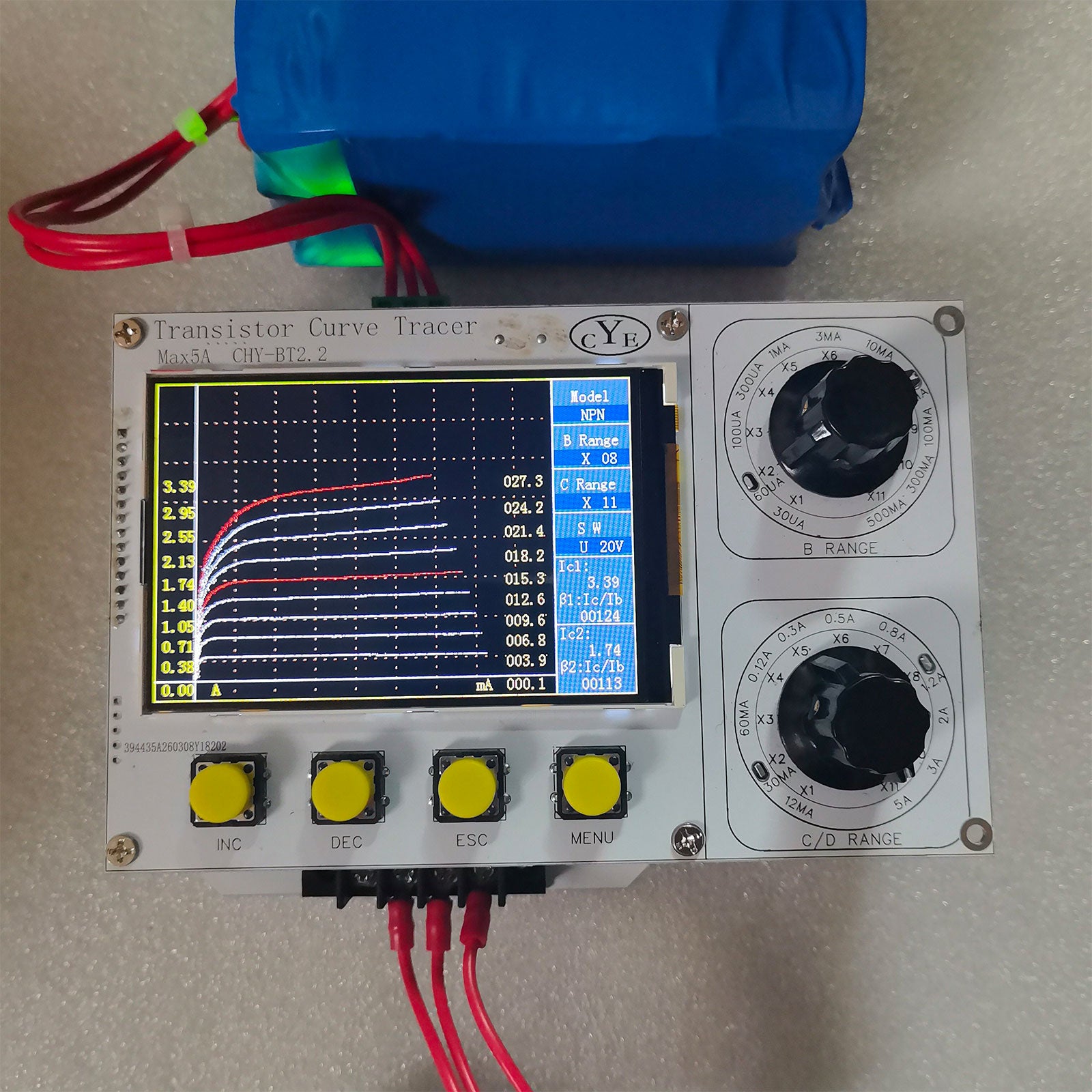

- The characteristic curve of a transistor is measured for the collector working scan voltage of NPN transistor from 0 to +24V and PNP transistor from 0 to -24V; the characteristic curve of a transistor diode and resistor is measured for the collector working scan voltage from 0 to +24V.
- The maximum base current of the class wave is 500MA, with a range of 11 magnifications. 500MA/gear (5R), 250MA/gear (10R), 125MA/gear (20R), 49MA/gear (51R), 25MA/gear (100R), 12.5MA/gear (200R), 4.9MA/gear (510R), 2.5MA/gear (1K), 1.25MA/gear (2K), 490UA/gear (5.1K), 200UA/gear (10K).
- The maximum current of the collector is 5A, and the range is divided into 11 magnifications. The collector sampling resistor voltage is 5V, the sampling resistors are: 1R, 2R, 4R, 6R, 9.9R, 19.9R, 39.9R, 78.9R, 146.9R, 266.9R, 486.9R; and the full range current: 5 A, 2.5A, 1.25A, 0.833A, 505MA, 251MA, 125MA, 63MA, 34MA, 18.7MA, 10MA.
- The output characteristic curve scanning line consists of 8 levels, with a single scanning time of 200MS and a total scanning time of 2400MS.
- 4-inch TFT IPS high-definition screen with a resolution of 320 x 480.
- Product size: 106 x 130 x 56mm.

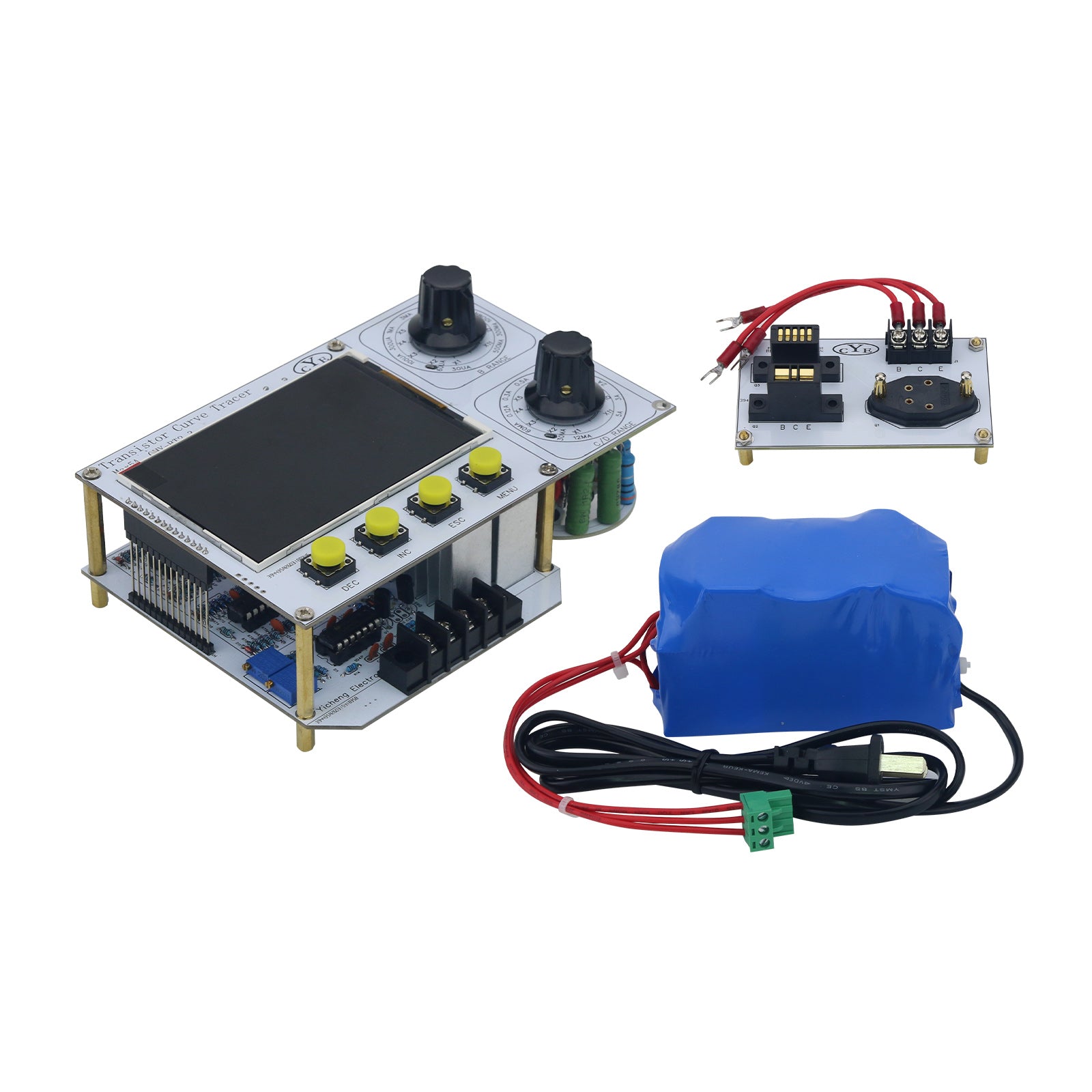

Package Included:

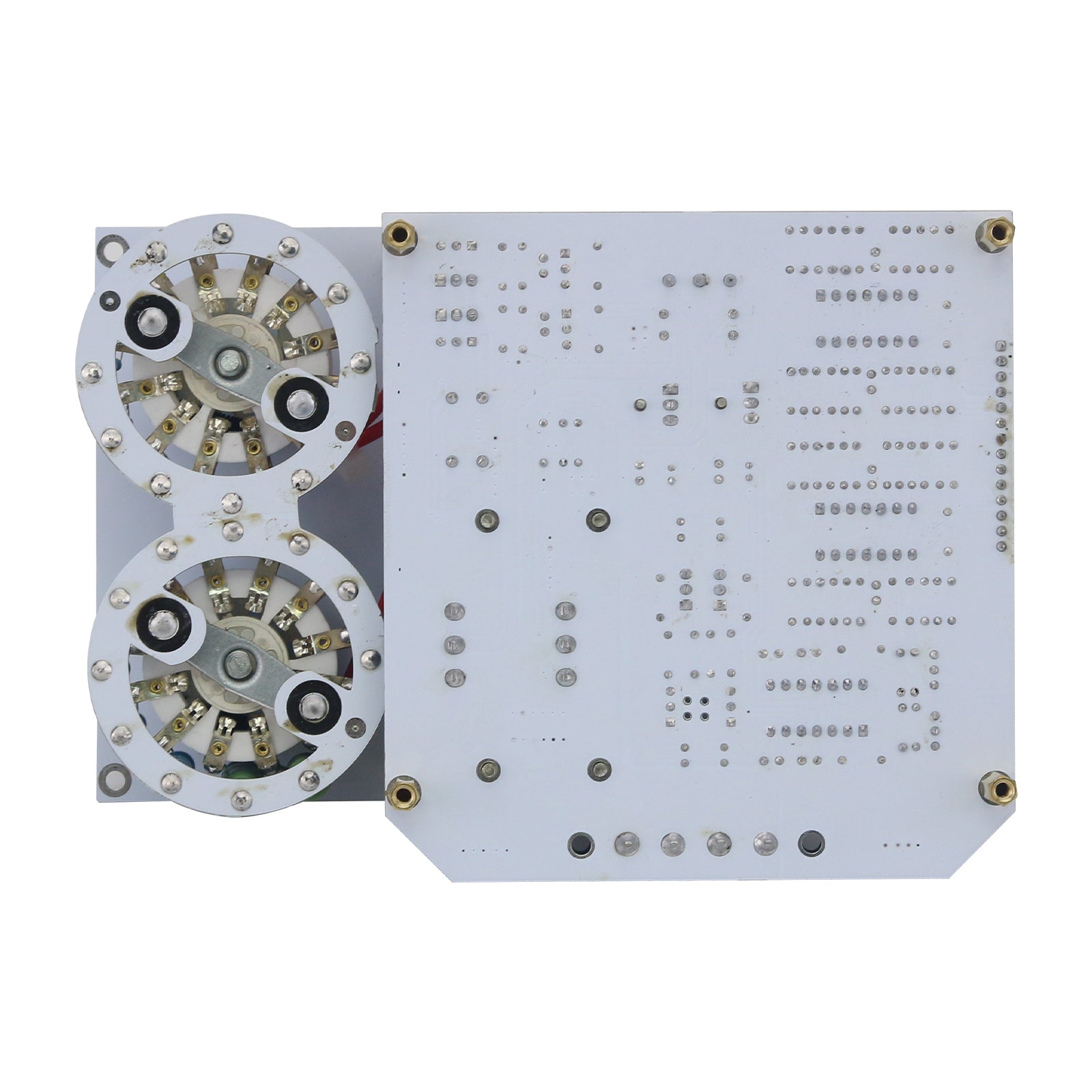

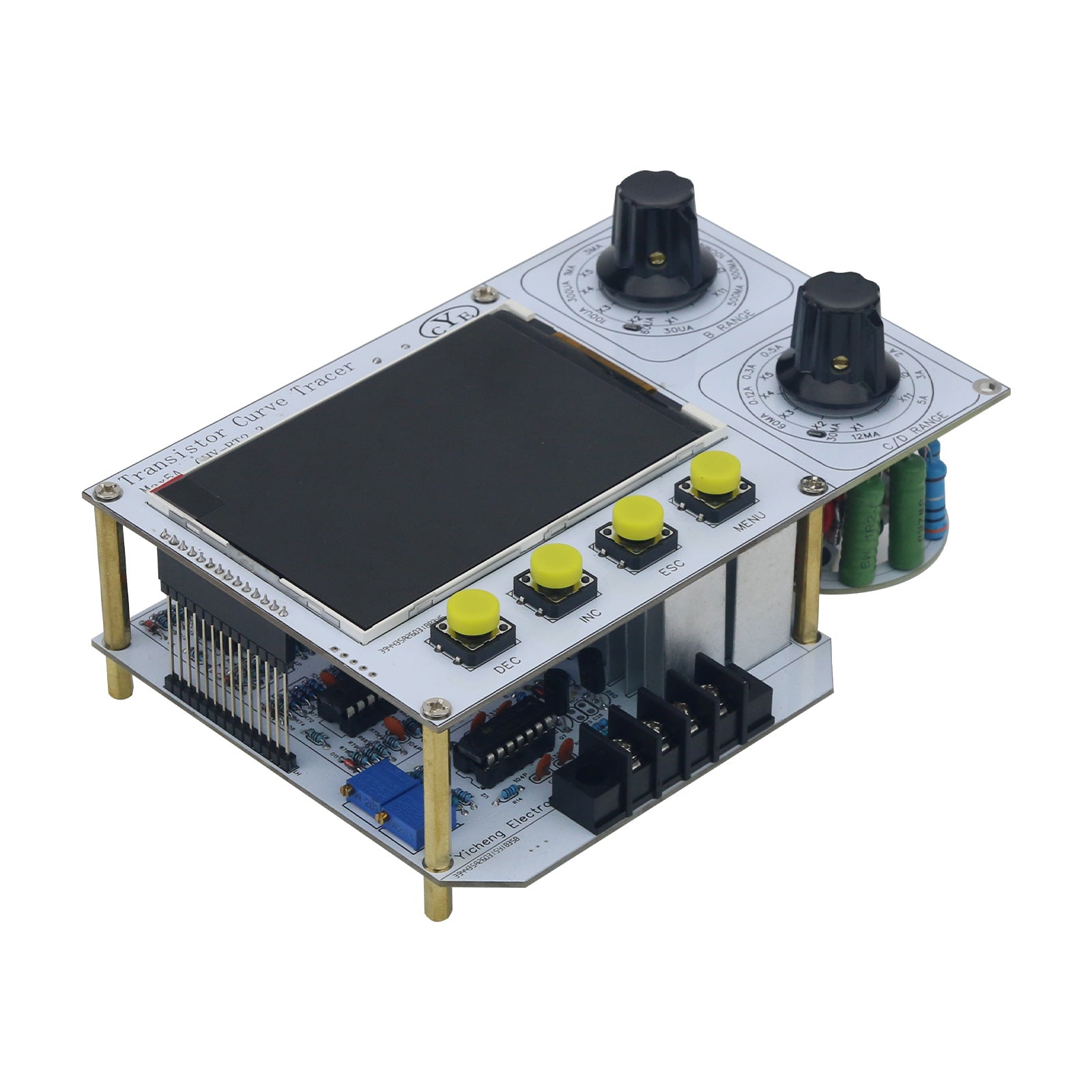

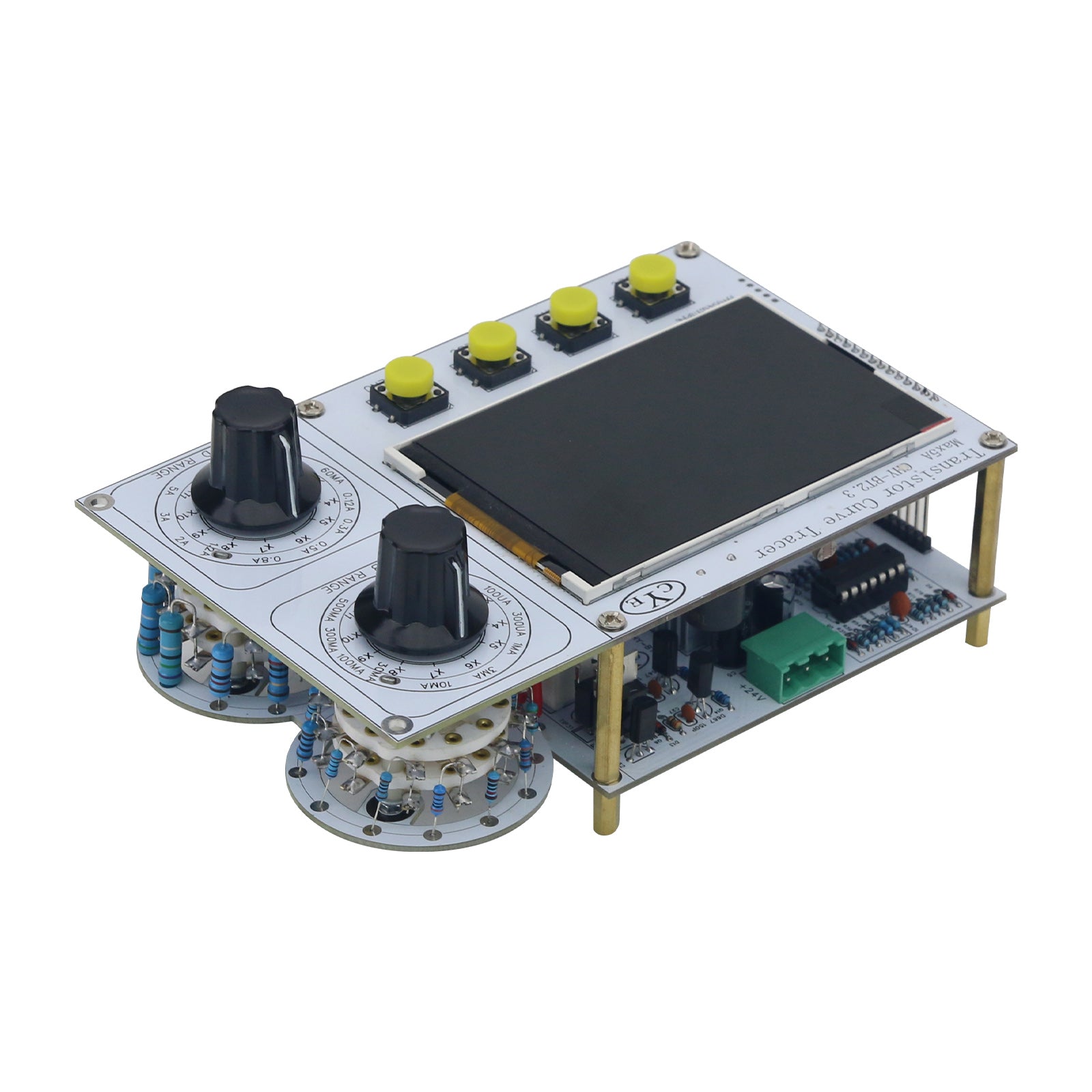

- 1 x Transistor Curve Tracer

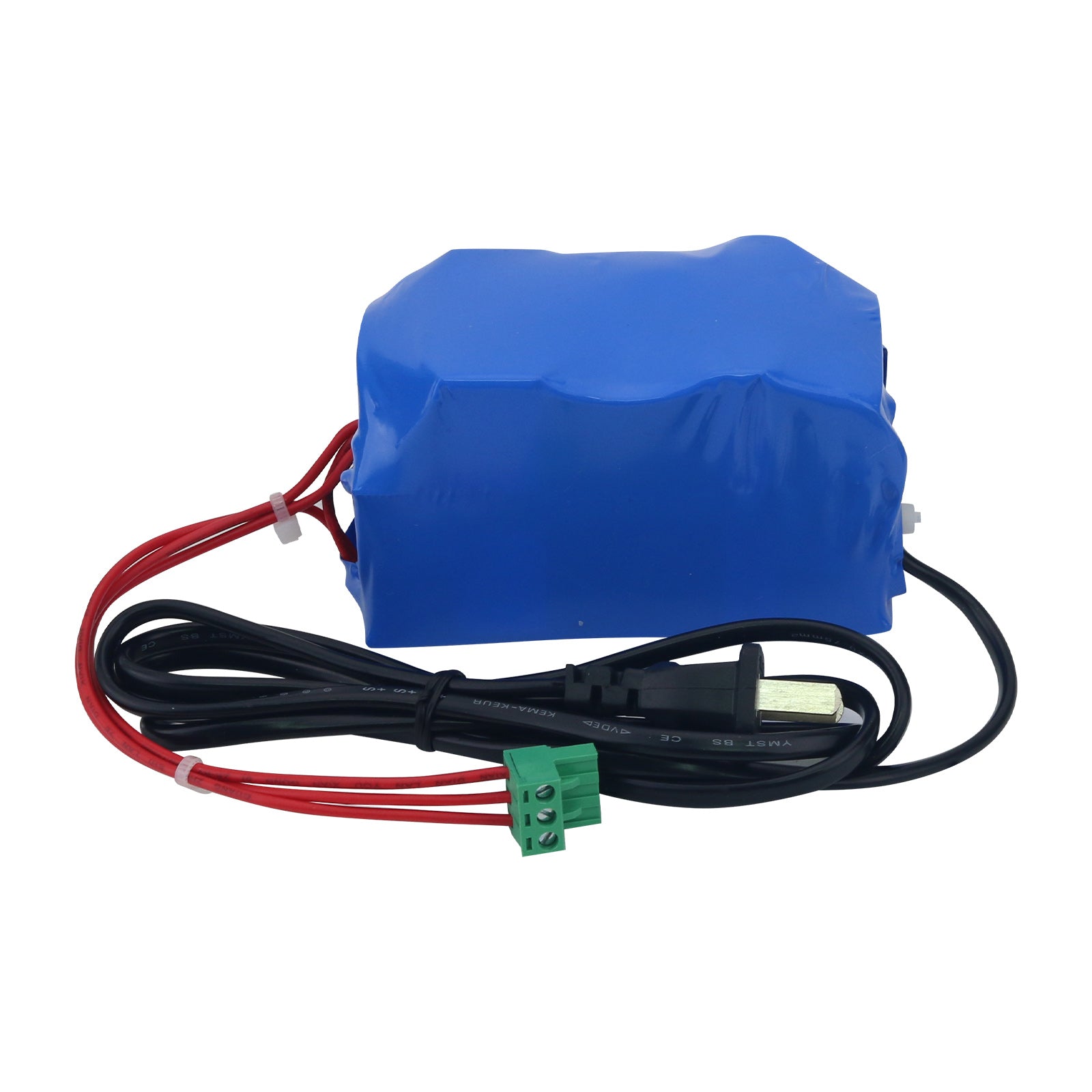

- 1 x Power Supply Module

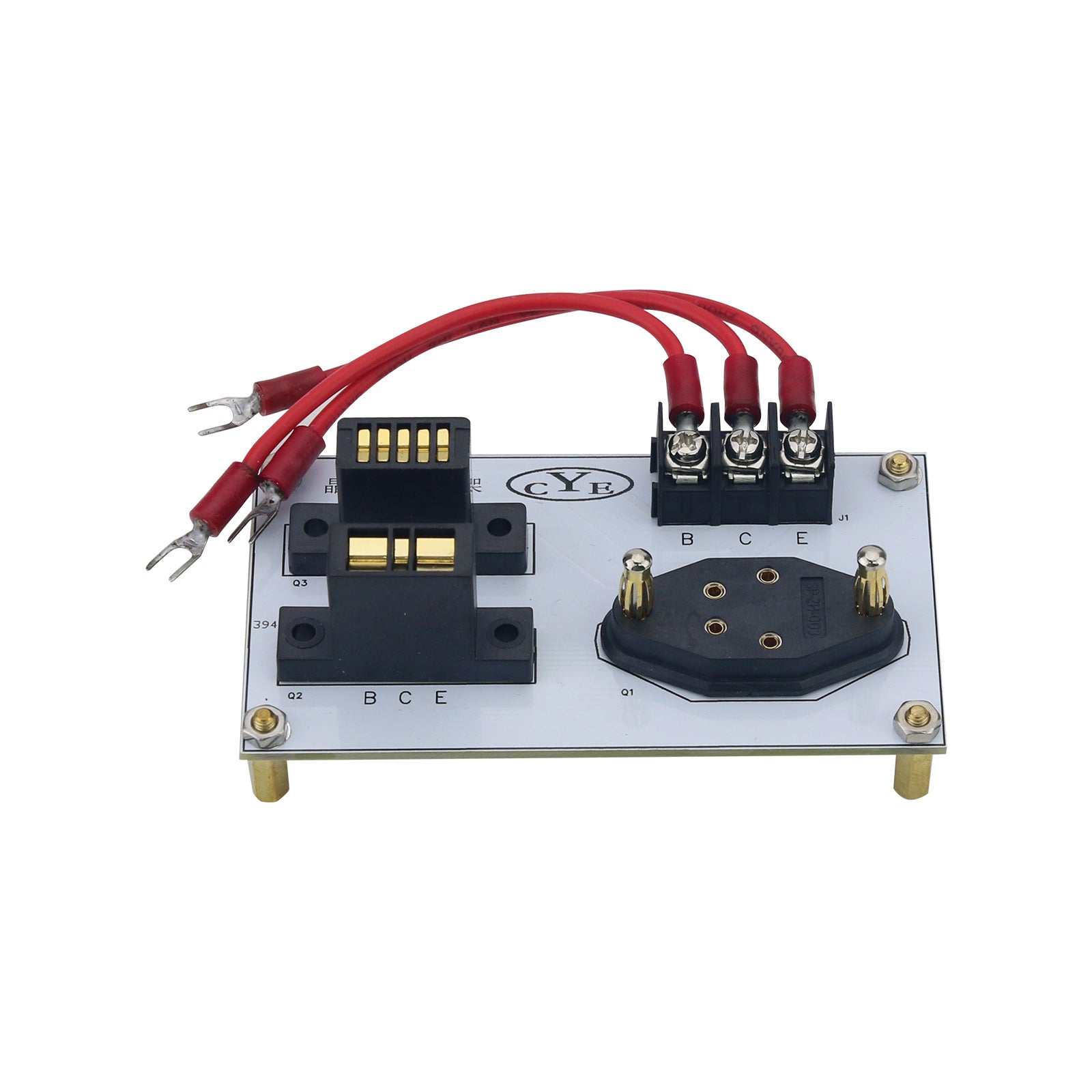

- 1 x Testing Base
