CONSPIT CPP APEX Hydraulic Pedals Racing Pedals Accessories (2-Pedal Set) for Sim Racing Games
Features:

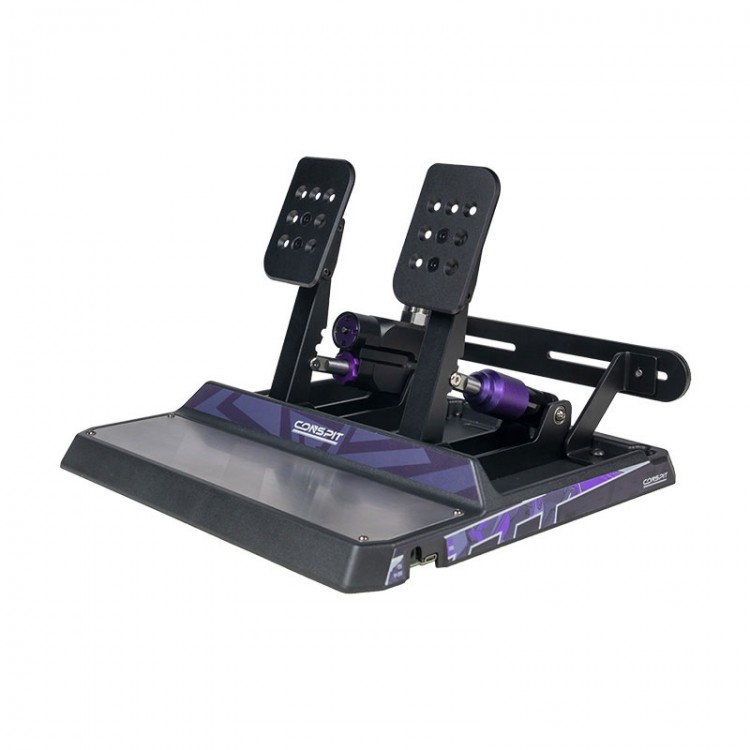

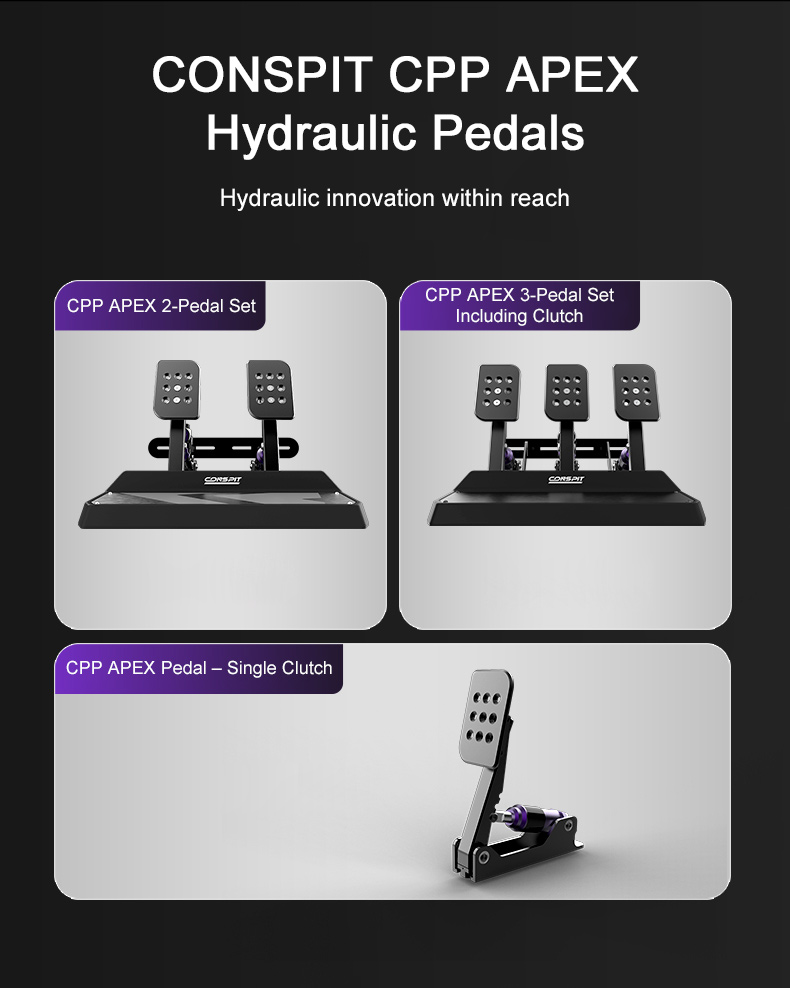

CONSPIT CPP APEX Hydraulic Pedals
* Hydraulic innovation within reach
N+1 Product Concept
* The CPP APEX hydraulic brake pedal set integrates CONSPIT's patented sensing technology with a hydraulic system to achieve precise control and deliver a realistic pedal feel.
Hydraulic System Innovation
* It adopts a longitudinal dual-cylinder integrated design.
* The compact layout places the hydraulic cylinder and elastomer cylinder side by side in a longitudinal arrangement.
* Made with one-piece die-cast aluminum alloy and CNC precision machining, it ensures smooth pedal feel and long-lasting durability.
10MPa Automotive-Grade Hydraulic Sensor
* The 10MPa hydraulic sensor accurately detects brake pressure, combining linear braking with clear feedback, supporting both threshold braking and trail braking.

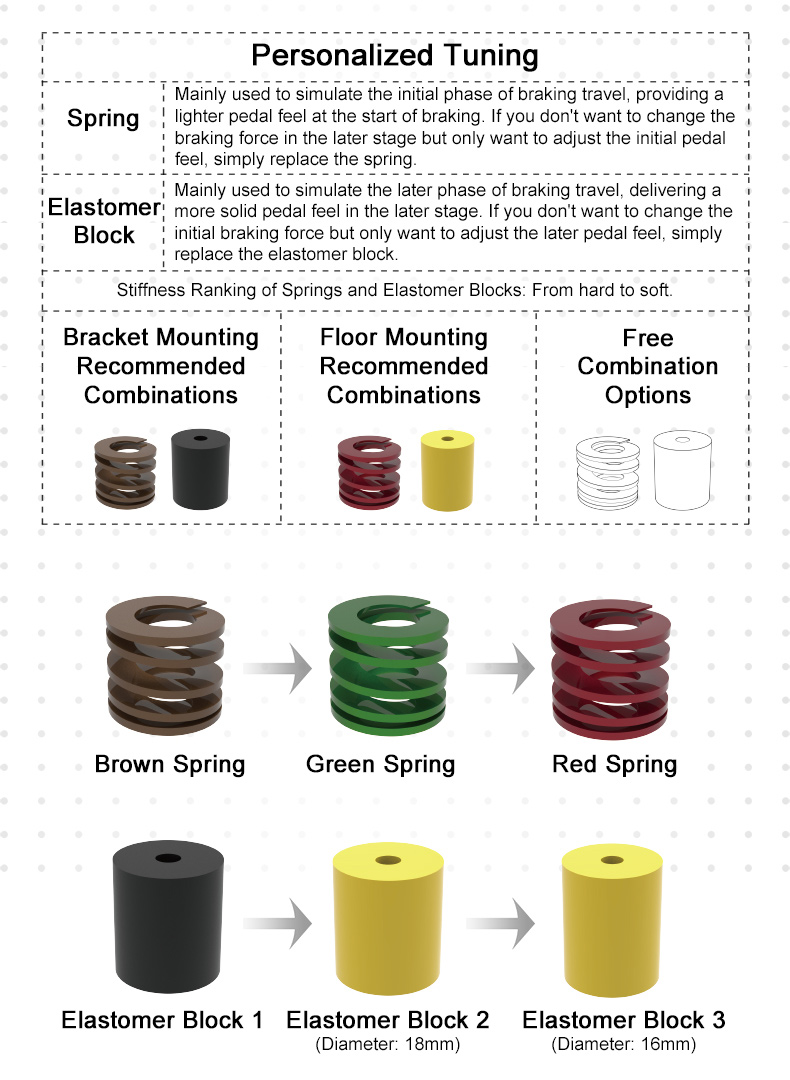

Two-Stage Brake Pedal Feel
* The spring simulates the initial brake contact, while the elastomer provides solid feedback in the later stage. It supports swapping different hardness combinations for personalized tuning.
Enveloped Throttle Design
* The throttle adopts an enveloping structure with internal motion components, providing dust protection while maintaining precise control. Combined with a market-proven Hall sensor, it ensures accurate throttle response.
Precision Manufacturing – Durability and Premium Feel
* The main pedal material is high-grade aluminum alloy, treated with T6 heat treatment and high-precision CNC machining to guarantee structural strength and long service life. The surface undergoes sandblasting and anodizing, offering a refined touch, outstanding appearance, and a balance of durability and premium quality.
Precision Machining and Bearing Design
* Key load-bearing and moving parts are precisely machined and equipped with bearings, ensuring stability and durability under heavy loads and extended use.
Multi-Scenario Deployment
* Competition-grade mounting and ready-to-use solutions.
* Compatible with all mainstream aluminum profile brackets and integrated stands.
* Includes a wall-mount bracket by default to support floor installation (with anti-slip silicone pads).

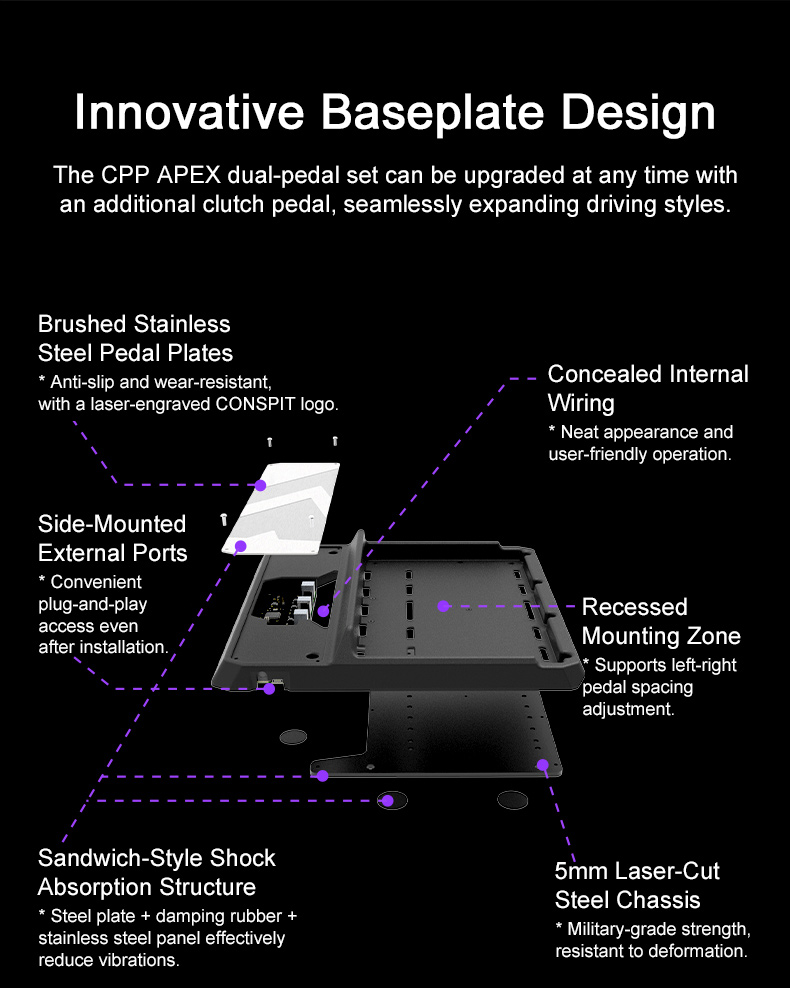

Expandable Clutch Pedal (Optional)
* The CPP APEX dual-pedal set can be upgraded at any time with an additional clutch pedal, seamlessly expanding driving styles.

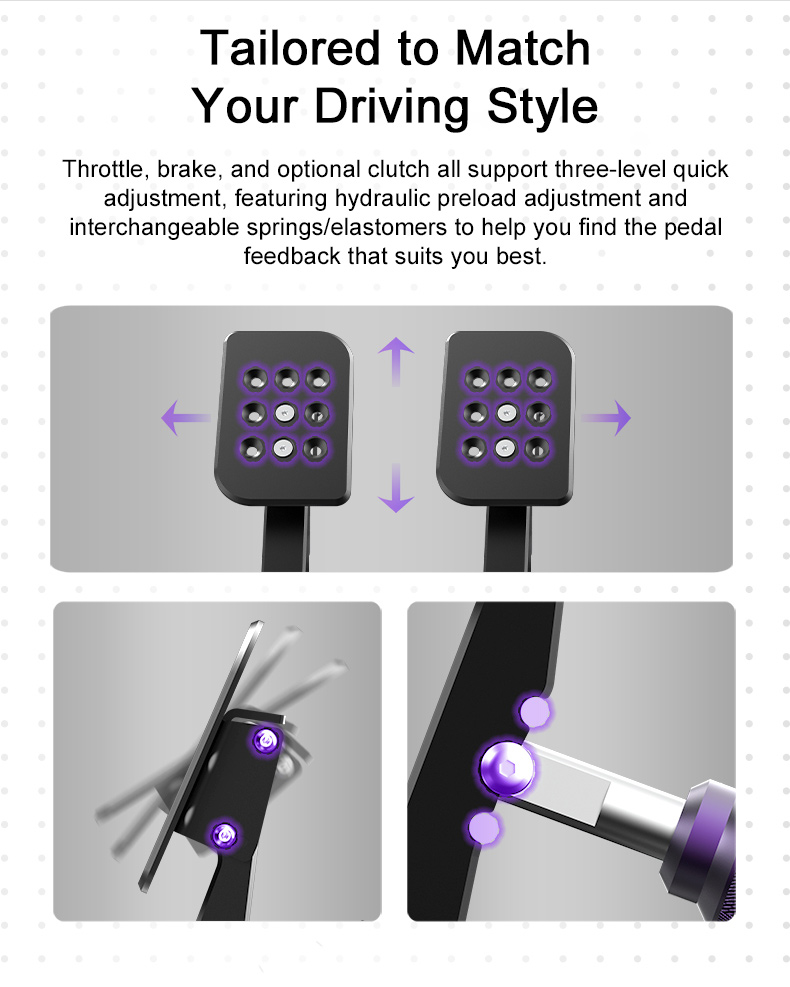

Tailored to Match Your Driving Style
* Throttle, brake, and optional clutch all support three-level quick adjustment, featuring hydraulic preload adjustment and interchangeable springs/elastomers to help you find the pedal feedback that suits you best.
Conspit Link 2.0 Software
* It enables users to quickly configure settings. The software supports custom mapping curves, brake input limits, and other functions, making personalized tuning easier and optimizing the driving experience.
Flexible Connectivity
* The CPP APEX can be directly connected to a PC via USB data cable, or integrated into the system through the rear port of the Ares series wheel base, providing a more convenient and seamless sim racing ecosystem experience.
Specifications:
* Product Name: CPP APEX Hydraulic Brake Pedal
* Sensor Type: Hydraulic Sensor
* Sensor Range: 0-100 Bar
* Adjustable Travel: Supported
* Adjustable Force: Three-level adjustment for each pedal
* Hydraulic Cylinder: Standard configuration with adjustable preload
* Clutch Pedal: Optional
* Vibrator: Optional
* Position Adjustment: Adjustable pedal spacing and pedal surface angle
* Product Material: Aluminum alloy, carbon steel
* Included Accessories: Warranty card, user manual, tool kit, screw pack, stickers, adjustment wrench, maintenance consumables, wall-mount bracket, anti-slip silicone pads
Packing List:
* 1 × 2-Pedal Set
Packaging Details:
* Weight: 8kg
