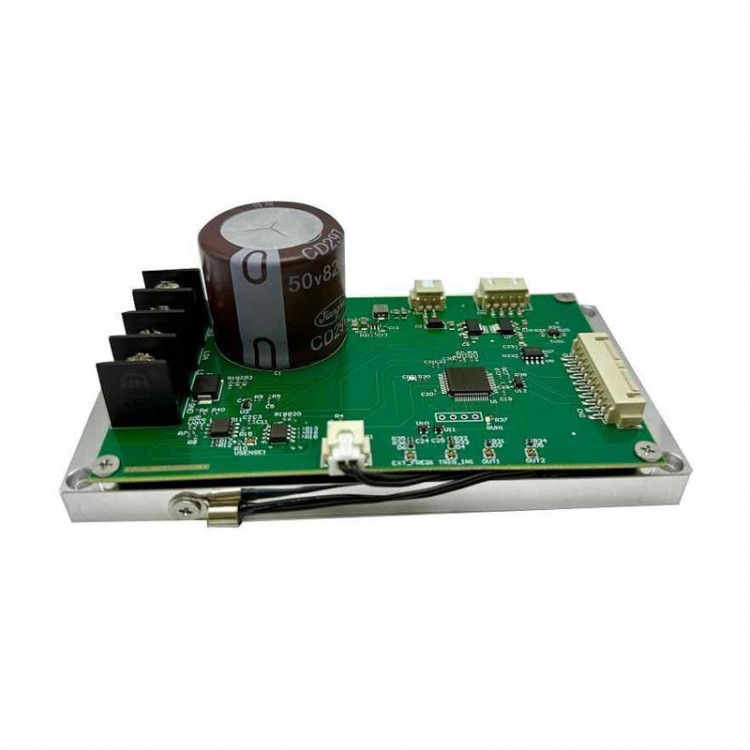

Constant Current Laser Diode Driver High-power LD Laser Diode Power Supply (LP4250A 42V 50A) LP4250

Constant Current Laser Diode Driver High-power LD Laser Diode Power Supply (LP4250A 42V 50A) LP4250

Description:
It is a high-power laser diode pulse driver power supply. It can operate in pulse current mode. In addition, the current amplitude, repetition rate, and pulse width can be easily configured by the host computer, and the current can be up to 8A/20A/50A (optional). The serial communication interface allows users to configure operating parameters and monitor operating status. This module also provides communication protocols for integration into the users' systems. Small size makes it ideal for use in laser systems.

Features:
* Internal pulse width 200us~300us adjustable
* Internal frequency 1Hz~1KHz
* LD supply voltage≤48V
* Optional pulse current: 8A/20A/50A
* Supports over-current detection
* NTC temperature measurement and over-temperature detection
* Switchable internal trigger mode and external trigger mode
* One-way LVTTL synchronization signal output
* One-way LVTTL delay signal output
* Control circuit is powered by 15V power adapter (or by LD power supply, with a voltage of 15V~42V)
* RS485 serial communication and optional LVTTL serial port
* Grid type terminal block, 10mm/0.4" spacing
* PC software to adjust parameters
* Historical parameters can be set and saved
* PCBA size: 120mm x 70mm x 30mm/4.7" x 2.8" x 1.2"; size of aluminum base for heat dissipation: 136mm x 70mm x 10mm/5.4" x 2.8" x 0.4"

Specifications (LP4250):
* Model: LP4250
* Trigger input: LVTTL/LVCMOS input; rising edge trigger and maximum input: +3.3V
* Trigger pulse width: 20ns (min)
* Trigger frequency: 0~1KHz (external edge trigger pulse); 1Hz~1KHz (internal edge trigger pulse)
* Pulse width: 200us to 300us, with a resolution of 200ps
* Trigger intrinsic delay: 200ns nominal
* Current output: pulse current 8-50A
* Current resolution: 20mA
* Voltage output: Adaptive
* Rising/Falling edge: Typically less than 10us; rising/falling edge depends on later electrical parameters
* Time jitter: <25ps RMS
* Current ripple: <1%
* Control:
  · COM baud rate: 115200
  · Software configuration: laser on/off
  · Current, pulse width, internal trigger frequency, single trigger, and burst trigger
* Power supply: Powered by a 15V/2A power adapter (or by a LD power supply, with a voltage of 15V~42V)
* Interfaces:
  · POWER1: Barrier terminal block, 10mm pitch, 4pin, LD power supply input and output
  · CN1: Wire-to-board terminal block, 2.5mm pitch, 4pin, logic power supply and serial port communication
  · EXT_FREQ1: IPEX4 RF interface, external frequency input (external frequency mode)
  · OUT1: IPEX4 RF interface, synchronous electrical pulse output
  · OUT2: IPEX4 RF interface, delay pulse output
* LED indication: green for running, while red for error
* Size:
  · PCBA size: 120mm x 70mm x 30mm/4.7" x 2.8" x 1.2"
  · Size of aluminum base for heat dissipation: 136mm x 70mm x 10mm/5.4" x 2.8" x 0.4"

Package Included:
* 1 x Set of Laser Diode Driver Power Supply

Packaging Details:
* Weight: 0.5kg
