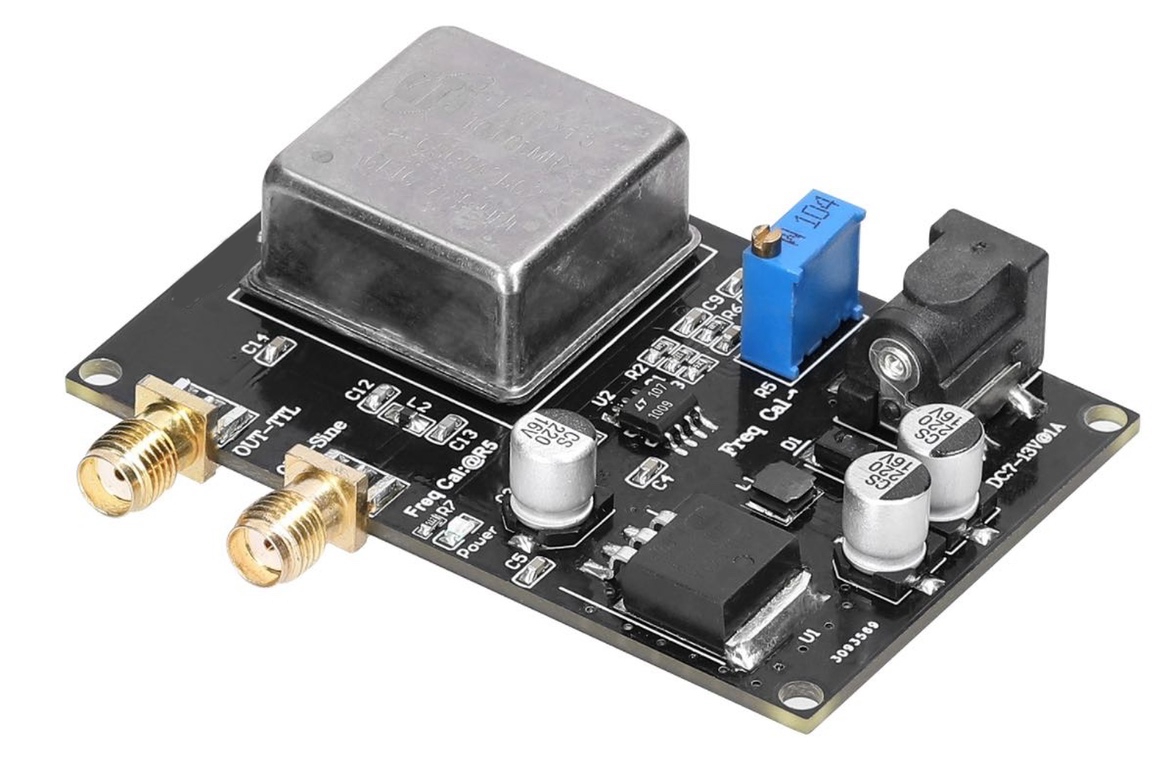

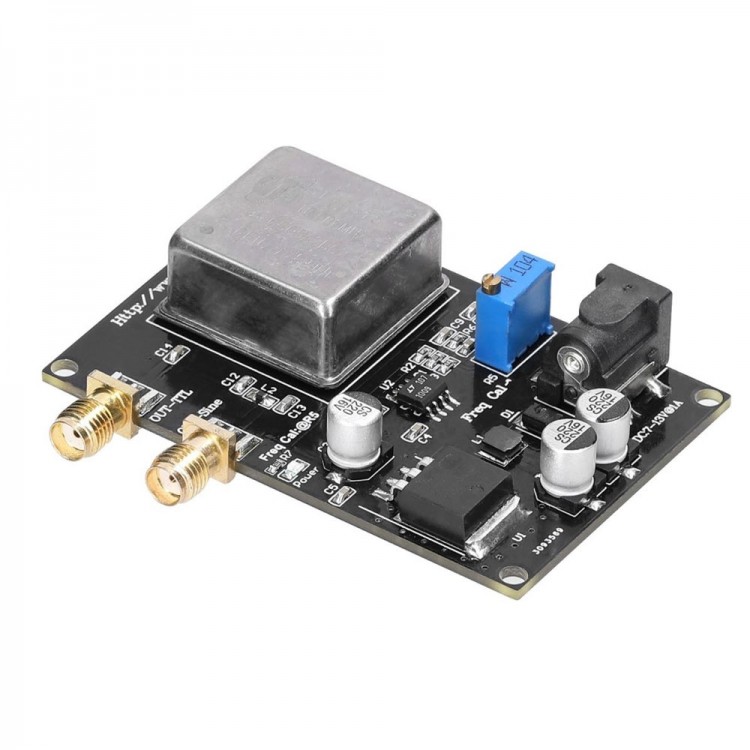

Constant Temperature 10MHz OCXO Frequency Reference Source Module Sine Wave Square Wave Frequency Trimming
Specification:
- Power consumption: warm-up stage < 750mA; working stage <300mA
- Warm-up time: about 5 minutes
- Calibration precision: ±0.01Hz
- Frequency stability: 5e - 12
- Output level: dBm: 10dBm±2dBm at 50ohm
- VRMS: 0.7071V at 50ohm
- VPeak: 1.0V at 50ohm
- VP-P: 2.0V at 50ohm
- Output impedance: 50ohm
- Interface type: SMA - K (female)
- Application: constant 10MHz, ultra-low phase and noise, frequency reference module, frequency reference source, OCXO frequency reference source, which is applicable to the reference of speaker system, decoder, shortwave radio, frequency meter, signal source and other instruments.
Package Included:
- 1 x Module
